Shimpo DT-315AX Digital Stroboscope without Battery Pack or Charger, 40 - 35,000 FPM

See More Stroboscopes

Shimpo DT-315AX Digital Stroboscope without Battery Pack or Charger, 40 - 35,000 FPM

See More Stroboscopes
Call for price
    warrenty

    Product Description

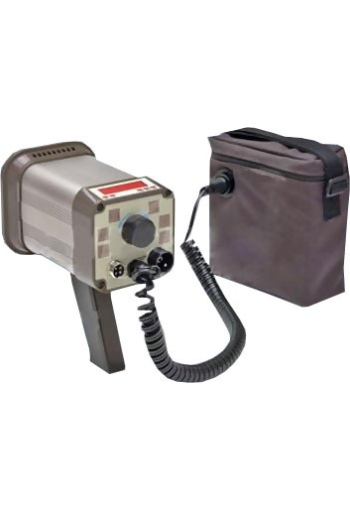

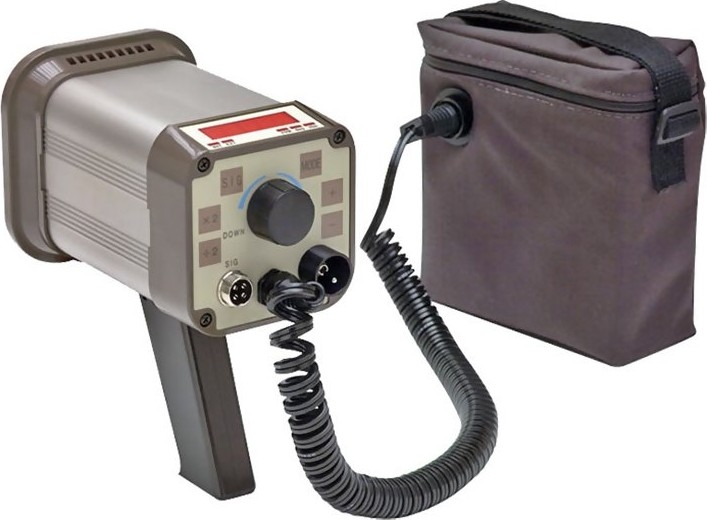

    Shimpo DT-315AEB Digital Stroboscope, 40 - 35,000 RPM / FPM


    Type: Digital Stroboscope with External Battery
    Range: 40 - 35,000 RPM/FPM

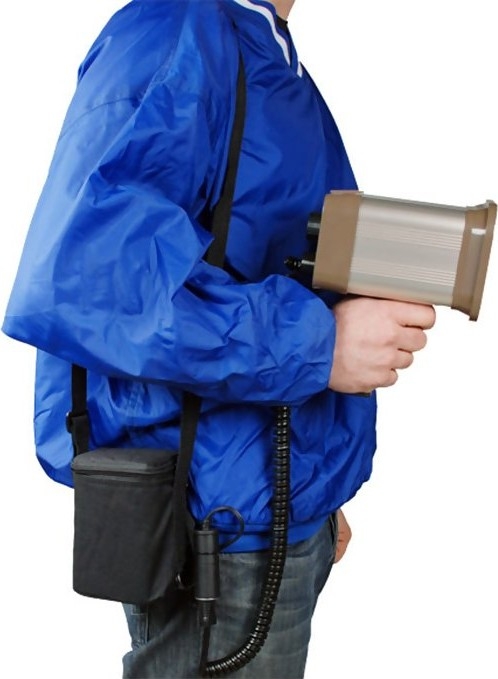

    Power: External Battery

    Flash Range: 40-35,000 RPM/FPM

    The Shimpo DT-315AEB Digital Stroboscope is a portable, highly stable and accurate, industrial-quality tools for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the action


    line
    Features
    line

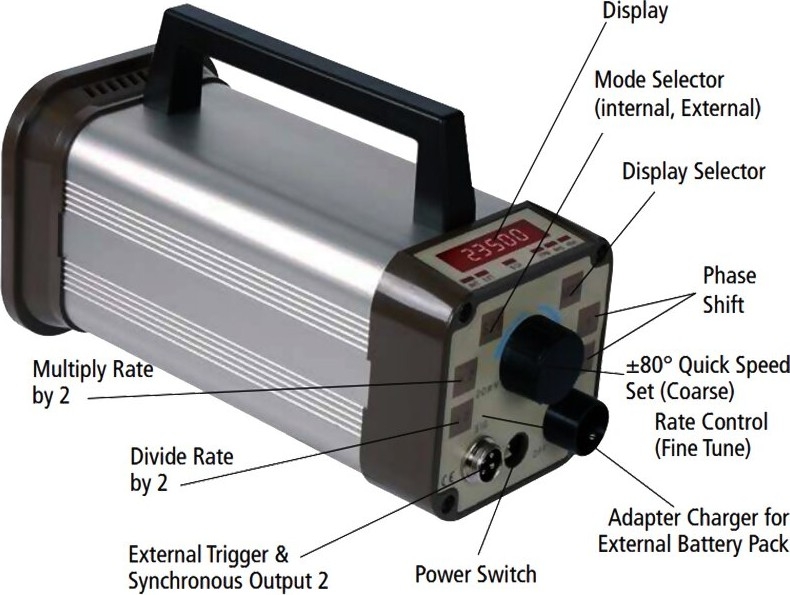

    • Highest accuracy and most stable flash rate
    • Accepts external trigger input and provides synchronizing pulse output

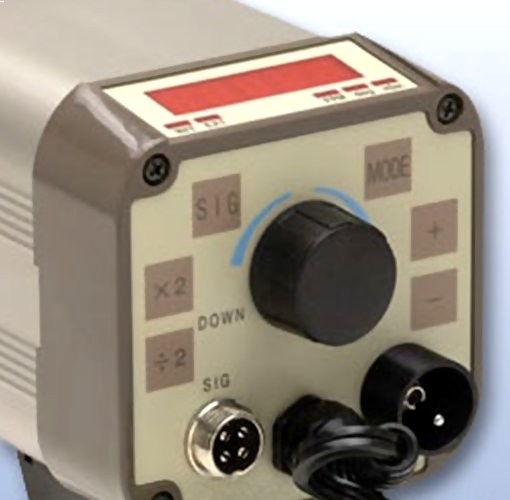

    • Easy-to-read LED display
    • Phase shift for best view and flash photography
    • Easy-to-operate controls
    • Flash rate control

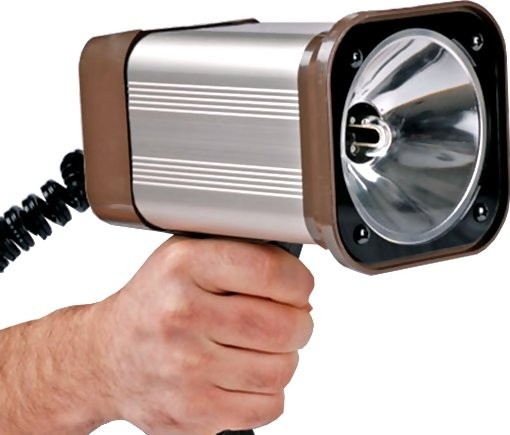

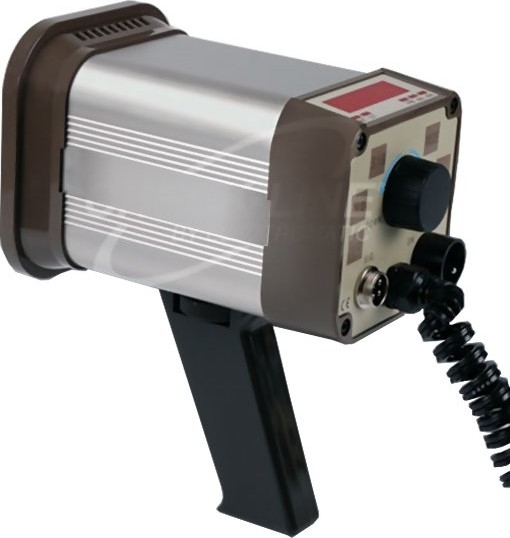

    • Detachable pistol-grip handle
    • Instant double and half-rate flash selection for error-free reading
    • Provides 12 V DC power for external sensors


    line
    Specifications
    line

    Flash Range40-35,000 FPM
    AccuracyInternal Mode: ±0.01% of reading
    External Mode: ±0.01% or ± 1 digit
    Resolution0.1 FPM: 40.0 - 4,999.9 FPM
    0.2 FPM: 5,000 - 7,999.8 FPM
    0.5 FPM: 8,000 - 9,999.5 FPM
    1 FPM: 10,000 - 35,000 FPM
    Drift±0.01% per °C
    Update TimeInternal Mode: 0.2 seconds
    External Mode: ±0.01% or ± 1 digit
    Input SignalLO level: 0-0.4 VDC
    HI level: 2.5 - 12 VDC -- or open collector (npn)
    pulse width 50us min
    Output SignalSynchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
    Display & RateDivide or multiply by 2, selectable
    Operating Temperature32-104 °F (0-40 °C)
    Display5 digits, 10 mm high, red LED
    FlashtubeXenon, 10 W maximum
    Flash Duration10-30 µs
    Sensor Power Supply12 VDC ± 0.5V (50ma)
    Power RequirementsExternal Rechargeable 12 V battery
    Includes Battery Charger 115V AC (DT-315AEB) or 230V AC (DT-315AEB-2)
    Weight4.4 lbs. (2 kg)
    Dimensions4.7 x 5.6 x 9.7" (120 x 141 x 248 mm)
    Warranty1 Year
    EXTERNAL MODE ONLY
    Phase Shift0 - 359° with 1° resolution or
    0 - 333 ms from 200 - 3,000 FPM
    Input Impedance10,000 ohms


    line
    Downloads
    line

    Shimpo DT-315AEB Digital Stroboscope - Data Sheet
    Shimpo DT-315AEB Digital Stroboscope - External Connectors
    Shimpo DT-315AEB Digital Stroboscope - Instruction Manual
