Shimpo DT-315P NEMA 4X Stroboscope for Harsh Usage

See More Stroboscopes

Range: 40 - 60.0 ~ 3,000 FPM

Power: Internal Battery

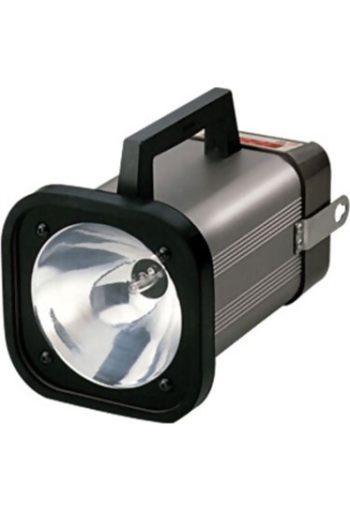

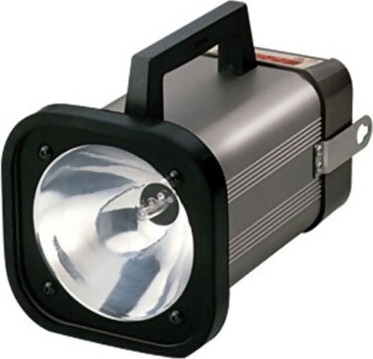

The Shimpo DT-315P is a rugged, sealed NEMA 4X (IP65) Stroboscope suitable for working in areas without AC power. The DT-315P works just like the DT-315A battery operated strobe. Equipped with Phase shifting in angle of delay (0-359 degrees) and flash time delay, (0-300 mSEC) the DT-315P is engineered for checking timing and wear on rotating and reciprocating machinery. With its rugged, metal body and NiCd rechargeable battery, the DT-315P provides the maintenance and quality professional a rugged, accurate strobetach for inspection on presses, conveyers, gear reducers, chain drives, fuel injectors, paint spray patterns, and many other harsh environment, industrial applications

line
Features
line

Extruded aluminum, NEMA 4X construction: Extraordinary durability yields long service life
Internal battery supply: Lightweight; enables easy portability
Repeatable accuracy (± 0.01% of reading): Fully meets the strictest tolerances
Phase shift (in degrees of delay time): Enables visual analysis of rotating/reciprocating objects through all points of motion/time/angle
Flash timer control: Prolongs flash tube life
Manual flash controller knob: Permits easy/accurate adjustments to flash rate
Continuous duty cycle: Eliminates downtime waiting for unit to cool
Highly polished focused reflector: Prevents "blind" viewing areas

line
Specifications
line

INTERNAL MODE
Display	5 digit, 7 segment red LED (Character height 10mm)
Flashtube	Xenon lamp TFU-100B-A32
Flashtube Power	Max. 10W
Flashing Time	Approx. 30 µ sec
Power	Battery: Nicd battery, 8KR – 2000 sce SANYO, Operating time: Approx. 1 hour (full charge at 3000 FPM); Battery Charge Time: Approx. 10 hours Do not operate over 10 hours continuously External power: Disconnect the built-in battery before operating instrument by external power) DC9 14.5V, Max. 24W (current consumption is 24W/input voltage) or operate by provided adapter; AC115V 10%, 50/60 Hz Max. 40VA
Operating Temperature	32 to 104 ° F (0 to 40 °C)
Power Requirement	Power Plug & Cable for Recharging Battery Included
Dimensions	5.11" W x 6.22" H x 10.20" L (130 W x 158 H x 259 L mm)
Weight	4.6 lbs (2.1 kg)
Warranty	2 Years
Included Accessories	Input/Output signal plug, rechargeable battery with AC adapter, protective case
Flashing Range	60.0 ~ 3,000 FPM
Display Accuracy	±0.01%
Drift	± 0.01 (at 0 ~ 40 °C)
Phase Shift	Use +/- push buttons (360° in 6 seconds)
Display Update Time	0.2 sec approx
Output Signal	Approx. 12V
Other Functions	÷2. x2 Flashings, Phase shift adjustment
EXTERNAL MODE
Flashings	Synchronous Mode: 60.0 ~ 3,000FPM Delay mode: 200 ~ 3,000 FPM
Delay Angle Setting Range	Delay Mode: 0 ~ 359°, Set by 1°
Display	RPM, Synchronous mode: 60.0 ~ 3000FPM Delay Angle, Delay mode: 0 ~ 359° or 0 ~ 300mS conversion display
Display Accuracy	Synchronous mode: ± 0.01% plus ± 1 digit Delay mode:+ 0 -0.2mS plus ± 1 digit
Update Time	1 per second
Input Signal	H Level:2.5 ~ 12V L level:0 ~ 0.4V 50 μs or over for H.L. level Trigger at rising edge Approx. 10Ω impedance
Sensor Power	Battery:6.8 ~ 11.0V Adapter:10.2 ~ 12.2V DC:9 ~ 14.5V : 7.8 ~ 14.1V Max. 40mA (including max 0.6V Ripple)
Setter	Flashing, Delay angle: Jog Shuttle Mode, Display Unit: Tact Switch
