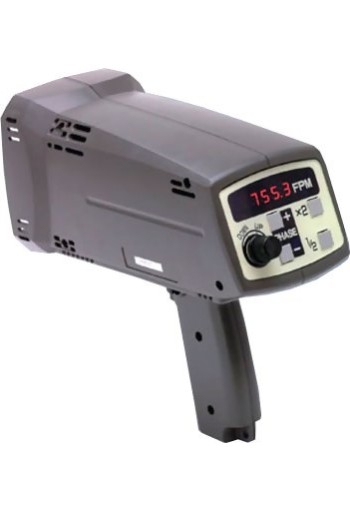

Shimpo DT-721 Digital Stroboscope

See More Stroboscopes

Type: Digital Stroboscope with Internal Battery

Range: 40 - 35,000 RPM/FPM

Power: Internal Battery

The Check-Line DT-721 Digital Stroboscope is a highly stable, industrial-quality instrument for non-contact RPM measurement as well as for inspection and observation of moving parts by "freezing" or "slowing down" the action.

A "Kit" option is offered which also includes a carrying case and spare flash tube at minimal additional cost.

line
Features
line

Highly accurate speed control with drift-free operation
Easy-to-use controls with bright LED display
Instant double (2x) and half-rate (÷2) flash selection
Accepts input from sensor for external flash triggering
Phase shift adjustment permits movement of objects to desired position for convenient observation
Extremely lightweight and rugged

line
External Trigger Input Signal
line

12 - 24 V DC through a 3-wire NPN sensor (requires external power supply)
12 V DC through a 2-wire proximity sensor (Leakage Current 1 mA max. Load current 8 mA min.)
Switch or Relay Contact

line
Complete Kit
line

Optional Complete Kit is offered which also includes a carrying case and spare flash tube at minimal additional cost

line
Dimensions
line

line
Specifications
line

Flash Range	40.0 - 12,500 FPM
Accuracy	± 0.02% of reading
Resolution	(0.1) 40.0 - 4,999.9 (0.2) 5,000.0 - 7,999.8 (0.5) 8,000.0 - 9,999.5 (1.0) 10,000.0 - 12,500.0
Display	5-Digit LED, 8 mm high
Flash Tube	Xenon, 10 watt
Tube Life	100 million flashes
Flash Duration	10 - 15 µs
Signal Output	NPN Open Collector, 24 VDC max.
Phase Shift	0 - 359° (Internal Mode)
Operating Temp	32 to 105° F (0 to 40° C)
Weight	1.50 lbs. (680 g)
Power Requirements	115 VAC ± 10%, 50/60 Hz
Warranty	1 years

line
Downloads
line

DT-721 Digital Stroboscope - Data Sheet

DT-721 Digital Stroboscope - Instruction Manual
