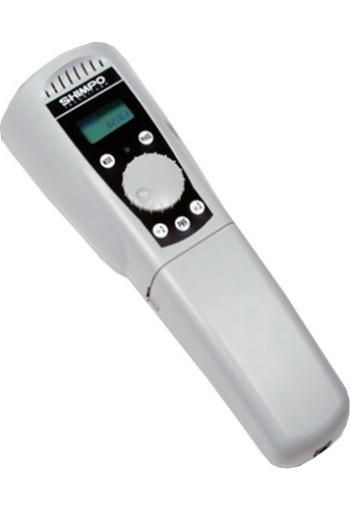

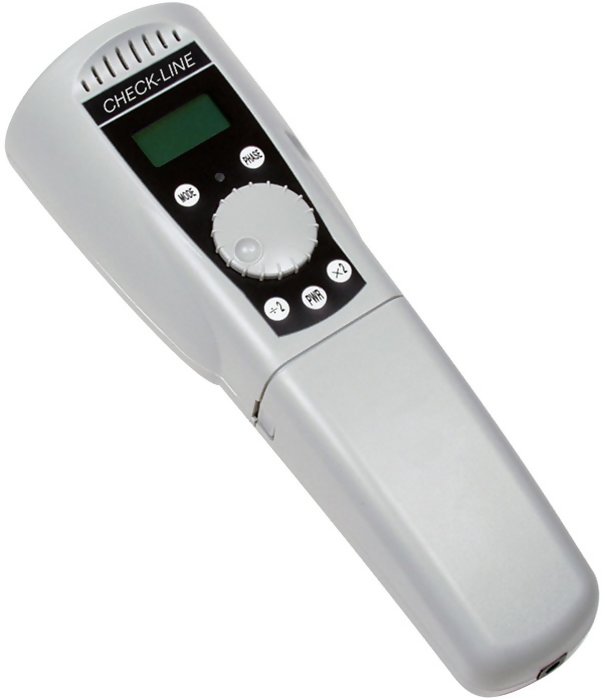

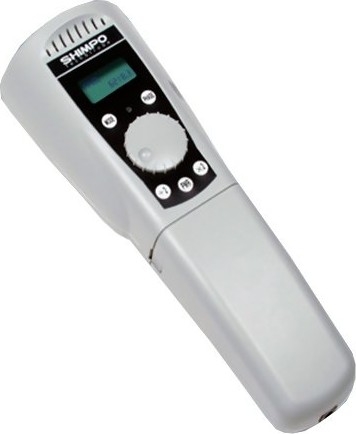

Shimpo DT-900 Digital Pocket Stroboscope

See More Stroboscopes

Shimpo DT-900 Digital Pocket Stroboscope

See More Stroboscopes
This product has been discontinued

Product Description
The DT-900 Digital Pocket Stroboscope has been discontinued
Shimpo DT-900 Digital Pocket Battery Powered Stroboscope

30 - 12,500 RPM/FPM and higher using harmonics

The Shimpo DT-900 Digital Pocket Stroboscope™ is a highly stable instrument for taking non-contact RPM measurements and inspecting moving parts by “freezing” or “slowing down” the action.

The DT-900 requires only one hand to operate, yet delivers performance comparable to much larger and heavier “pistol-grip” type models.

The DT-900 is ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value — at a reasonable price.

The DT-900 Techstrobe series is offered in various configurations to fit the exact needs of the user. Models include DT-900, DT-900-TR , DT-900-UT, DT-900-PR and DT-900-UP. Refer to the BUY NOW section below for complete details and prices.

line
Features
line

  • Easy to use with just one hand
  • "LOW BAT"appears in the display if the energy becomes less.
  • Resolution of 0.1 Flashes per minute.
  • The changeable NiMH battery powers the stroboscope 1-2,5 hours.
  • NIST-Traceable calibration certificate & test report optionally available

line
Specifications
line

Flash Range 30 - 12,500 fpm
Accuracy ± 0.01%
Resolution 0.1 fpm
Operation modes Flashes with internal trigger
FLashes with external trigger
Tachometer
Display 8 digits, 15 mm high
Flashtube Xenon 10 W / white 6500 K
Flash Duration 10 - 15 µs / approx. 400 lux
Flash life 100 mill. flashes
Phase Adjustment 5° per increment
Input signal 0.25 - 983.3 Hz
Output signal 0.667 - 108.333 Hz
Extern trigger 5 V TTL Signal
Power 100-240 V DC quick-change battery
Housing Polycarbonate
Tripod mounting 1/4 - 20unc, length 8 mm
Weight 1.4lb (620 g)
Temperature range 50 - 95° F (10 - 35° C)
Warranty 1 years
Dimensions 9.6" x 2.6" x 3.1" (24.5 cm x 6.5 cm x 8 cm)


line
Complete Kit
line

The DT-900 is supplied as a complete kit including stroboscope, rechargeable battery pack, battery charger with exchangeable plugs, spare flash tube, operation manual, carrying case with foam insert and space for additional rechargeable battery

complete kit

line
Downloads
line

Shimpo DT-900 Digital Pocket Stroboscope - Instruction Manual
