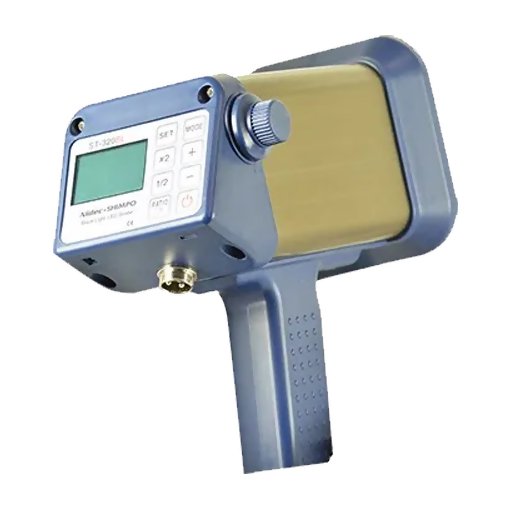

Shimpo ST-320BL Black Light LED Stroboscope (UV Strobe)

---

Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz), user adjustable

---

"x2" and "1/2" keys to quickly "double" or "half" the flash

---

1/4-20 UNC threaded bushing for permanent mount applications

---

AC and Battery-powered models are available

---

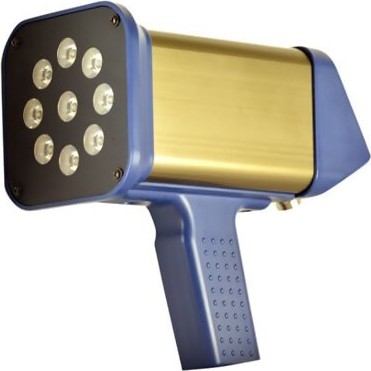

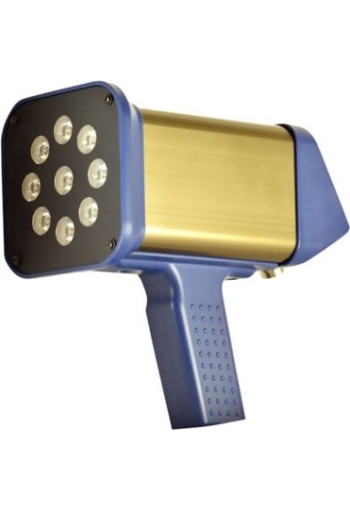

The new Shimpo ST-320BL Black Light LED Stroboscope provides light in the Ultraviolet spectrum required to illuminate UV Inks used in security tags, watermarks, labels and more. The ST-320BL can be used as a hand-held portable strobe or fixed-mounted for continuous use. It features long-life LEDs that provide even light distribution and don't require replacement like conventional xenon type strobes.

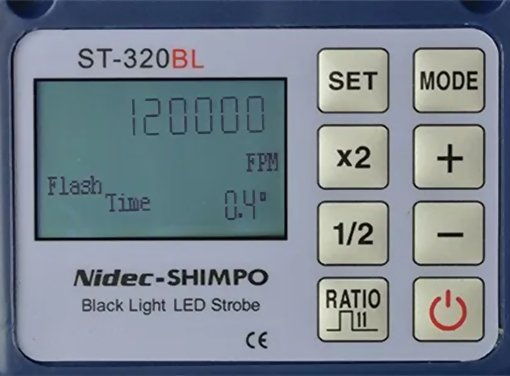

Operation is simple using an 8-button keypad and quick rate adjustment dial, combined with large, backlit LCD display. Phase shift, flash duration and flash rate are all quickly adjustable. It also features "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency. The unit can be externally-triggered from a remote sensor. The Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application.

Three models are offered; the ST-320BL-2 battery-powered version if offered with built-in rechargeable batteries supplied with a universal charger for use world wide, the ST-320BL-1 is AC-Powered for use on 115V AC and the ST-320BL-1-230V for use on 230V AC.

Kit Contents

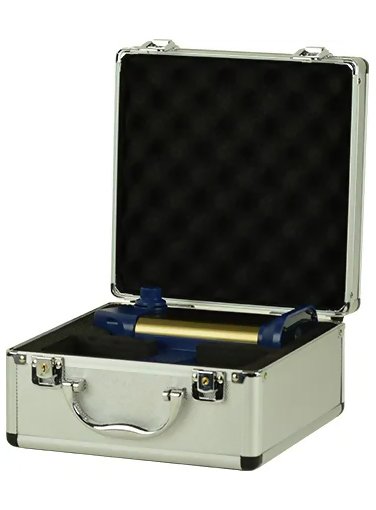

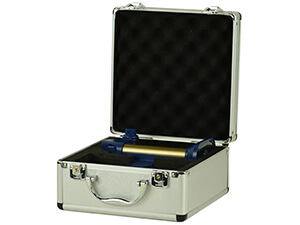

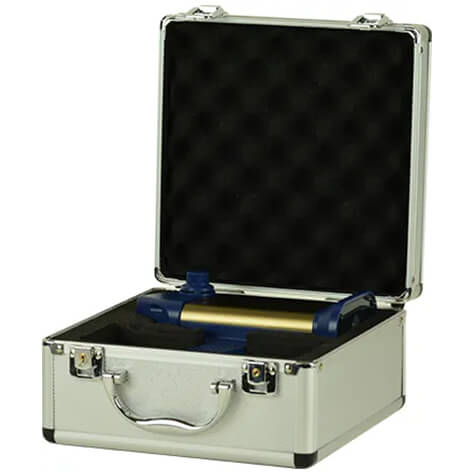

Shimpo ST-320BL Black Light LED Stroboscope Power Recharging Adapter with cord Instruction manual Carrying Case

Features

• Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz)

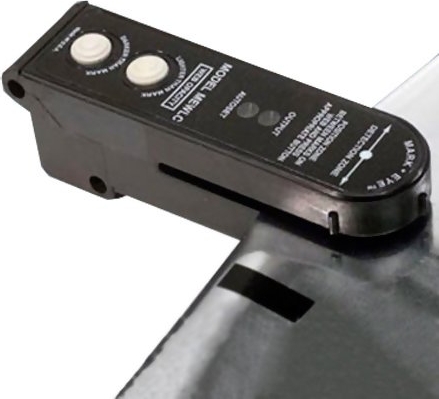

• Flash rate can be set via controls on strobe or externally-triggered from a remote sensor
• "x2" and "1/2" keys to quickly "double" or "half" the flash rate to identify the correct flash frequency
• 1/4-20 UNC threaded bushing for permanent mount applications (remove trigger handle)
• User selectable units of FPM (Flashes/Min) or Hz
• Backlit LCD Dispay useful in low ambient lighting conditions
• User-selected flash durations provides optimal settings for image sharpness/brightness
• Battery-powered model ST-320BL-2 can operate continuously from supplied AC-Adapter/Charger

Specifications

Flash Rate Range	60 to 120,000 Flashes/Min (1-2000 Hz)
Accuracy	0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp Lifetime	Approximately 3~5 years depending on usage
Display	Backlit LCD
Resolution	60 ~ 12,000 FPM = 0.1 FPM 12,001 ~ 120,000 FPM = 1 FPM 1 ~ 200 HZ = 0.01 Hz 201 ~ 2000 = 0.1 Hz
Flash Duration	0.1°- 2.5°
Phase Shift	0-359°
Power Required	ST-320BL-1 (115V AC) ST-320BL-1-230V (230V AC) ST-320BL-2 (Rechargeable Battery supplied with Universal Charger 100-240V AC)
Battery (ST-320BL-2)	Lithium DC 10.8V 2000mA
Battery Life (ST-320BL-2)	Approx. 12 hrs depending on setting
Input Signal	12 V Pulse Input; 3 pin M-12
Input Signal Range	60-120,000 FPM (1-2000 Hz)
Input Pulse Width	Over 50 μs
Input Signal Flash Delay	0-999 ms; 0-359° (user-set)
Temperature Limits	32-95°F (0-35°C)
Humidity Limits	35 to 85% RH
Approvals	CE
Warranty	1-Year
