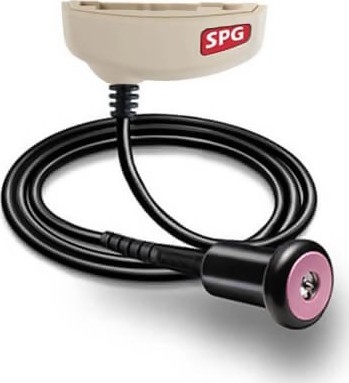

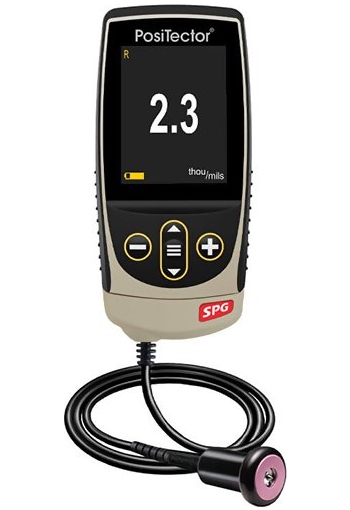

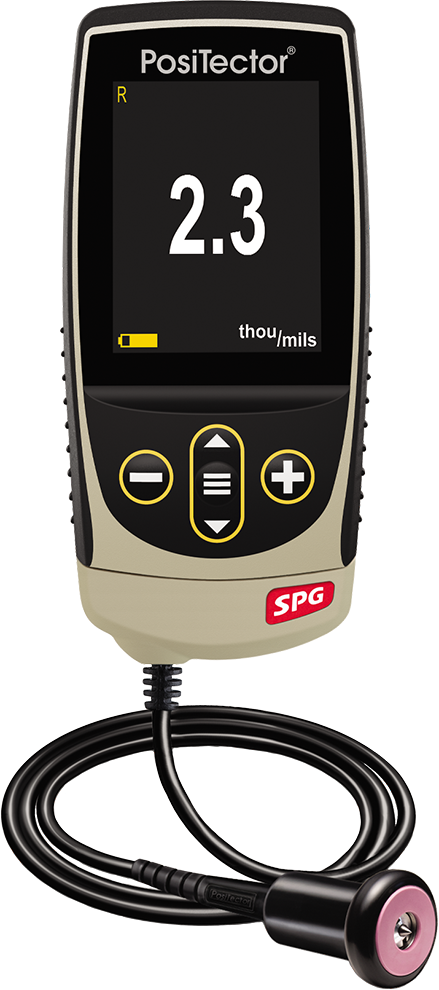

DeFelsko SPGS1 PosiTector SPG S1 Standard Surface Profile Gage with PRBSPGS Cabled Probe for Blasted Steel, Range: 0 to 500 um (0-20 mils)
Measures and records peak to valley surface profile heights
Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others

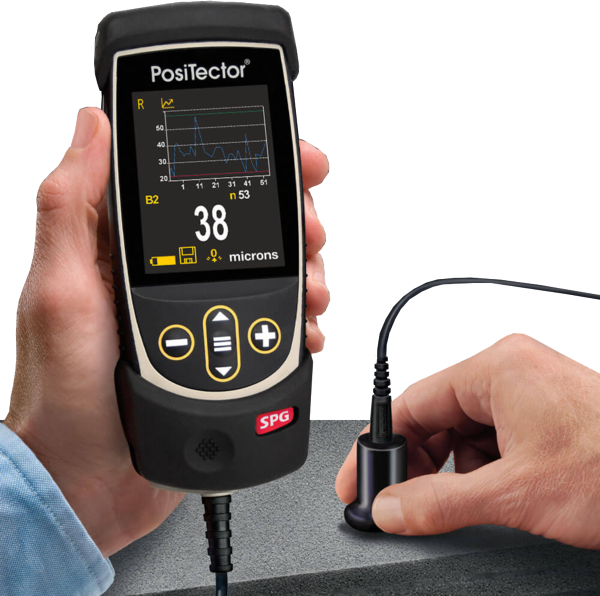

The DeFelsko SPGS1 PosiTector SPG S1 Standard Surface Profile Gage is a precise, rugged tester designed to measure and record peak to valley surface profile heights on blasted steel.
Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip), U.S. Navy NSI 009-32, SANS 5772 and others.

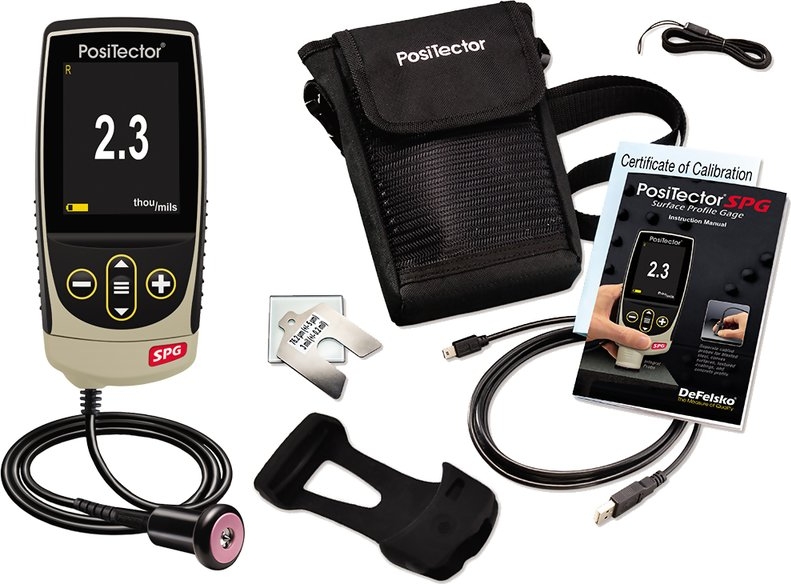

Kit Contents
The DeFelsko PosiTector SPG S1 Standard Surface Profile Gage Kit includes everything needed for testing:
- PosiTector Standard Gage Body BDYSTD
- PosiTector SPG Probe PRBSPG
- Glass Zero Plate and Metal Check Shim(s)
- Protective Rubber Holster
- Wrist Strap and Protective Lens Shield
- 3 AAA Alkaline Batteries
- PosiSoft Software and USB Cable
- Long Form Certificate of Calibration Traceable to PTB
- Protective Carrying Case and Instructions
- Two (2) Year Warranty
|  |
Features
Simple
- Fast measurement rate of over 50 readings per minute—ideal for quickly and accurately measuring large surfaces
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable
- Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable tips
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Rugged, indoor/outdoor instrument - ideal for field or shop use
- Shock-absorbing protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to PTB included
- Built-in temperature compensation ensures measurement accuracy
- Glass Zero Plate and metal check shim included
- Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17
Versatile
- PosiTector body accepts all PosiTector SPG, RTR, 6000, 200, DPM, IRT, SST, SHD, BHI, and UTG probes easily converting from a surface profile gage to a coating thickness gage, dew point meter, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
- 30º angle interchangeable probe tip available for special surface profile applications
- Cabled probes available for blasted steel, textured coatings, and concrete profile
- NEW Auto rotating display with Flip Lock

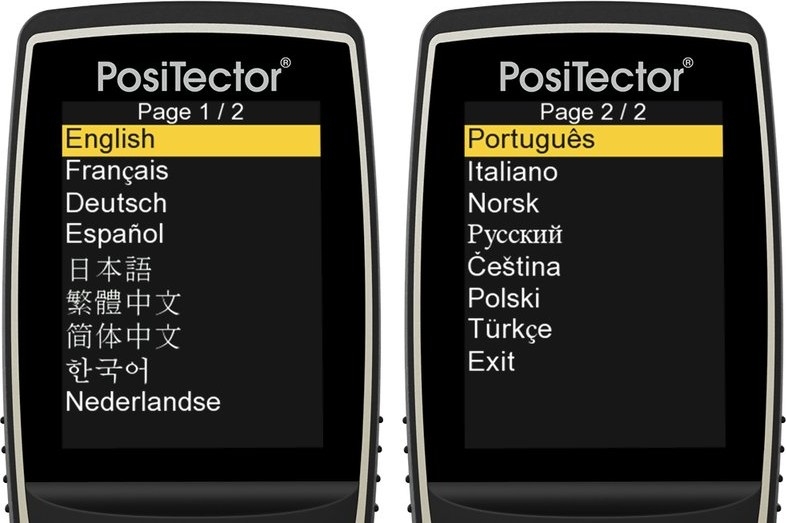

- Selectable display languages
- Mils/Microns switchable
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- NEW Screen Capture—save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life

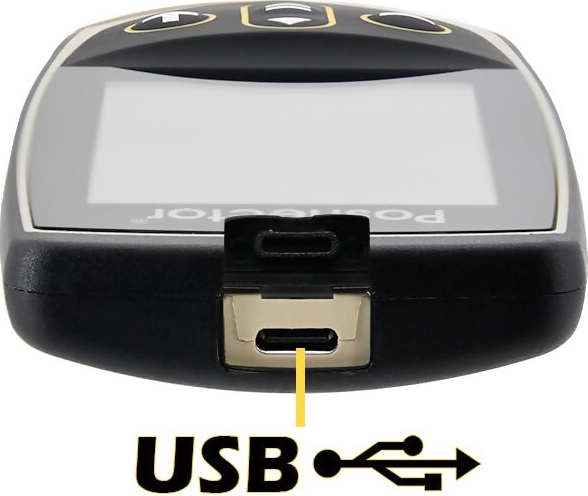

- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Includes PosiSoft Software for viewing and reporting data
- Software Updates via web keep your gage current
Advanced Models Features
Includes ALL features as shown above plus:
- NEW Storage of 1,000 readings per probe-stored readings can be viewed or downloaded
PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
FAQ's - Frequently Asked Questions
Click to View DeFelsko PosiTector SPG Frequently Asked Questions
Downloads
