Mark-10 SW-1 Data Acquisition Software: one channel model - collects force or torque data

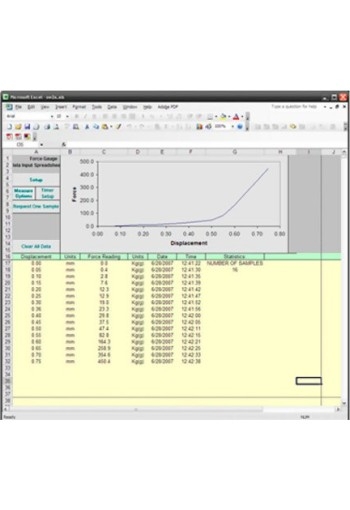

Mark-10 SW-2 Data Acquisition Software: two channel model - collects both force and displacement data (use with test stands equipped with digital distance meters)

Mark-10 SW-1 is a highly customized Excel spreadsheet specifically designed for capturing and analyzing real-time data from force gauges with a RS-232 port.

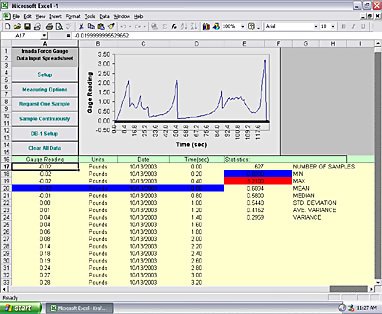

Mark-10 SW-1 allows real time data from RS-232 instruments to be input directly into any Windows program – including Microsoft Excel. SW-1 inputs gauge readings in real time and provides a running log of all force measurements along with a chart of the data as well as statistical information including Min, Max, Mean, Median, Standard Deviation, Average Deviation and Variance.

Complete control of the gauge is provided through a set of “buttons” on the spreadsheet that enable easy editing of the sampling rate, force measurement units, peak/real time, tare and power off.

Other features include a memory download option for Z2, Z2-DPU and Z2H gauges only. If desired, the entire stack can be saved to disk, analyzed or cleared. Because all data is entered directly into a standard Excel spreadsheet, you are virtually unlimited in your ability to analyze your force gauge data using all of the powerful tools available in Excel.

Hardware Requirements: Force Gauge with RS-232 serial port, serial cable, a Pentium or equivalent with 32MB RAM or better, a mouse and approximately 1 MB hard disk space.

Software Requirements: Windows 95, 98, ME, XP home or XP Pro, NT or 2000 and Excel ‘97, 2000, 2003 or XP

Features

• Full SPC and graphing capabilities
• Automates your data collection
• Provides a running log of all measurements along with a chart of the data as well as statistical information
