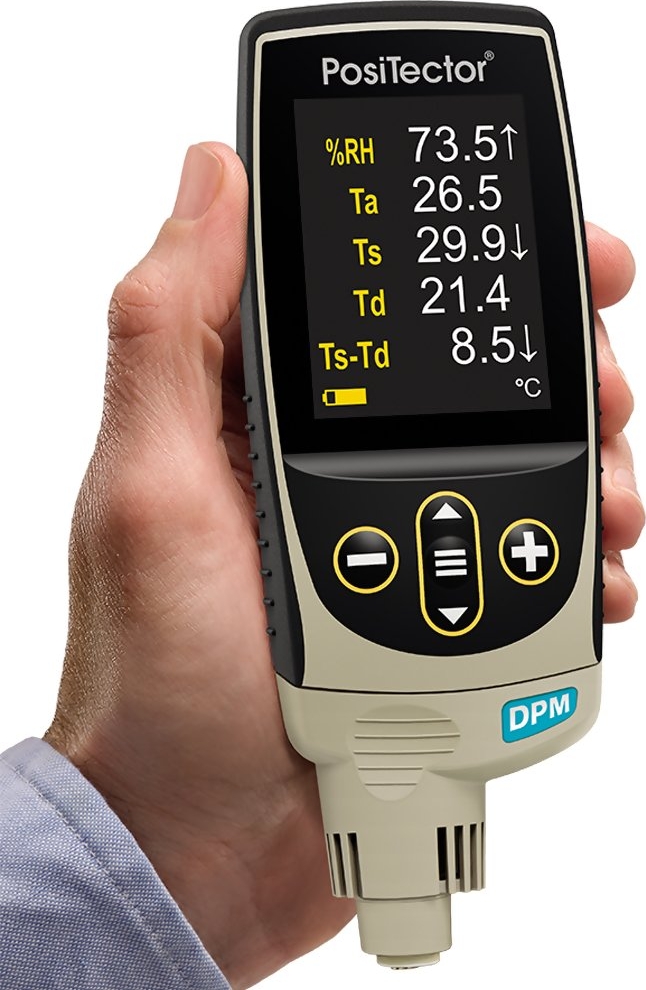

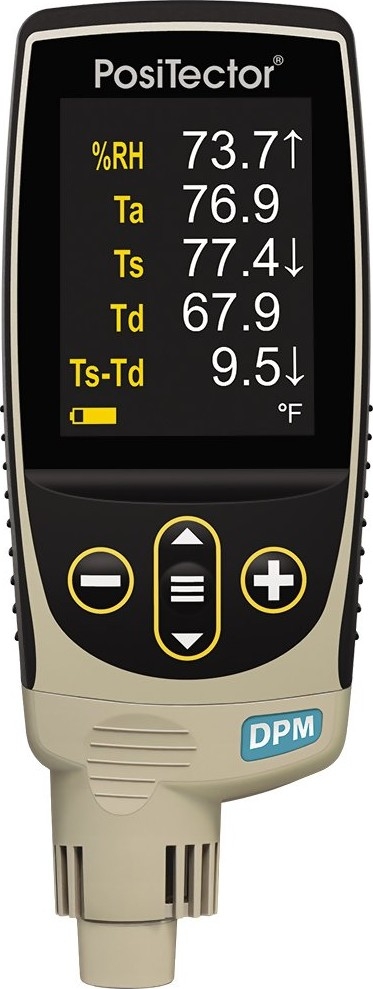

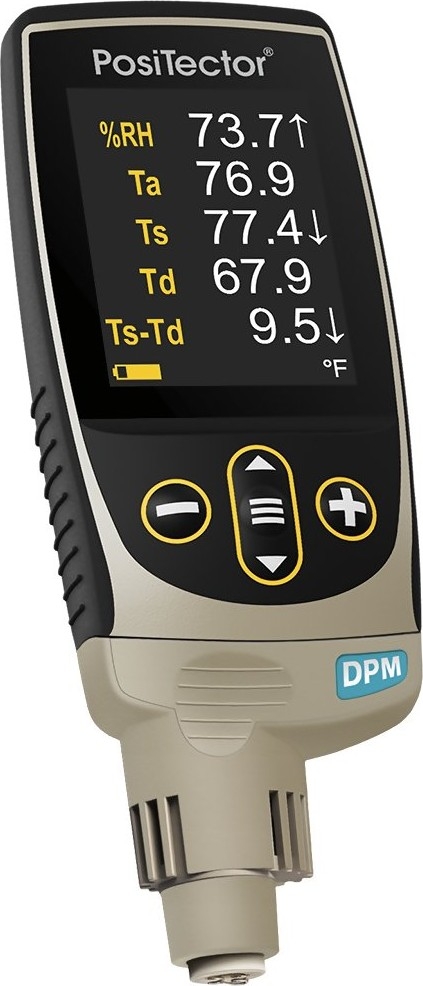

DeFelsko DPMIR3-G Positector DPMIR3 Advanced Dew Point Meter for Environmental Monitoring with PRBDPMIR-C Integral Probe with Infrared Surface Temperature Sensor

---

Universal body accepts all PosiTector SPG, DPM, UTG and 6000 probes

---

The DeFelsko DPMIR3-G Positector DPMIR3 Advanced Dew Point Meter for Environmental Monitoring with PRBDPMIR-C Integral Probe with Infrared Surface Temperature Sensor measures and records climatic parameters including: Relative humidity, air temperature, surface temperature, dew point temperature and difference between surface and dew point temperatures.

Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

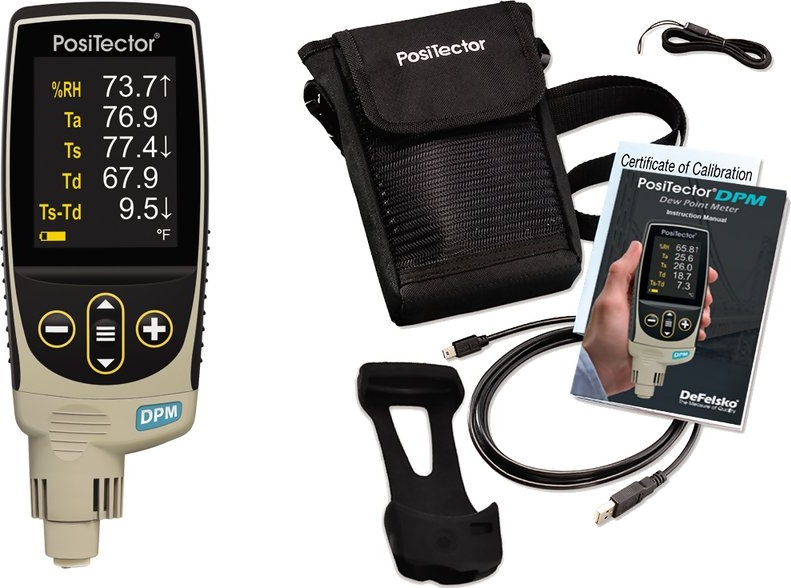

Kit Contents

The DeFelsko PosiTector DPM3 Advanced Dew Point Meters Kit includes everything needed for testing:

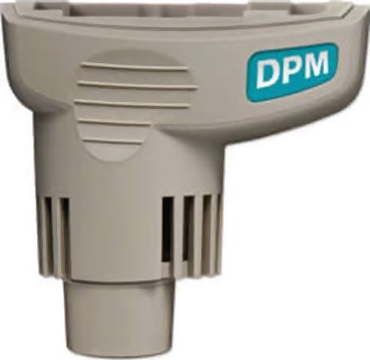

PosiTector Advanced Gage Body BDYADV PosiTector DPMR3 Probe PRBDPMIR Temperature Sensors Protective rubber holster with belt clip Wrist strap and protective lens shield 3 AAA alkaline batteries PosiSoft Software and USB cable Long Form Certificate of Calibration traceable to NIST Nylon carrying case with shoulder strap and instructions Two (2) year warranty

Features

Simple

• All readings are constantly updated and displayed simultaneously
• Alarms indicate when climate conditions are unsuitable for painting
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• No need to consult complex tables or use a slide rule calculator

Durable

• NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• NEW Ergonomic design with durable rubberized grip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe
• Accurate
• Fast response precision sensors provide accurate, repeatable readings
• SmartTrend™ Indicators identify rising, falling, or stable readings
• Certificate of Calibration included showing traceability to NIST
• Conforms to national and international standards including ISO and ASTM

Powerful

• NEW Screen Capture—save 100 screen images for record keeping and review
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life

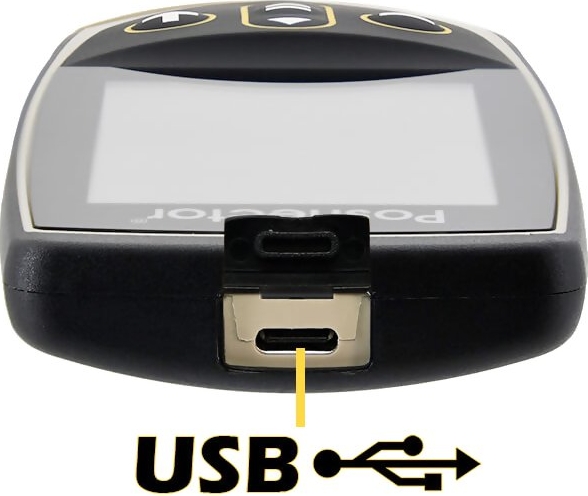

• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for viewing and reporting data
• Software Updates via web keep your gage current
• Every stored measurement is date and time stamped

Advanced Model Features

Includes ALL features as shown above plus:

• NEW Storage of 250,000 datasets in up to 1,000 batches
• Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals.
• User defined limits for all parameters—visible and audible warnings. Receive email alerts when connected to WiFi.
• Trend Charts graph readings in real-time
• NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
• Wet bulb temperature can be displayed and recorded
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Specifications

Specifications	Range	Accuracy	Resolution
Surface Temperature	–40˚ to 80˚ C	± 0.5˚ C	0.1˚ C
	80˚ to 190˚ C	± 1.5˚ C	0.1˚ F
	–40˚ to 175˚ F	± 1˚ F	0.1˚ C
	175˚ to 375˚ F	± 3˚ F	0.1˚ F
Infrared Surface Temperature*	–70˚ to 380˚ C	± 1˚C + 1%**	0.1˚ C
	–94˚ to 716˚ F		0.1˚ F
Air Temperature	–40˚ to 80˚ C	± 0.5˚ C	0.1˚ C
	–40˚ to 175˚ F	± 1˚ F	0.1˚ F
Humidity	0 to 100%	± 3%	0.1%
Wind Speed†	0 to 20 m/s	± 3% Full Scal	0.1 m/s
	0 to 44 mph		0.1 mph

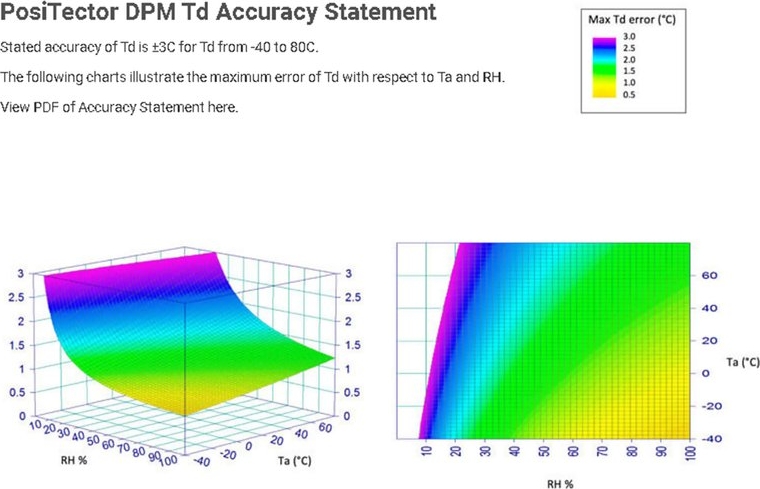

Dew Point	–60˚ to 80˚ C	± 3˚ C‡	0.1˚ C
	–76˚ to 175˚ F	± 5.4˚ F‡	0.1˚ F

* DPM IR models only ** At 23˚ C ambient

† DPM A models only ‡dependent on RH.
