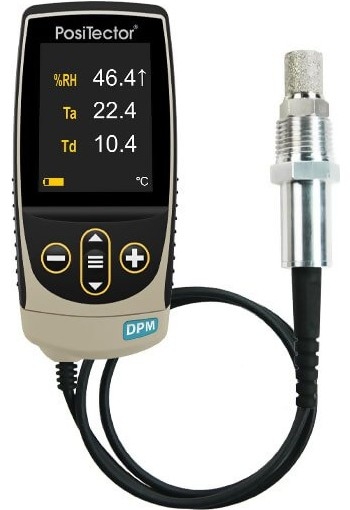

The DeFelsko DPMD1 PosiTector DPMD1 Standard Dew Point Meter for Environmental Monitoring with PRBDPMD Cabled Probe with 1/2" NPT Threads

---

Universal body accepts all PosiTector SPG, DPM, UTG and 6000 probes

---

The DeFelsko DPMD1 PosiTector DPMD1 Standard Dew Point Meter for Environmental Monitoring with PRBDPMD Cabled Probe with 1/2" NPT Threads measures and records climatic parameters including: Air temperature, relative humidity and dew point temperatures.

Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

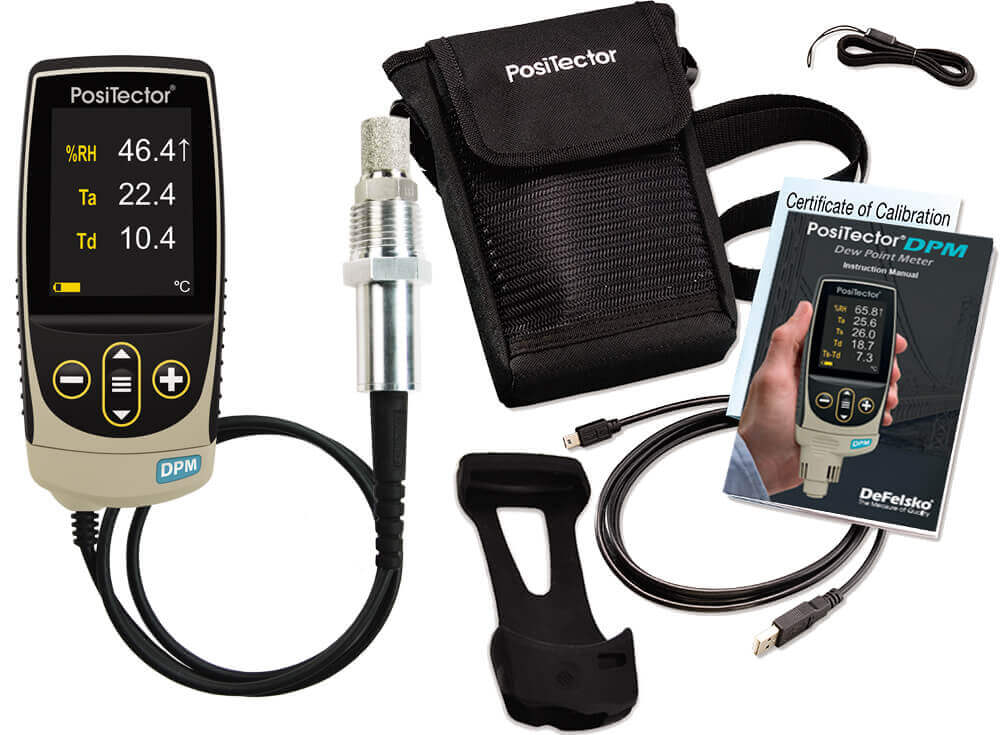

Kit Contents

The DeFelsko PosiTector DPMD1 Standard Dew Point Meters Kit includes everything needed for testing:

PosiTector Standard Gage Body BDYSTD PosiTector DPMD Probe PRBDPMD Protective Rubber Holster Wrist Strap and Protective Lens Shield 3 AAA Alkaline Batteries PosiSoft Software and USB Cable Long Form Certificate of Calibration Traceable to NIST Protectiv Carrying Case and Instructions Two (2) Year Warranty

Features

Simple

• All readings are constantly updated and displayed simultaneously
• Alarms indicate when climate conditions are unsuitable for painting
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• No need to consult complex tables or use a slide rule calculator

Durable

• NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• NEW Ergonomic design with durable rubberized grip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe
• Accurate
• Fast response precision sensors provide accurate, repeatable readings
• SmartTrend™ Indicators identify rising, falling, or stable readings
• Certificate of Calibration included showing traceability to NIST
• Conforms to national and international standards including ISO and ASTM

Powerful

• NEW Screen Capture—save 100 screen images for record keeping and review
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for viewing and reporting data
• Software Updates via web keep your gage current
• Every stored measurement is date and time stamped

Standard Model Features

Includes ALL features as shown above plus:

• Storage of 2,500 datasets—stored readings can be viewed or downloaded
• Auto Log mode runs unattended on batteries for up to 60 hours or continuously via USB

Specifications

Specifications	Range	Accuracy	Resolution
Surface Temperature	–40˚ to 80˚ C	± 0.5˚ C	0.1˚ C
	80˚ to 190˚ C	± 1.5˚ C	0.1˚ F
	–40˚ to 175˚ F	± 1˚ F	0.1˚ C
	175˚ to 375˚ F	± 3˚ F	0.1˚ F
Infrared Surface Temperature*	–70˚ to 380˚ C	± 1˚C + 1%**	0.1˚ C
	–94˚ to 716˚ F		0.1˚ F
Air Temperature	–40˚ to 80˚ C	± 0.5˚ C	0.1˚ C
	–40˚ to 175˚ F	± 1˚ F	0.1˚ F
Humidity	0 to 100%	± 3%	0.1%
Wind Speed†	0 to 20 m/s	± 3% Full Scal	0.1 m/s
	0 to 44 mph		0.1 mph
Dew Point	–60˚ to 80˚ C	± 3˚ C‡	0.1˚ C
	–76˚ to 175˚ F	± 5.4˚ F‡	0.1˚ F

* DPM IR models only ** At 23˚ C ambient

† DPM A models only ‡dependent on RH.
