This product has been discontinued

Product Description

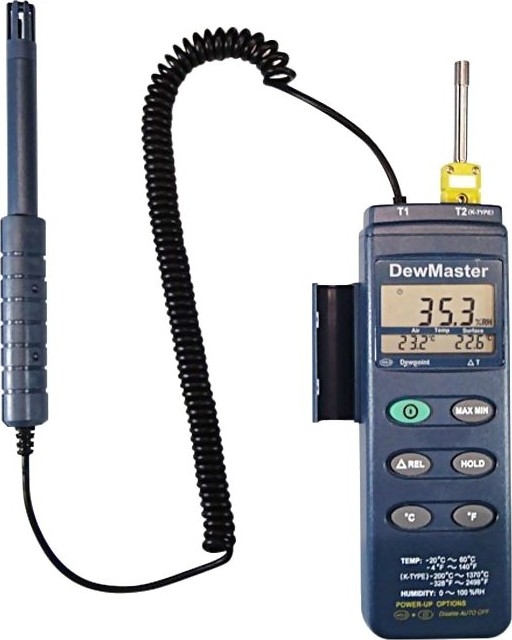

Digital Dew Point Meter - Thermo-Hygrometers
Responds fast to changes in humidity and temperature
Displays three channels: relative humidity, air temperature and surface temperature
When the Hold button is held the unit displays Dewpoint and Delta T

Also known as a hygrometer, thermohygrometer, dewmeter, dew meter, dew point meter, humidity gauge and relative humidity gauge. All are climatic condition monitors.


lineFeatures
line

  • Simultaneously displays three channels: relative humidity, temperature of the air and surface temperature
  • When the Hold button is held the unit displays Dewpoint and Delta T (the difference between dewpoint and surface temperature).
  • When the integral Surface Temperature probe is removed, all K type probes can be used; temperature up to 1300 deg C. Magnetic surface temperature probe on a lead is available.
  • Auto power off (selectable)
  • Hold and Max/Min functions
  • ºC/ºF switchable

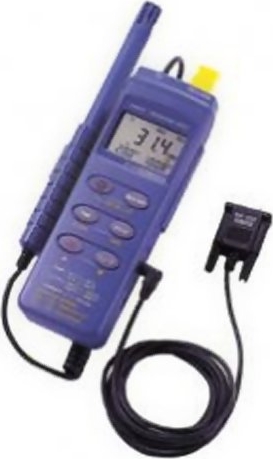

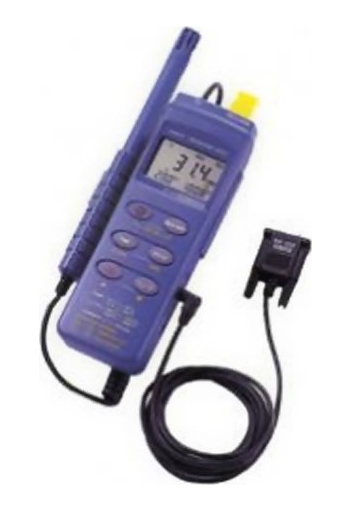

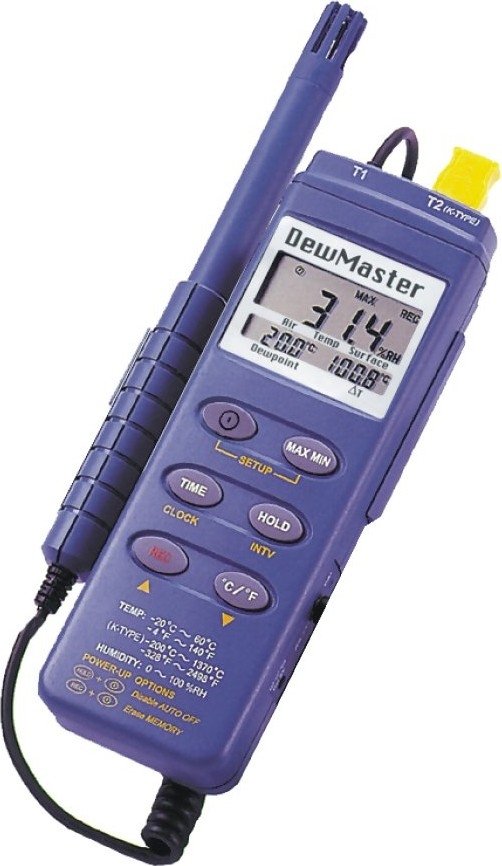

Additional DewLogger Features

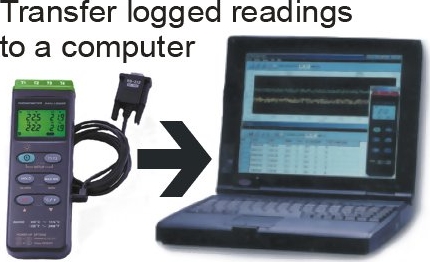

  • Measures and records air temperature, surface temperature, relative humidity and dewpoint for transfer to PC for evaluation and printing.
  • Clock/Time function
  • Memory for 16,000 readings per channel
  • Kit includes integral surface probe, interface cable (RS-232) and datalogger software.

line
Specifications
line


Range Accuracy Resolution
Temperature


Air/RH Probe -20 º to 60 ºC ± 0.7 ºC 0.1 ºC
K-type input -200 º to 1370 ºC


-200 º to 200 ºC ± 0.3 ºC 0.1 ºC

200 º to 400 ºC ± 0.5 ºC 1 ºC

400 º to 1370 ºC ± 0.3 ºC 1 ºC
Relative Humidity 0 to 100% RH ± 2.5% RH 0.1%
Dimensions 184 x 64 x 30mm (7.2" x 2.5" x 1.2")
Weight 320 g (11.3 oz)
Power 9V (100 hrs logging)
DewLogger Model
Recording Interval 1s to 1hr 40 min (1 to 99min 99 sec)
Memory 16,300 readings


line
 Downloads
line

DewMaster & DewLogger Dew Point Meters - Data Sheet
