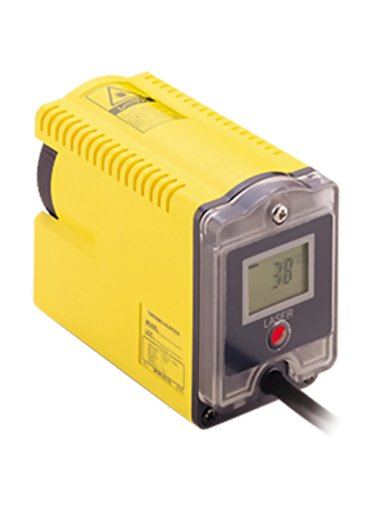

Optex Thermo-Hunter BA-TC Series IR Temperature Sensor

See More Thermometers, Fixed-Mount

Optex Thermo-Hunter BA-TC Series IR Temperature Sensor

See More Thermometers, Fixed-Mount
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
BA-TC Series Infrared Radiation Thermometers
Optex Thermo-Hunter2 BA-TC Series Non-Contact Thermometer with Photo MOS Relay Output
Infrared Radiation Thermometers available with two different field-of-views (FOV) and photo MOS relay output


line
Features
line

  • Checking, counting, and detecting the temperature change of objects from the pre-set value shown on the LED display
  • Measuring range: 0 - 500ºC (32 - 932ºF)

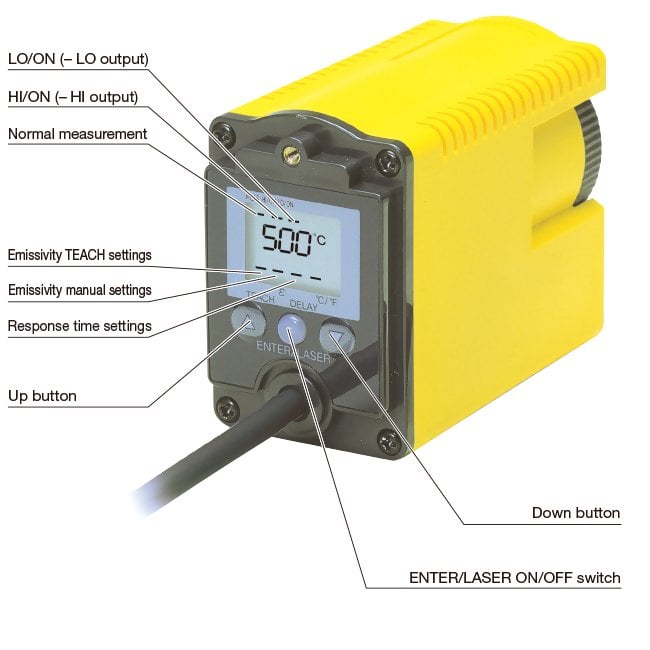

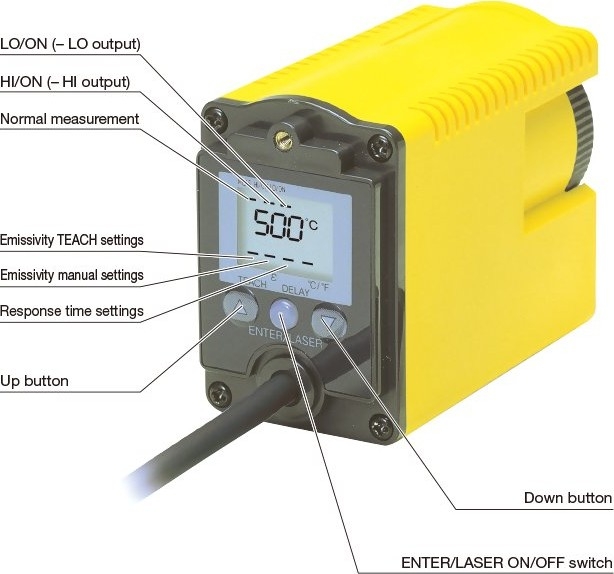

  • Built-in amplifier with compact body and relay output: The first non-contact thermometer of its class incorporating a digital display, setting panel, and photo MOS relay output function.

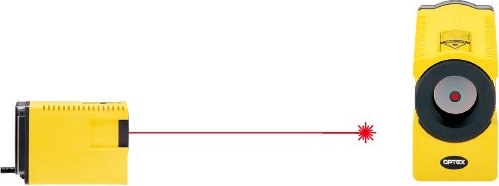

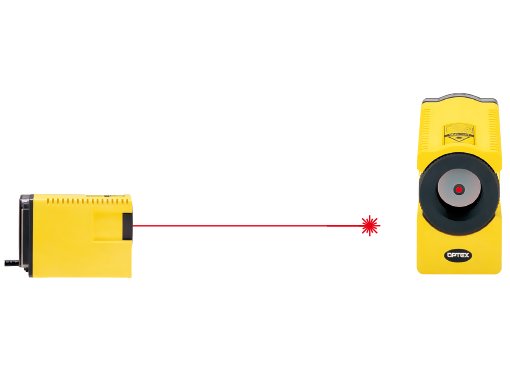

  • A built-in coaxial laser marker allows you to easily target the object to be measured

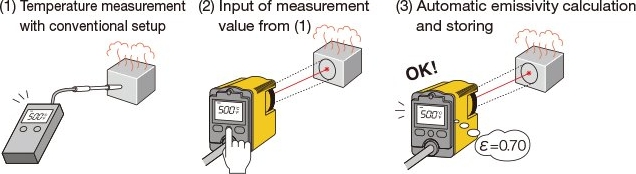

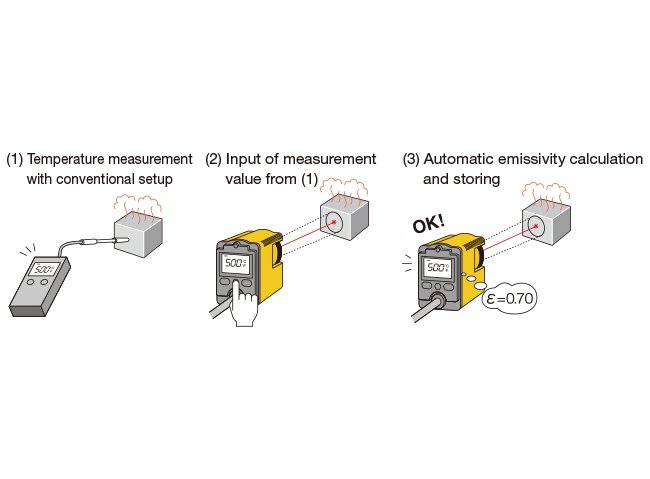

  • e-TEACH function simplifies emmissivity adjustment
  • Measure temperature with any contact-type thermometer
  • Input the temperature value of (1)
  • The the unit automatically calculates the emissivity ratio and stores result in memory
  • Two (2) focusing (Field-of-View) ranges available:
    • Long focus : BA30 type : ø30mm at 1000mm distance
    • Narrow focus : BA06 type : ø6mm at 200mm distance.
  • Water resistance: IP65

Applications

  • Temperature detection of a transparent film
  • Temperature of glass adhesion
  • Detection of presence of gum sheet


line
Specifications
line

ModelsBA-06TCBA-30TC
Measuring Range0 - 500ºC (32 - 932ºF)
Field of Viewø6/200mmø30/1000mm
OpticsSilicon lens
Sensing ElementThermopile/8 - 14 µm
Response Time500ms/90%
Measuring
Accuracy
±1% of reading value or ±2ºC ±1 digit, whichever is larger (e=1.0)
Repeatability±1ºC of reading value
Display
Resolution
1ºC
Analog OutputPhoto MOS relay output, 350mA-DC 100V max
Output Renewal
Interval
50ms
Sighting MethodCoaxial laser marker (Class 2)
Emissivity Ratio
Adjustment
0.10 - 1.20
Delay Function1 - 200 (0.5 - 10 s) Variable
Power SourceDC 12-24V ± 10%, 150 mA
Ambient
Temperature
0 - 50ºC (32 - 122ºF)
Ambient
Humidity
35 - 85%RH (without dew condensation)
Storage
Temperature
-10 - 60ºC (14 - 140ºF)
Vibration
Resistance
3G (20-50Hz, according to JIS C0911)
Water
Resistance
IP65 (NEMA-4)
MaterialsRing case: glass containing PBT; Rear cover: PC
Weight360 g (12.7 oz)
Size45mm W x 68mm H x 92mm D (1.8" x 2.7" x 3.6")


line
Downloads
line

Optex Thermo-Hunter BA Series IR Thermometers - Data Sheet
