BS Series Infrared Radiation Thermometers

Optex Thermo-Hunter Built-In2 BS Series Non-Contact Thermometers

Infrared Radiation Thermometer available with three (3) separate sensors of different field-of-views (FOV) and separate analog output (current or voltage) amplifiers

line
Features
line

Measuring range: 0 - 500ºC (32 - 932ºF)

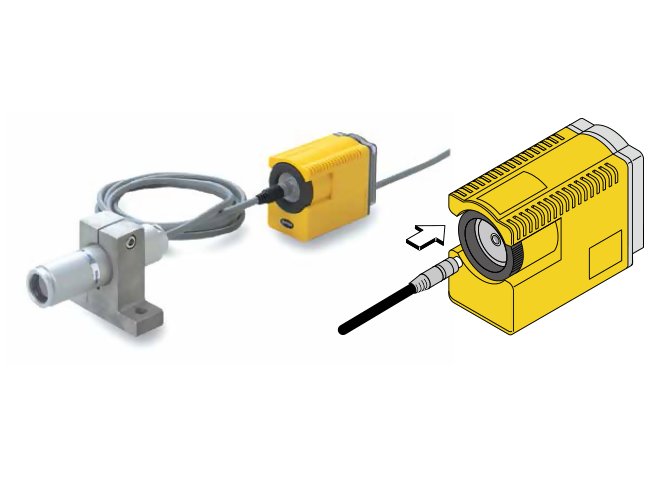

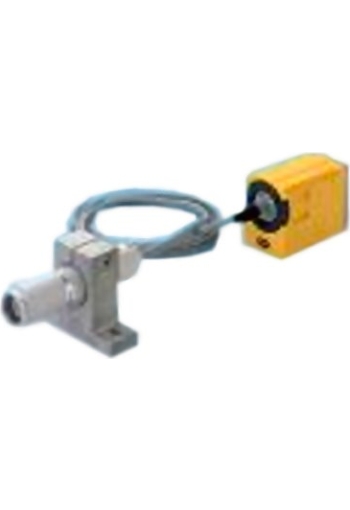

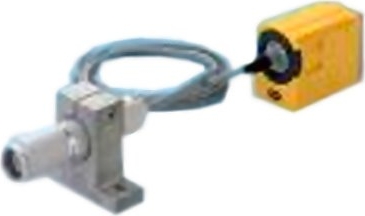

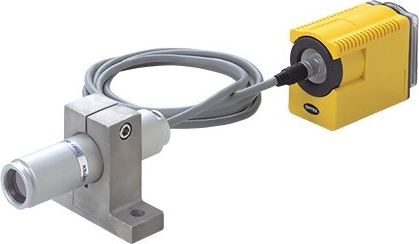

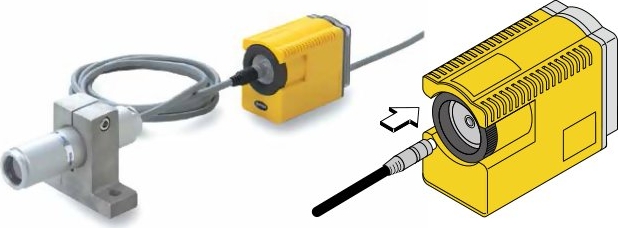

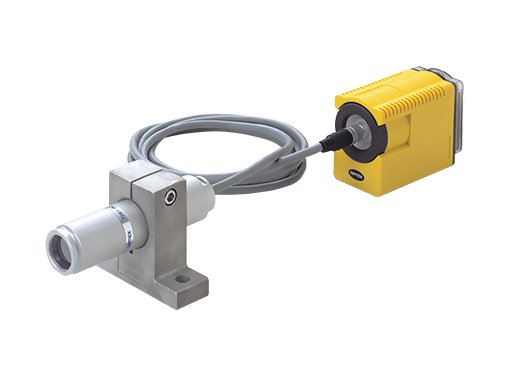

Temperature sensor is separate from amplifier for flexible installation.
Three (3) different sensors available: standard focus (ø30/500mm), narrow focus (ø5/100mm) and fine spot measurement (ø2/50mm)

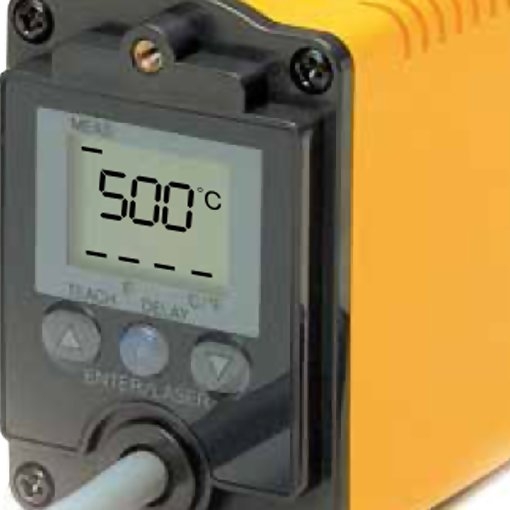

Amplifier units with integrated digital display and analog output (1mV/ºC or 4-20mA)
e-TEACH function simplifies emmissivity adjustment
Measure temperature with any contact-type thermometer
Input the temperature value of (1)
The unit automatically calculates the emissivity ratio and stores result in memory
- Quick response time: 500ms
- Water resistance: IP67

Applications

Temperature control during rubber forming
Temperature measurement of painted surfaces
Temperature Temperature check in rubber hose manufacturing
Overheating check of coak
Abnormal heating check of printed circuit boards

line
Specifications
line

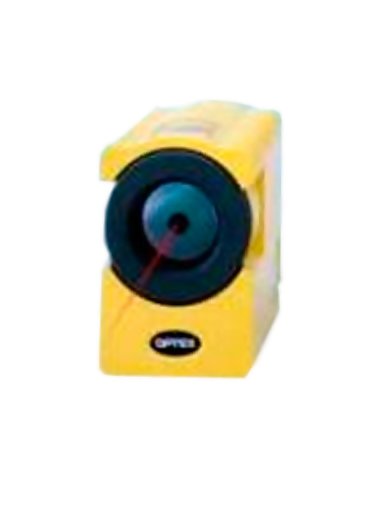

Sensor head

Model		BS-30T	BS-05T	BS-02T
Measurement range		0 to 500°C (32 to 932°F) (Display: −20 to 520°C (−4 to 968°F))
Field of view		ø30 mm/500 mm (Refer to field of view)	ø5 mm/100 mm (Refer to field of view)	ø2 mm/50 mm (Refer to field of view)
Optics		Silicone lens
Sensing element/ spectral response		Thermopile/8 to 14 μm
Response time		0.5 sec./90%
Accuracy*1 （ε≒1.0）		(±1% or ±2°C (3.6°F) of reading value, whichever is greater) ±1 digit
Repeatability		±1°C (1.8°F)
Emissivity (ε) adjustment		0.10 to 1.20 (0.01 per step)
Sighting function		−		Coaxial laser marker (Class 2)
Ambient temperature		0 to 65°C (32 to 149°F), With air purge/water-cooling jacket installed: Air-cooled: 0 to 80°C (32 to 176°F), Water-cooled: 0 to 150°C (32 to 302°F)		0 to 50°C (32 to 122°F)
Ambient humidity		35 to 85% RH (no condensation)
Storage temperature		−20 to 70°C (−4 to 158°F)		–20 to 60°C (−4 to 140°F)
Vibration resistance		3G (20 to 50 Hz, according to IEC 60068-2-6)
Degree of protection		IP67
Applicable regulations	EMC	EMC Directive (2014 / 30 / EU)
	Environment	RoHS Directive (2011 / 65 / EU), China RoHS (MIIT Order No.32)
	Environment	FDA Regulations (21 CFR 1040.10 and 1040.11) (except for deviations pursuant to Laser Notice No.50)
Applicable standards		EN 60825-1
Weight		Approx. 300 g (including connector cable)		Approx. 400 g (including connector cable)
Material		Aluminum
Standard included accessories		-		Sensor head mounting bracket

*1 The measurement accuracy in the specification is limited to the calibration conditions of our factory.・Note that specifications are subject to change without prior notice for product improvement purposes.

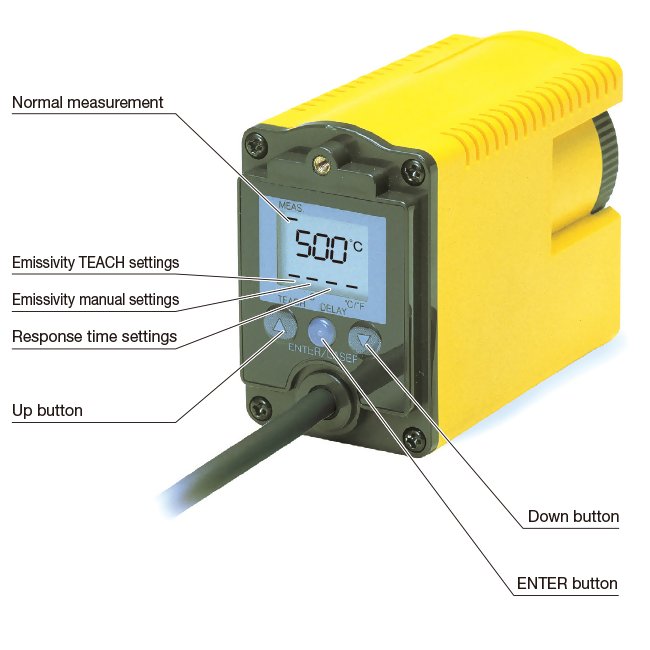

Amplifier unit

Model	BS-A	BS-V
Analog output	4 to 20 mA	1 mV/°C
Analog output resolution	0.2°C (0.36°F)
Digital display resolution	1°C (1°F) (digital display on back of amplifier)

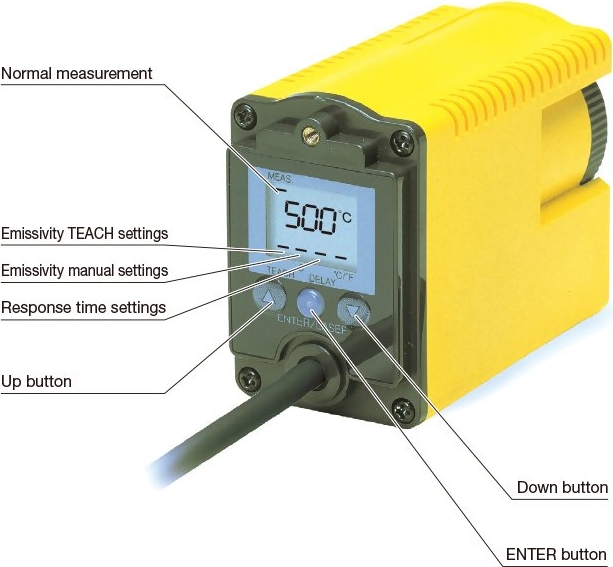

Functions	Simple emissivity adjustment: TEACH function Response time selection (DELAY) function: 1 (0.5 sec.) to 200 (approx. 10 sec.)
Supply voltage/ current consumption	12 to 24 VDC ±10%/100 mA or less (at max. load)
Ambient temperature	0 to 50°C (32 to 122°F)
Ambient humidity	35 to 85% RH (no condensation)
Storage temperature	–20 to 60°C (−4 to 140°F)
Vibration resistance	3G (20 to 50 Hz, according to IEC 60068-2-6)
Degree of protection	IP65
Weight	Approx. 320 g (including cable)
Material	Ring/housing: Glass-filled PBT, Rear / Cover: PC
Standard included accessories	Amplifier mounting bracket ×1, amplifier mounting screw (M4) ×2
