Optex PT-2LD Thermo-Hunter Portable Non-Contact Infrared Thermometer, -40 to +950 Degrees F

See More Thermometers, Hand-Held

Optex PT-2LD Thermo-Hunter Portable Non-Contact Infrared Thermometer, -40 to +950 Degrees F

See More Thermometers, Hand-Held
Price:
$150.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days View Faster Delivery Options
warrenty

Product Description

Optex PT-2LD Thermo-Hunter Portable Non-Contact Infrared Thermometer


Measuring Range:
-40 to +510.0ºC
-40 to +950.0ºF


line
Features
line
  • Wide measuring range: - 40 to +510.0ºC (-40 to +950.0ºF)
  • Field of View: 100/1000mm (D:S = 10:1)
  • Single touch operation: get measurement, laser guide, and backlight with the push of one button
  • Auto power off: with releasing the measure button, display is hold and auto off after 20 seconds

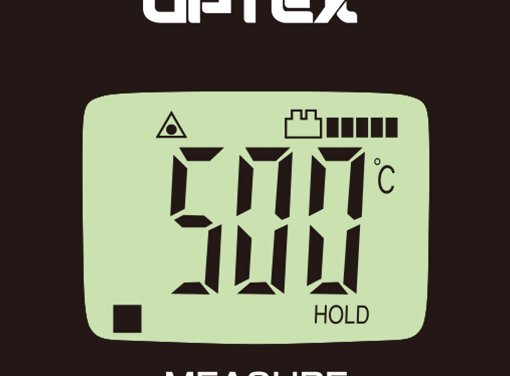

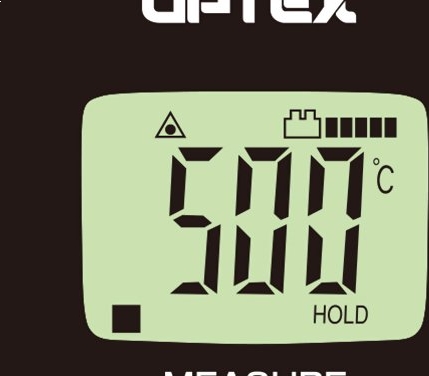

  • Large LCD display: easy to check temperature with wide display and auto backlight
  • Display resolution: 0.1ºF (0.1ºC)
  • Quick response: after pushing measuring button, display shows temperature value in 0.8sec
  • Laser beam guide: easy to confirm the measuring target with a laser beam
  • Compact size: small, light (180 g / 6.5 oz) and fits in your pocket

Applications

  • Motors and Machines
  • Electric Wiring & Transformers
  • Freezers & Refrigerators
  • Transport & Automotive


line
Specifications
line

Measuring Range-40 to 510.0ºC (-40 to 950.0ºF)
Display Range-51 to 538.0ºC (-60 to 1000.0ºF)

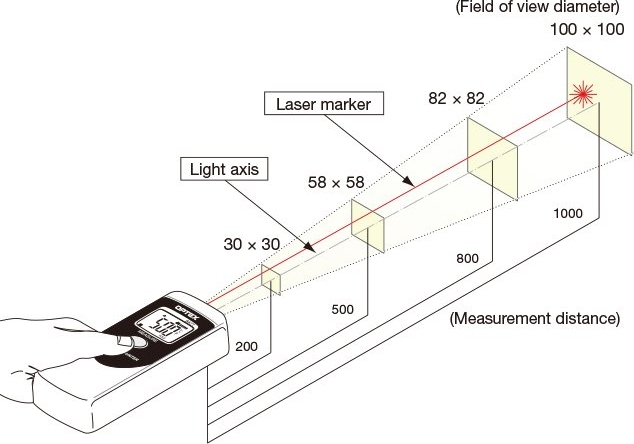

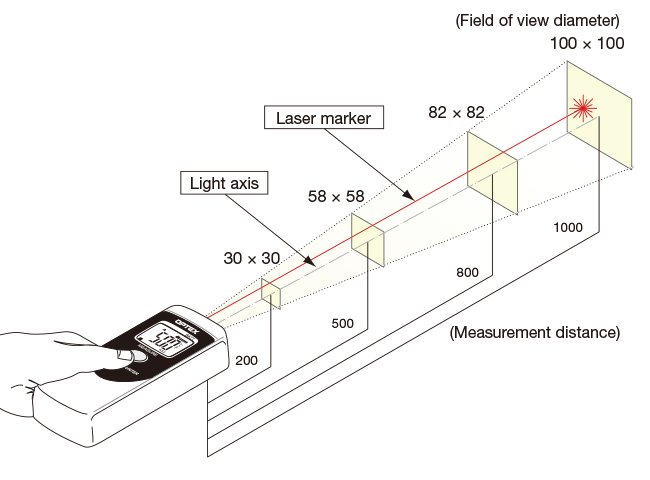

Field of View100/1000mm (D:S=10:1) square spot
Opticsmirror/silicon filter
Sensing Element /
Wavelength
Thermopile/8 to 14 µm
Response Time0.8s/90%
Accuracy
(emissivity=0.95
at 25ºC±3ºC)
Less than 0ºC: ±3ºC; 0 to 200ºC: ±2ºC;
Above 200ºC: ±1% of reading value
(Less than 32ºF: ±6ºF; 32 to 400ºF: ±4ºF;
Above 400ºF: ±1% of reading value)
Repeatability±1.0ºC (2ºF) of reading value
Display Resolution0.1ºC/ºF
Sighting MethodBlinking laser marker
Emissivity ratio
adjustment
0.95 / 0.70 (Switchable)
Back-light functionAvailable
Temperature UnitºC/ºF (Switchable)
Power Supply2 (two) AA alkaline batteries (included)
Battery Life (alkaline)Approx. 30 hours
Ambient temperature0 to 50ºC (32 to 120ºF)
Ambient humidity35 to 85%Rh (without dew condensation)
Storage temperature-10 to 60ºC (14 to 140ºF)
Dimensions140 x 56 x 37mm
Weight
(incl. batteries)
180g (6 oz.)


line
Downloads
line

Optex PT-2LD Thermo-Hunter IR Thermometer - Data Sheet
