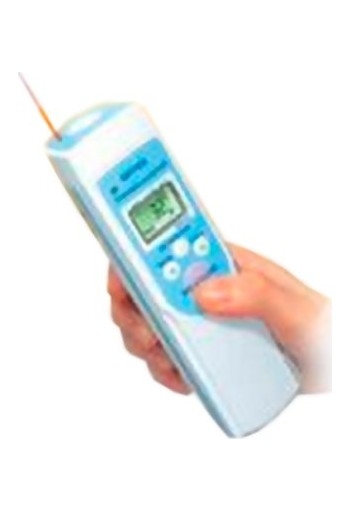

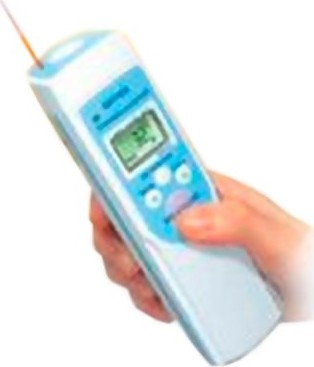

Optex PT-5LD Thermo-Hunter Waterproof Portable Non-Contact Infrared Thermometer
Measuring Range:
0 to +500.0ºC
+32 to +932.0ºF
Features
- Waterproof (IP67)
- 99-point memory
- Field of View: 66.7/1000mm (D:S = 15:1)
- Compact size: small, light (200 g / 7 oz including battery) and fits in your pocket
- HI/LO Alarms: audible & visual (LED) signals
- Quick response time: 0.7s
- Laser beam guide: easy to confirm the measuring target with a laser beam
- Hygienic body: ABS (antibacterial)
Applications
- Checking for abnormal heat in bearings
- Checking for hot spots in electrical panels
- Freezers & Refrigerators
- Motors & machines
Specifications
| Measuring Range | 0 to +500ºC (+32 to +932ºF) |
| Display Range | -10 to +650ºC (+14 to 1200ºF) |
| Field of View | 66.7/1000mm (D:S=15:1) |
| Optics | mirror/silicon filter |
Sensing Element/
Wavelength | Thermopile/8 to 14 µm |
| Response Time | 0.7s/90% |
Accuracy
(emissivity=0.95
at 25ºC±3ºC) | 0 to 200ºC: ±2ºC; 201 to 500ºC: ±1%
(32 to 392ºF: ±4ºF; 393 to 932ºF: ±1%) |
| Temperature unit | ºC/ºF (Switchable) |
| Display Resolution | 1ºC/ºF |
| Repeatability | ±1.0ºC (2ºF) of reading value |
| Sighting method | Laser beam marker (Class 2) |
| HOLD time | 15s |
| Back-light function | Available |
| Emissivity adjustment | 0.95 / 0.70 (Selectable) |
Continuous
measurement mode | On/Off Selectable |
Hi / Lo Alarm
LED / Buzzer | On/Off Selectable |
| Memory | 99-point memory |
| Power supply | 9V alkaline dry battery (included) |
Battery life
(alkaline) | Approx. 12 hours |
| Ambient temperature | 0 to 50ºC (32 to 120ºF) |
| Ambient humidity | 35 to 85%Rh (without dew condensation) |
| Storage temperature | -10 to 60ºC (14 to 140ºF) |
| Housing | IP67 |
| Material | ABS (antibacterial) |
| Dimensions | 160 x 44 x 52mm (6.3" x 1.7" x 1.65") |
Weight
(incl. batteries) | 200g (7 oz.) |
