    Product Description

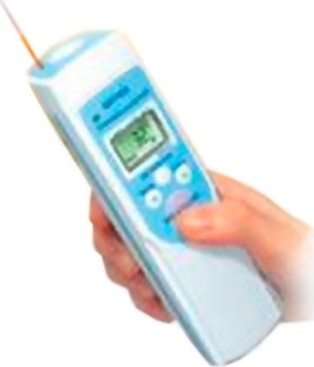

    Optex PT-7LD Thermo-Hunter Waterproof Portable Non-Contact Infrared Thermometer


    Measuring Range:
    -30.0 to +200ºC
    -22 to +392.0ºF


    line
    Features
    line
    • Waterproof (IP67)
    • 99-point memory
    • Field of View: 66.7/1000mm (D:S = 15:1)
    • Compact size: small, light (200 g / 7 oz including battery) and fits in your pocket
    • HI/LO Alarms: audible & visual (LED) signals
    • Quick response time: 0.7s
    • Laser beam guide: easy to confirm the measuring target with a laser beam
    • Hygienic body: ABS (antibacterial)

    Applications

    • Checking for abnormal heat in bearings
    • Checking for hot spots in electrical panels
    • Freezers & Refrigerators
    • Motors & machines


    line
    Specifications
    line

    Measuring Range-30.0 to +200.0ºC (-22 to +392ºF)
    Display Range-40 to +220.0ºC (-40 to +100%ºF)
    Field of View66.7/1000mm (D:S=15:1)
    Opticsmirror/silicon filter
    Sensing Element/
    Wavelength
    Thermopile/8 to 14 µm
    Response Time0.7s/90%
    Accuracy
    (emissivity=0.95
    at 25ºC±3ºC)
    -30.0 to 0.0ºC: ±3.0ºC; 0.1 to 100ºC ±1ºC; 100.1 to 200ºC: ±2ºC
    Temperature unitºC/ºF (Switchable)
    Display Resolution1ºC/ºF
    Repeatability±1.0ºC (2ºF) of reading value
    Sighting methodLaser beam marker (Class 2)
    HOLD time15s
    Back-light functionAvailable
    Emissivity adjustment0.95 / 0.70 (Selectable)
    Continuous
    measurement mode
    On/Off Selectable
    Hi / Lo Alarm
    LED / Buzzer
    On/Off Selectable
    Memory99-point memory
    Power supply9V alkaline dry battery (included)
    Battery life
    (alkaline)
    Approx. 12 hours
    Ambient temperature0 to 50ºC (32 to 120ºF)
    Ambient humidity35 to 85%Rh (without dew condensation)
    Storage temperature-10 to 60ºC (14 to 140ºF)
    HousingIP67
    MaterialABS (antibacterial)
    Dimensions160 x 44 x 52mm (6.3" x 1.7" x 1.65")
    Weight
    (incl. batteries)
    200g (7 oz.)


    line
    Downloads
    line

    Optex PT-7LD Thermometer - Data Sheet
