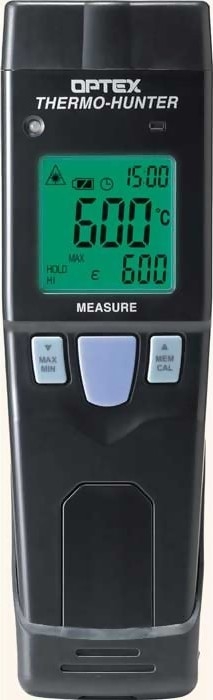

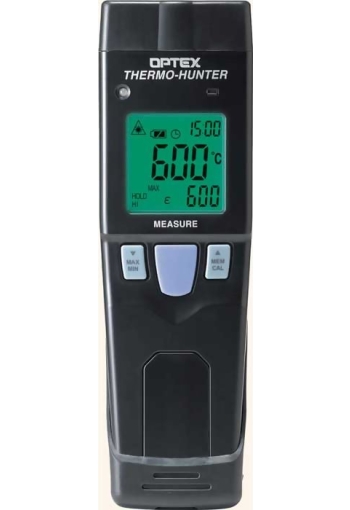

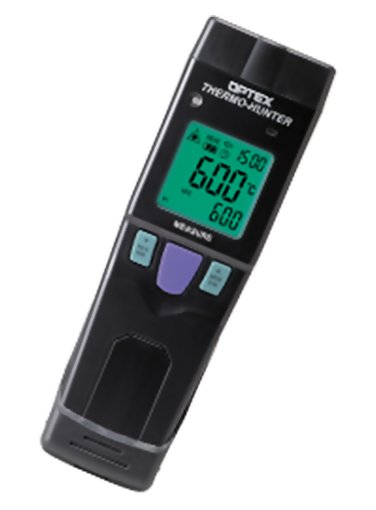

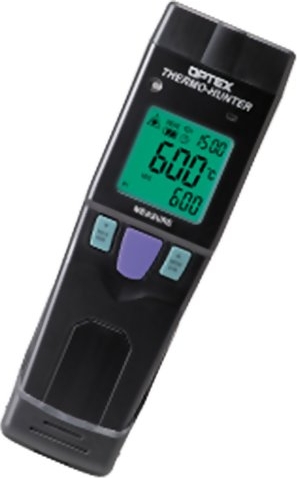

Optex PT-S80 Optex Thermo-Hunter Portable Non-Contact Infrared Thermometer
Portable Non-Contact Infrared Thermometer
Measuring Range:
-30.0 to +600.0ºC
-22.0 to +1112.0ºF

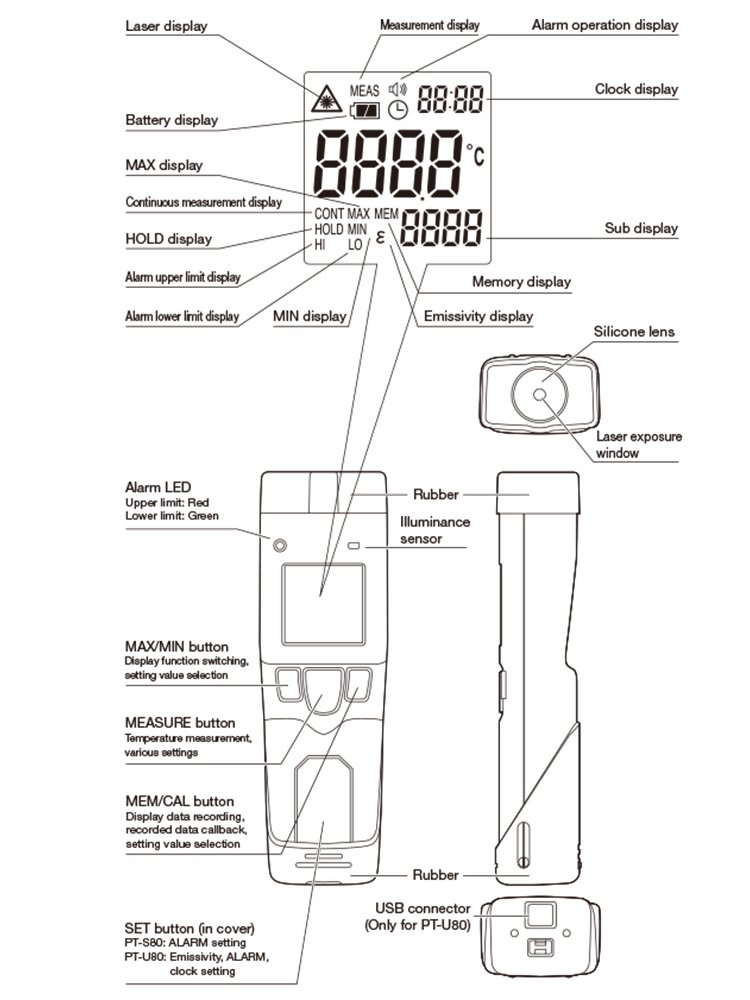

Features
- EL (electroluminescence) back light
- Large LED indicator
- Coaxial laser marker
- Max/Min display
- High/Low alarm

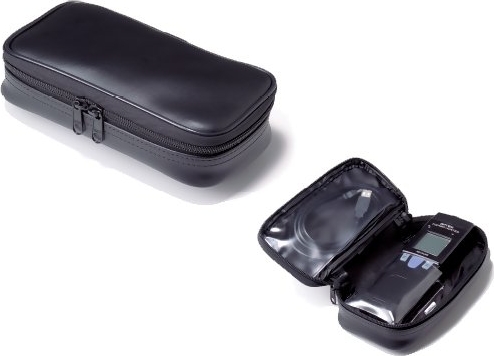

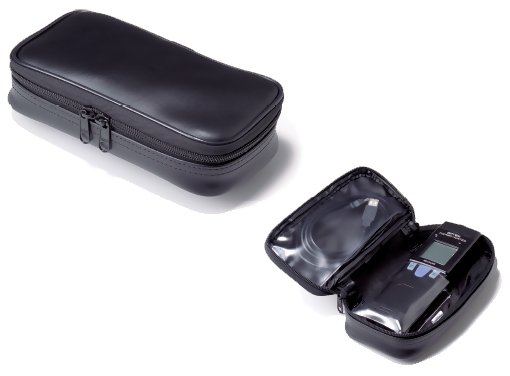

- Includes protective carrying case
- Field-Of-View: 30/1000mm (D:S = 33:1)
- Selectable emissivity- 0.95 / 0.85 / 0.70
- Single memory function
Applications
- Temperature control during rubber forming
- Temperature measurement of painted surfaces
- Temperature Temperature check in rubber hose manufacturing
- Overheating check of coak
- Abnormal heating check of printed circuit boards
- Checking for abnormal heating in bearings
- Checking for hot spots in an electrical panel
Specifications
| Sensor Head |
| Model | BS-30T - BS-05T |
| Field of View | ø50/500mm |
| Optics | Silicon lens |
| Sensing Element | Thermopile / 8 - 14 µm |
| Sighting Method | N/A |
| Ambient Temperature | 0 to 65ºC (32 to 149ºF) |
| Environmental Humidity | 35 to 85%RH (without dew condensation) |
| Storage Temperature | -20 to 70ºC (-4 to 158ºF) |
| Vibration Resistance | 3G (20 - 50Hz), in accordance with JIS C0911) |
| Water Resistance | IP67 |
| Weight | 300g (10.6 oz) |
| Dimensions | ø30mm x 124mm long |
| Sensor Head | |
| Model | BS-02T |
| Field of View | ø50/500mm |
| Optics | Silicon lens |
| Sensing Element | Thermopile / 8 - 14 µm |
| Sighting Method | Coaxial laser marker (Class 2) |
| Ambient Temperature | 0 to 50ºC (32 to 122ºF) |
| Environmental Humidity | 35 to 85%RH (without dew condensation) |
| Storage Temperature | -20 to 60ºC (-4 to 140ºF) |
| Vibration Resistance | 3G (20 - 50Hz), in accordance with JIS C0911) |
| Water Resistance | IP67 |
| Weight | 400g (14.1 oz) |
| Dimensions | ø45mm x 104mm long |
| Measuring Range | -30 to 600ºC (-22 to +1112ºF) |
| Field-Of-View | 30mm/1000mm (D:S=33:1) |
| Optics | Si lens |
Sensing Element/
Wavelength | Thermopile/8 to 14 µm |
| Response Time | 0.5s/90% |
| Accuracy (e=0.95) | -30.0 to 0°C:3°C,0.1°C to 200°C:2°C,201°C to 600°C:1% |
| Display Resolution | -30.0 to 199.9ºC (-22.0 to 391.8ºF): 0.1ºC/ºF
200 to 600ºC (392 to 1112ºF): ±1% |
| Repeatability | ±1ºC (2ºF) of reading value |
| Sighting method | Coaxial Laser Marker (Class 2) |
| HOLD time | 15s |
Continuous
Measurement Mode | On/Off Selectable |
|
| Data Storing | 35-point Memory |
| Back-light function | EL back light |
| Emissivity adjustment | 0.3 to 1.20 in 0.01 steps |
Hi/Lo Alarm
LED/Buzzer | Alarm LED, Buzzer (On/Off Selectable) |
| Display Functions | NOR/MAX/MIN |
| Power supply | 2 (two) AA alkaline batteries (included) |
Battery life
(alkaline) | 15 hours (with max load) |
| Ambient temperature | 0 to 50ºC (32 to 122ºF) |
| Ambient humidity | 35 to 85% RH (no condensation) |
| Storage temperature | -10 to 60ºC |
| Material | ABS/TEEE |
| Dimensions | 182 x 56 x 38 mm (7.16" x 2.2" x 1.5") |
Weight
(incl. batteries) | 230 g (8 oz) |
