Optex PT-U80 Thermo-Hunter Portable Non-Contact Infrared Thermometer with USB Output, -22.0 to +1112 degrees F

See More Thermometers, Hand-Held

Optex PT-U80 Thermo-Hunter Portable Non-Contact Infrared Thermometer with USB Output, -22.0 to +1112 degrees F

See More Thermometers, Hand-Held
This product has been discontinued

Product Description

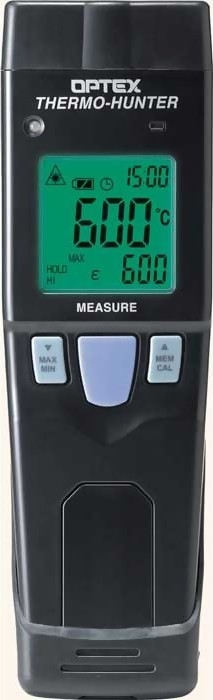

Optex PT-U80 Thermo-Hunter Portable Non-Contact Infrared Thermometer with USB Output


Measuring Range:
-30.0 to +600.0ºC
-22.0 to +1112.0ºF


line
Features
line

  • EL (electroluminescence) back light
  • Coaxial laser marker
  • High/Low alarm
  • Emissivity adjustment: 0.3 to 1.20 in 0.01 increments
  • PC connection: USB output
  • Continuous measurement function
  • Field-Of-View: 30/1000mm (D:S = 33:1)
  • Large LED indicator
  • Max/Min display

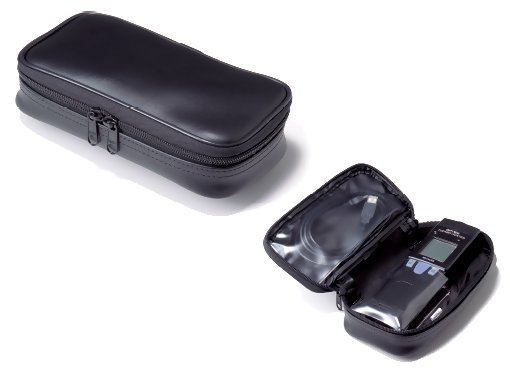

  • Includes protective carrying case
  • 35-point memory
  • Clock and Time Alarm

Applications

  • Checking for abnormal heating in bearings
  • Checking for hot spots in an electrical panel


line
Specifications
line

Measuring Range-30 to 600ºC (-22 to +1112ºF
Field-Of-View30mm/1000mm (D:S=33:1)
OpticsSi lens
Sensing Element /
Wavelength
Thermopile/8 to 14 µm
Response Time0.5s/90%
Accuracy (e=0.95)-30.0 to 0°C:3°C,0.1°C to 200°C:2°C,201°C to 600°C:1%
Display Resolution-30.0 to 199.9ºC (-22.0 to 391.8ºF): 0.1ºC/ºF
200 to 600ºC (392 to 1112ºF): ±1%
Repeatability±1ºC (2ºF) of reading value
Sighting methodCoaxial Laser Marker (Class 2)
HOLD time15s
Continuous
Measurement Mode
On/Off Selectable
USB OutputAvailable (cable included)
Data Storing35-point Memory
Back-light functionEL back light
Emissivity adjustment0.3 to 1.20 in 0.01 steps
Hi / Lo Alarm
LED / Buzzer
Alarm LED, Buzzer (On/Off Selectable)
Display FunctionsNOR/MAX/MIN
Power supply2 (two) AA alkaline batteries (included)
Battery life
(alkaline)
15 hours (with max load)
Ambient temperature0 to 50ºC (32 to 122ºF)
Ambient humidity35 to 85% RH (no condensation)
Storage temperature-10 to 60ºC
MaterialABS/TEEE
Dimensions182 x 56 x 38 mm (7.16" x 2.2" x 1.5")
Weight
(incl. batteries)
230 g (8 oz)
