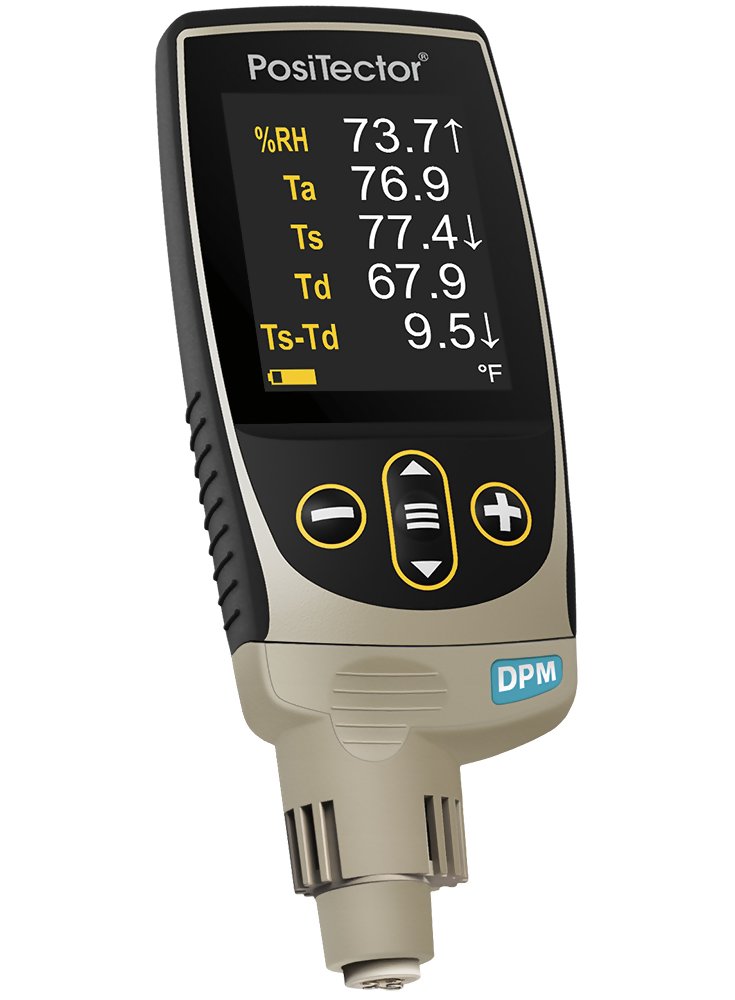

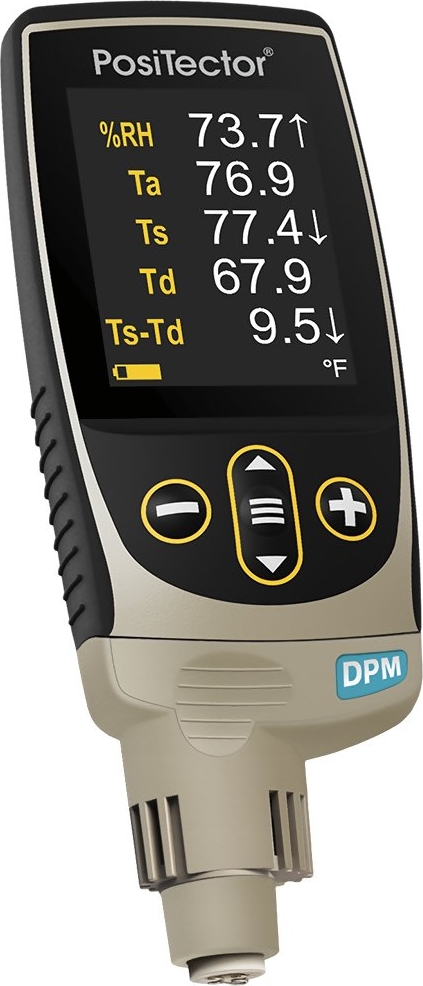

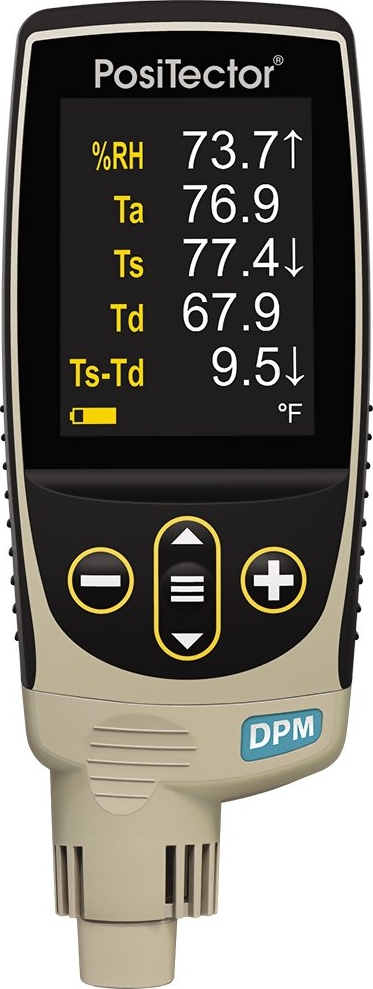

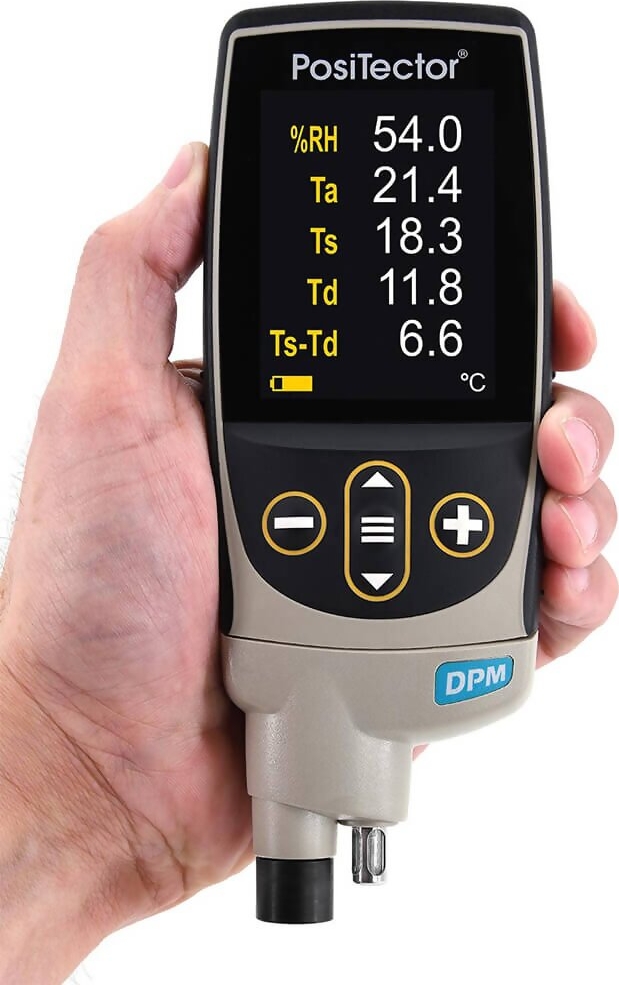

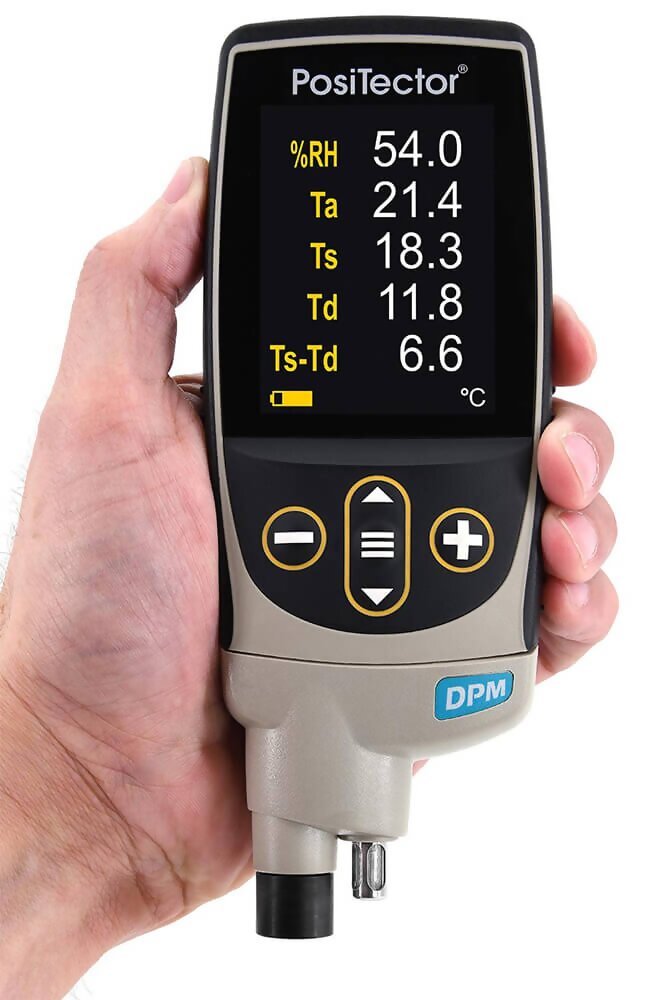

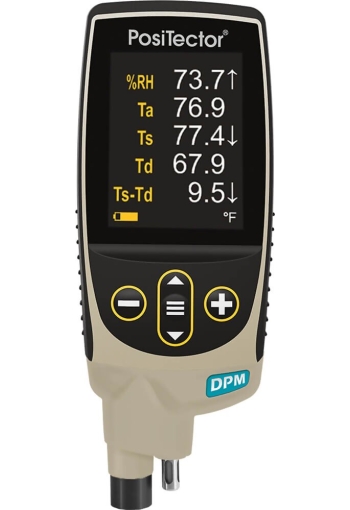

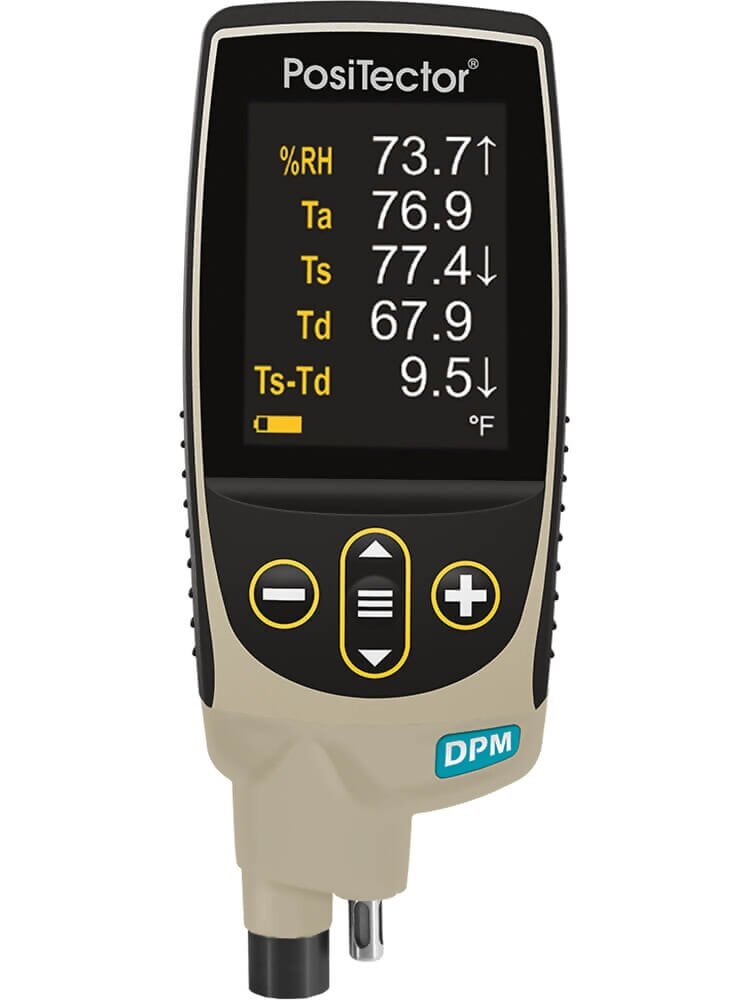

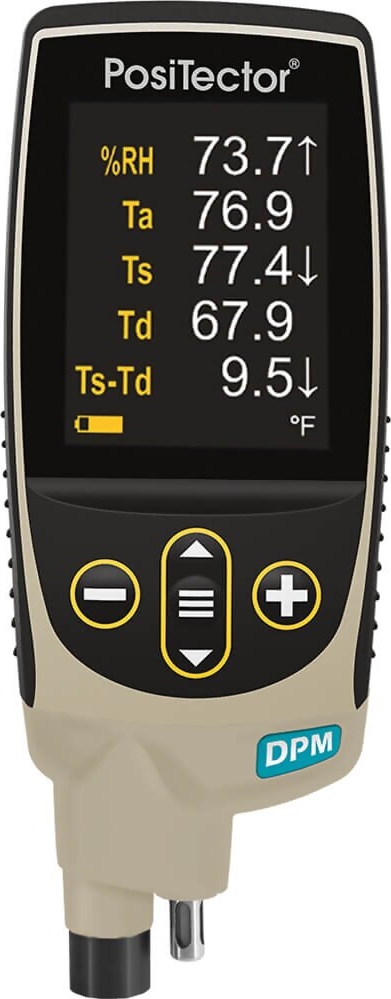

DeFelsko DPMIR3-G Positector DPMIR3 Advanced Dew Point Meter for Environmental Monitoring with PRBDPMIR-C Integral Probe with Infrared Surface Temperature Sensor
Universal body accepts all PosiTector SPG, DPM, UTG and 6000 probes

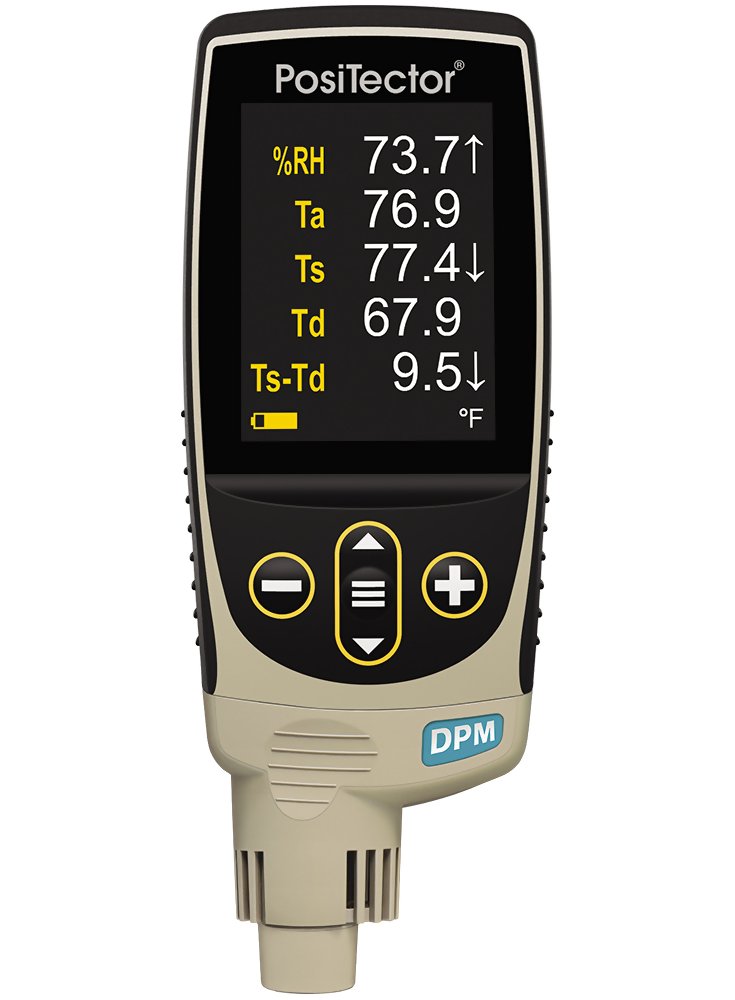

The DeFelsko DPMIR3-G Positector DPMIR3 Advanced Dew Point Meter for Environmental Monitoring with PRBDPMIR-C Integral Probe with Infrared Surface Temperature Sensor measures and records climatic parameters including: Relative humidity, air temperature, surface temperature, dew point temperature and difference between surface and dew point temperatures.
Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

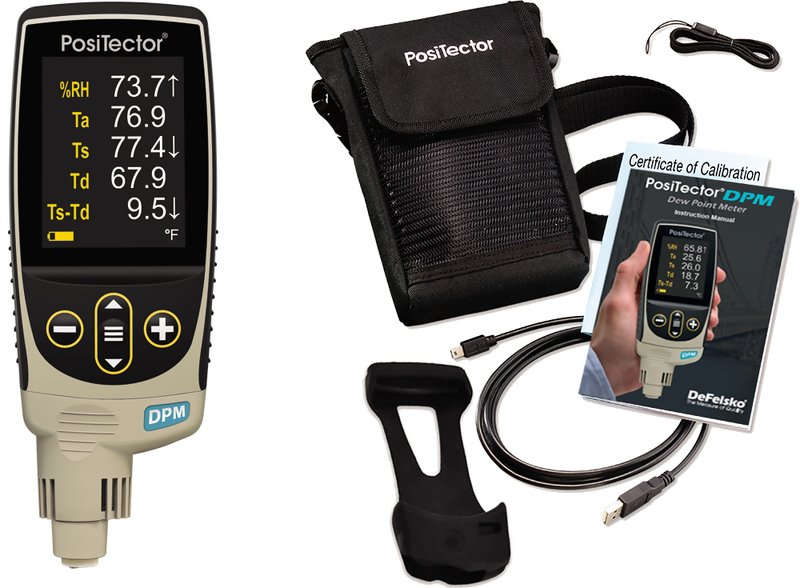

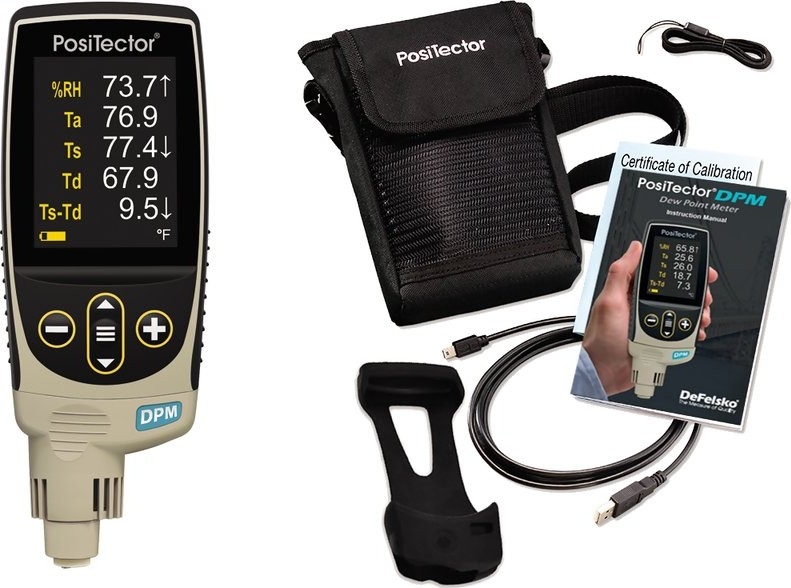

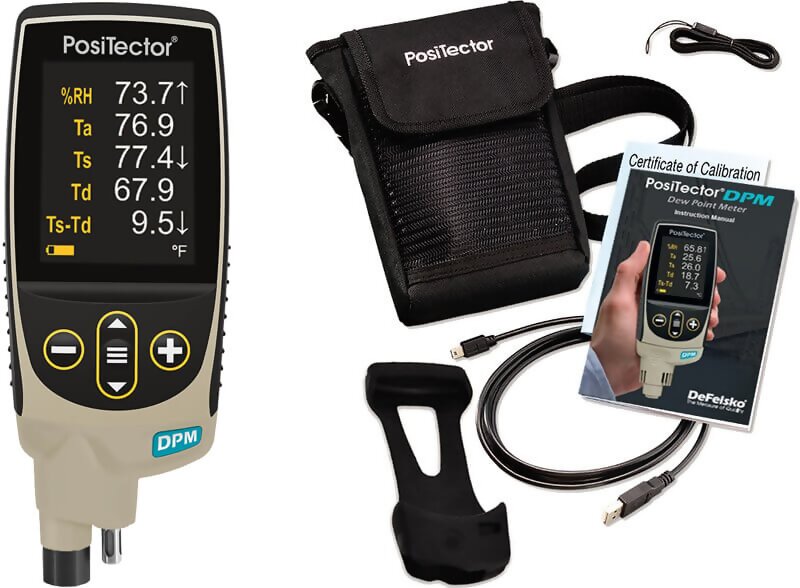

Kit Contents
The DeFelsko PosiTector DPM3 Advanced Dew Point Meters Kit includes everything needed for testing:
- PosiTector Advanced Gage Body BDYADV

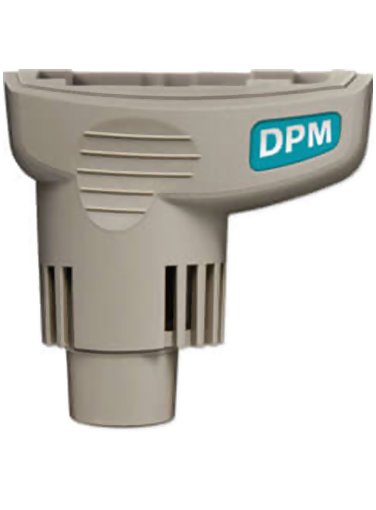

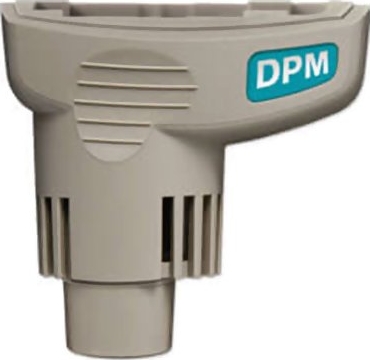

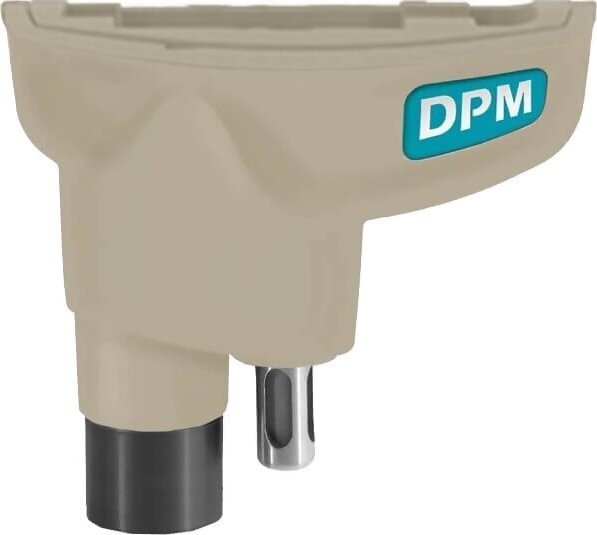

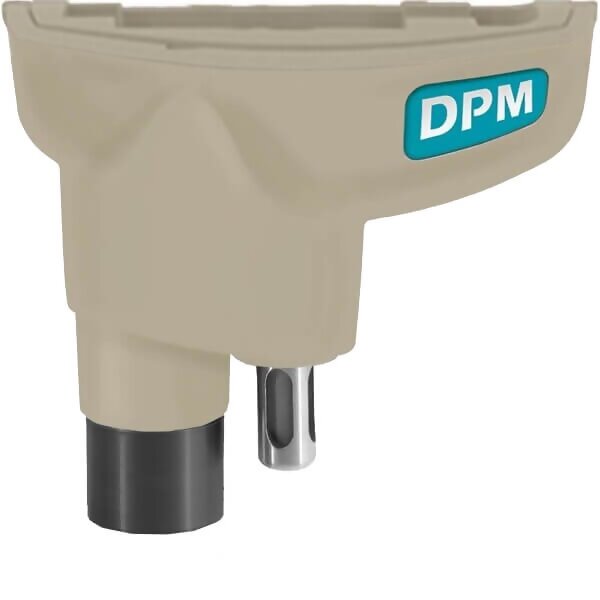

- PosiTector DPMR3 Probe PRBDPMIR
- Temperature Sensors
- Protective rubber holster with belt clip Wrist strap and protective lens shield
- 3 AAA alkaline batteries
- PosiSoft Software and USB cable
- Long Form Certificate of Calibration traceable to NIST
- Nylon carrying case with shoulder strap and instructions
- Two (2) year warranty
| |
Features
Simple

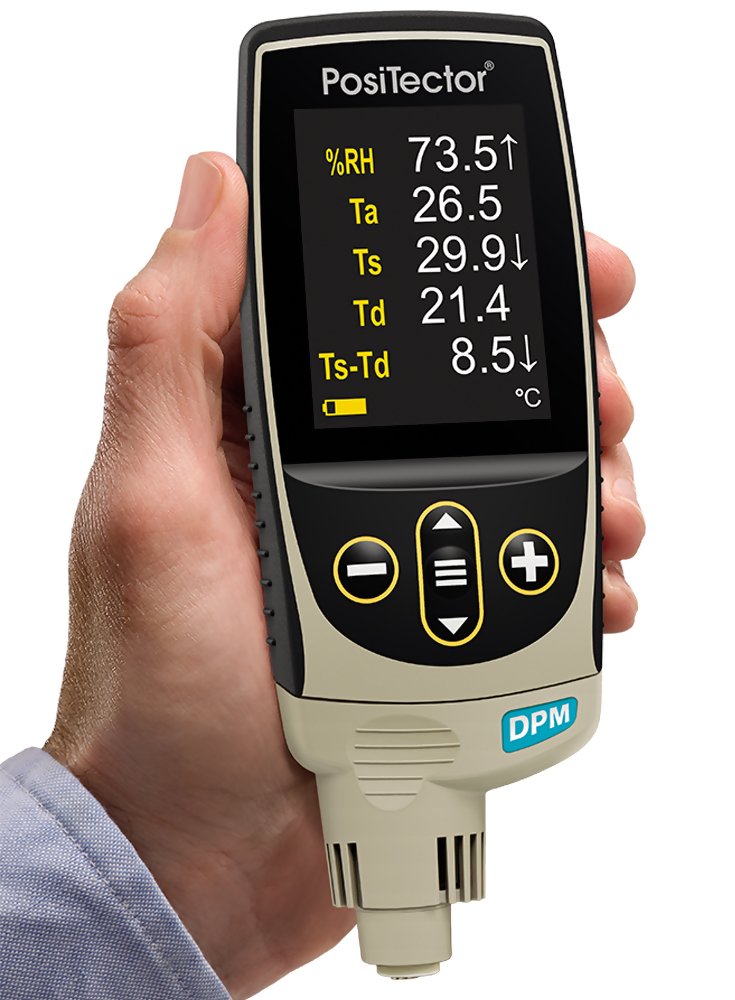

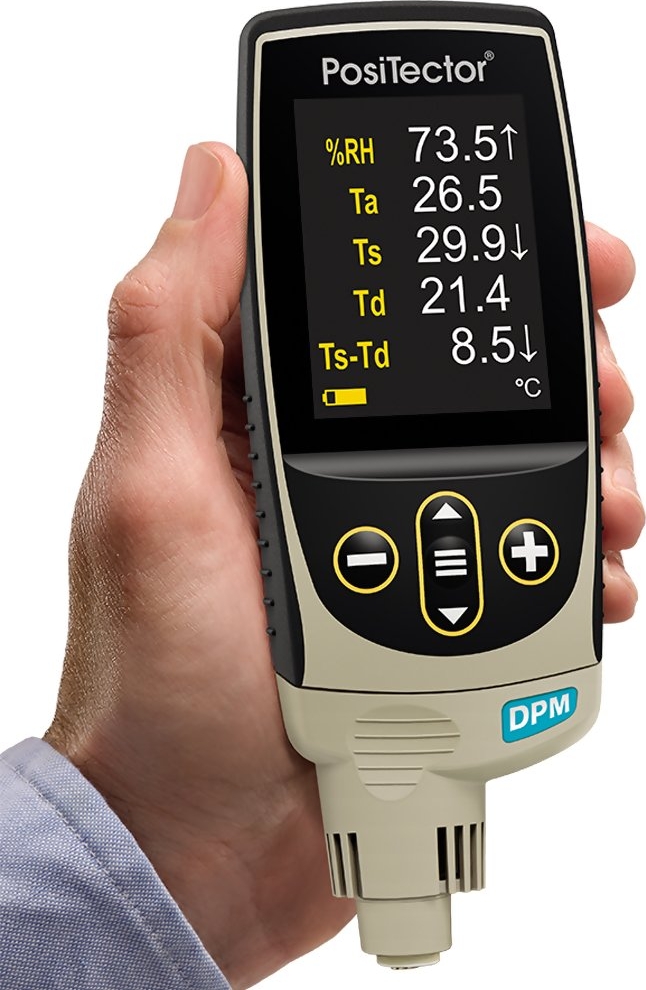

- All readings are constantly updated and displayed simultaneously
- Alarms indicate when climate conditions are unsuitable for painting
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

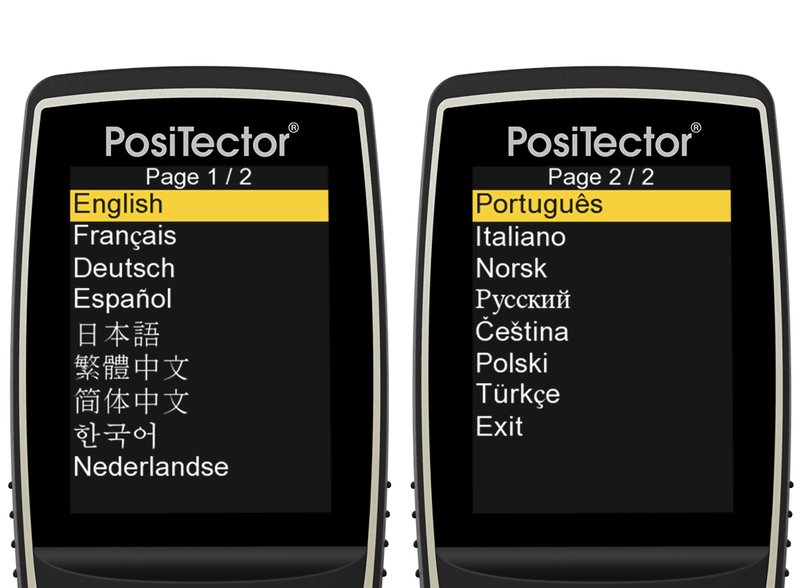

- NEW On-gage help explains menu items at the touch of a button
- No need to consult complex tables or use a slide rule calculator
Durable
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
- Accurate
- Fast response precision sensors provide accurate, repeatable readings
- SmartTrend™ Indicators identify rising, falling, or stable readings
- Certificate of Calibration included showing traceability to NIST
- Conforms to national and international standards including ISO and ASTM
Powerful
- NEW Screen Capture—save 100 screen images for record keeping and review
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life

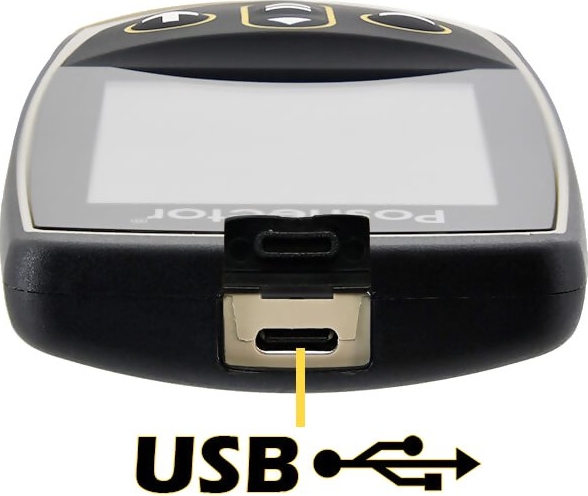

- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
- Every stored measurement is date and time stamped
Advanced Model Features
Includes ALL features as shown above plus:
- NEW Storage of 250,000 datasets in up to 1,000 batches
- Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals.
- User defined limits for all parameters—visible and audible warnings. Receive email alerts when connected to WiFi.
- Trend Charts graph readings in real-time
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- Wet bulb temperature can be displayed and recorded
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Specifications
| Specifications | Range | Accuracy | Resolution |
| Surface Temperature | –40˚ to 80˚ C | ± 0.5˚ C | 0.1˚ C |
| 80˚ to 190˚ C | ± 1.5˚ C | 0.1˚ F |
| –40˚ to 175˚ F | ± 1˚ F | 0.1˚ C |
| 175˚ to 375˚ F | ± 3˚ F | 0.1˚ F |
| Infrared Surface Temperature* | –70˚ to 380˚ C | ± 1˚C + 1%** | 0.1˚ C |
| –94˚ to 716˚ F | 0.1˚ F |
| Air Temperature | –40˚ to 80˚ C | ± 0.5˚ C | 0.1˚ C |
| –40˚ to 175˚ F | ± 1˚ F | 0.1˚ F |
| Humidity | 0 to 100% | ± 3% | 0.1% |
| Wind Speed† | 0 to 20 m/s | ± 3% Full Scal | 0.1 m/s |
| 0 to 44 mph | 0.1 mph |

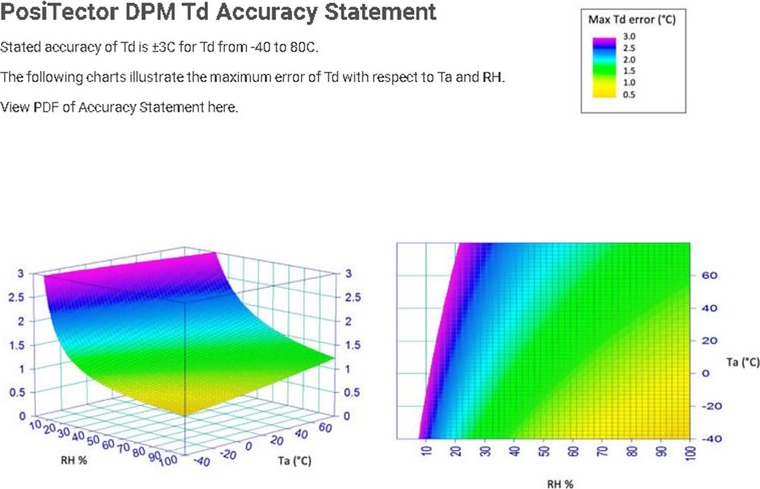

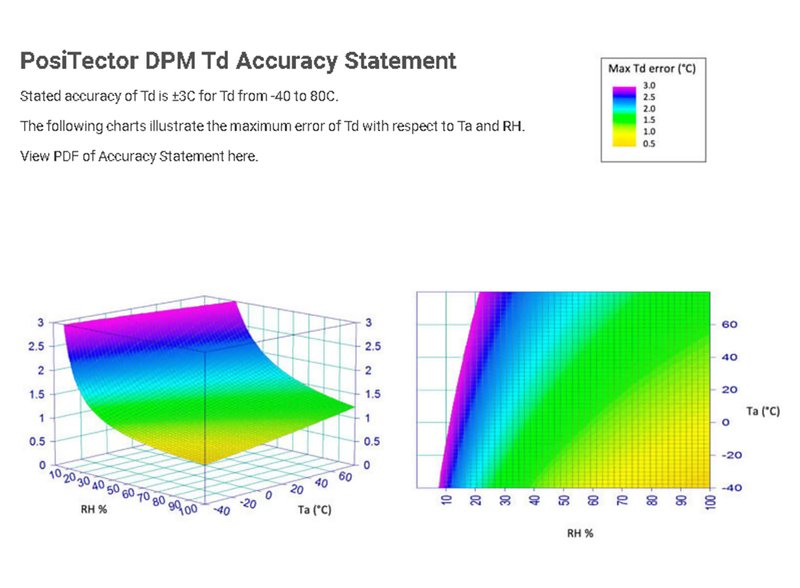

| Dew Point | –60˚ to 80˚ C | ± 3˚ C‡ | 0.1˚ C |
| –76˚ to 175˚ F | ± 5.4˚ F‡ | 0.1˚ F |
* DPM IR models only
** At 23˚ C ambient | † DPM A models only
‡dependent on RH. |
