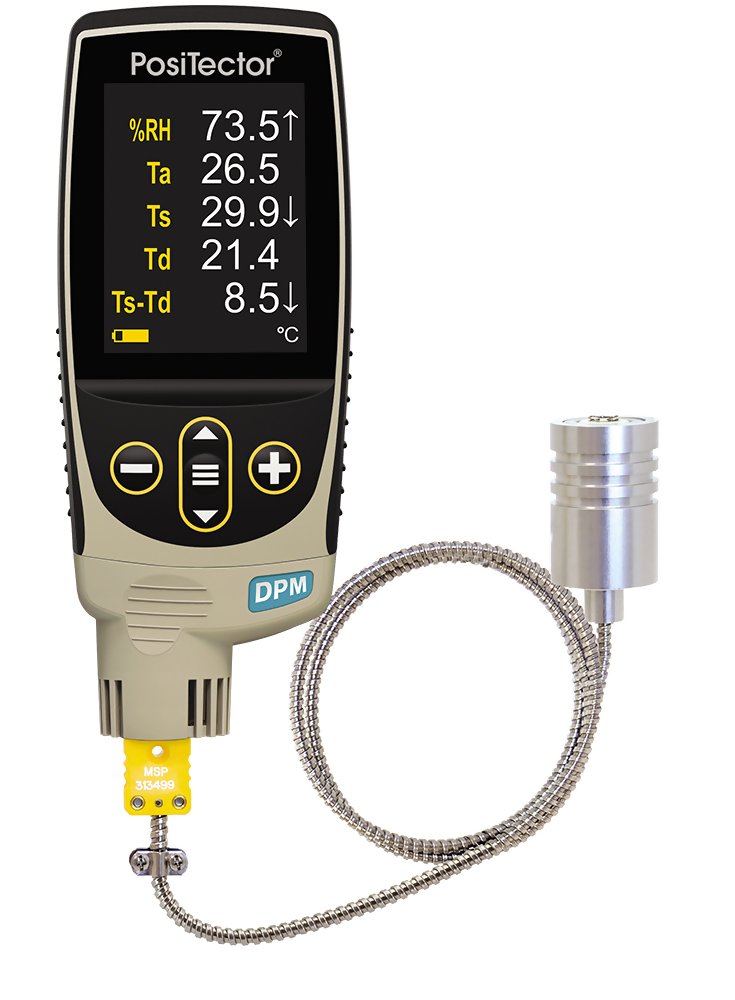

DeFelsko DPMS1-G Positector DPMS1 Standard Dew Point Meter with PRBDPMS-C Integral Probe with Cabled Surface Temperature Sensor

See More DeFelsko PosiTector DPM

DeFelsko DPMS1-G Positector DPMS1 Standard Dew Point Meter with PRBDPMS-C Integral Probe with Cabled Surface Temperature Sensor

See More DeFelsko PosiTector DPM
Price:
$875.00
warrenty

Product Description

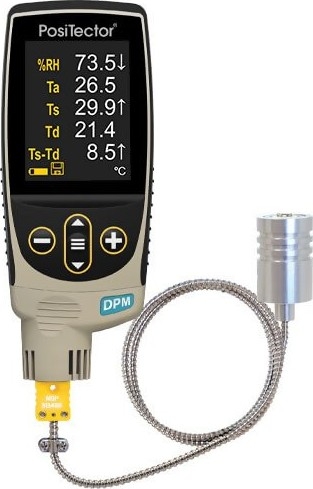

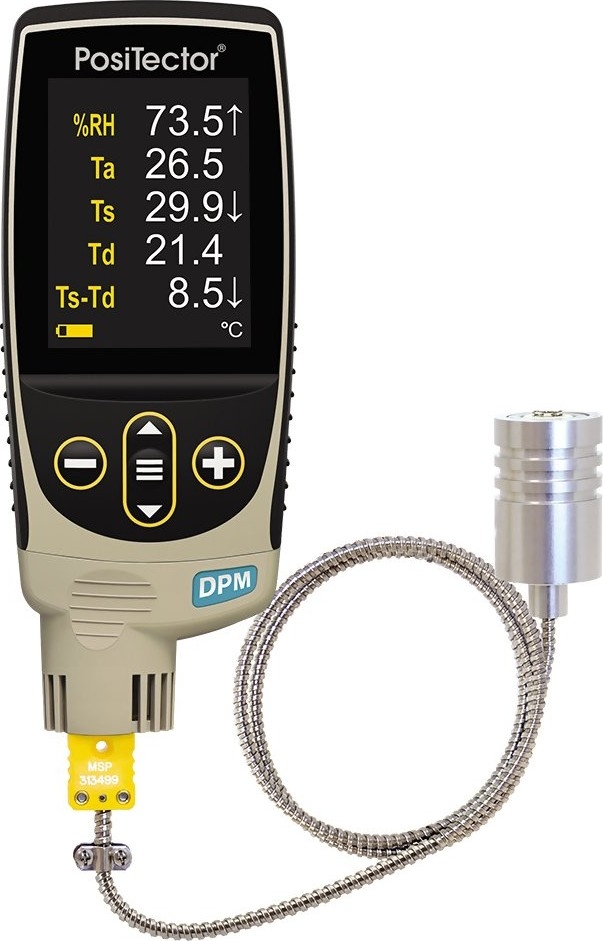

DeFelsko DPMS1-G PosiTector DPMS1 Standard Dew Point Meter for Environmental Monitoring with PRBDPMS-C Cabled Probe with Surface Temperature Sensor
Universal body accepts all PosiTector SPG, DPM, UTG and 6000 probes

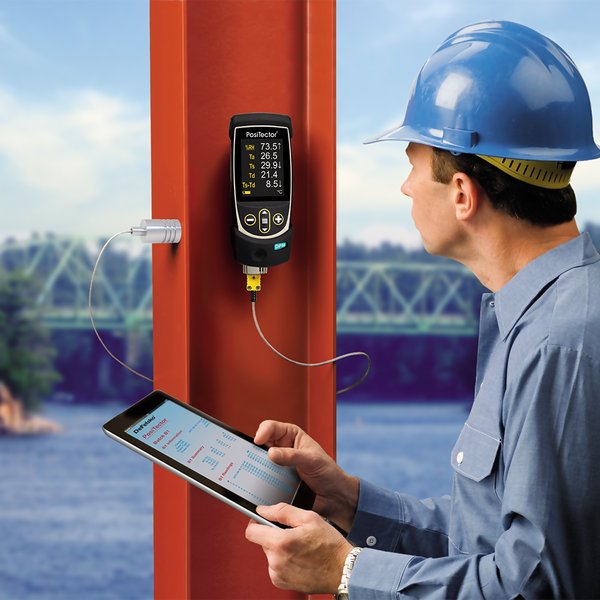

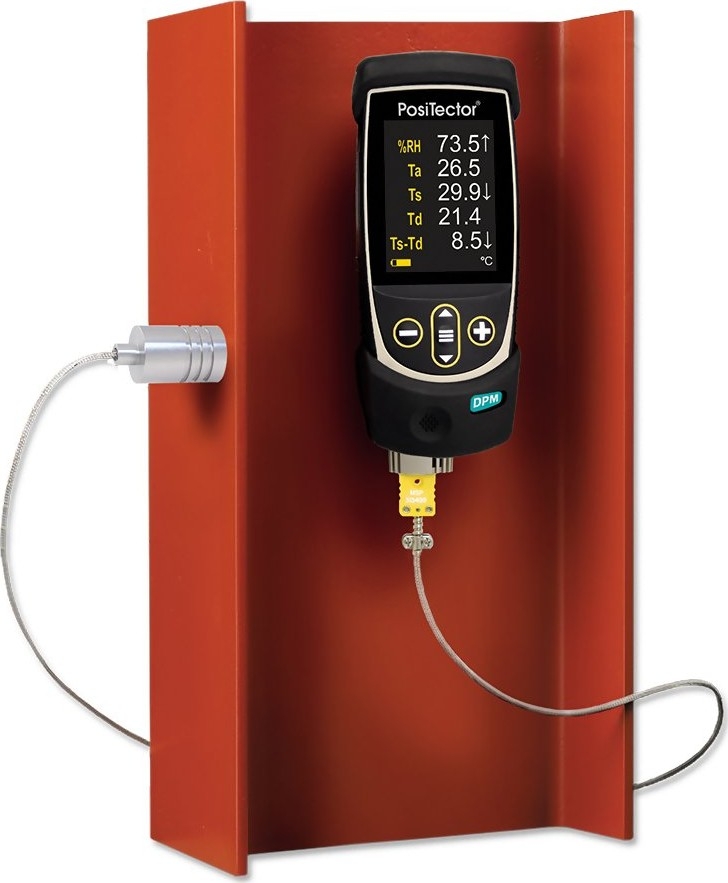

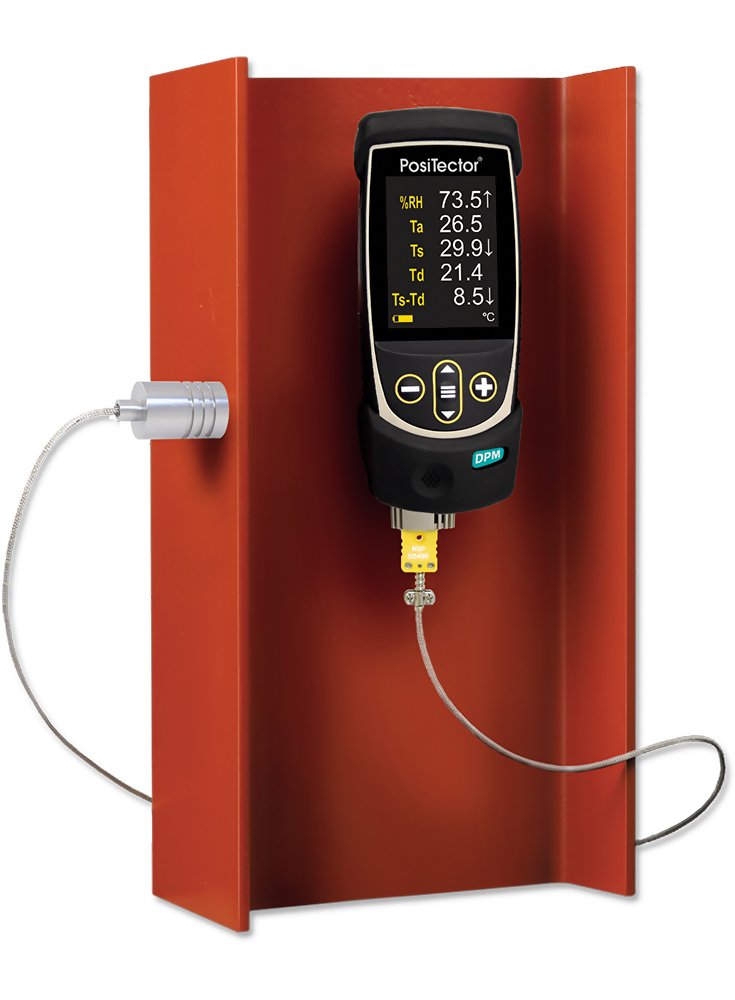

The DeFelsko DPMS1-G PosiTector DPMS1 Standard Dew Point Meter for Environmental Monitoring with PRBDPMS-C Cabled Probe with Surface Temperature Sensor measures and records climatic parameters including: Relative humidity, air temperature, surface temperature, dew point temperature and difference between surface and dew point temperatures.

Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32


lineKit Contents line

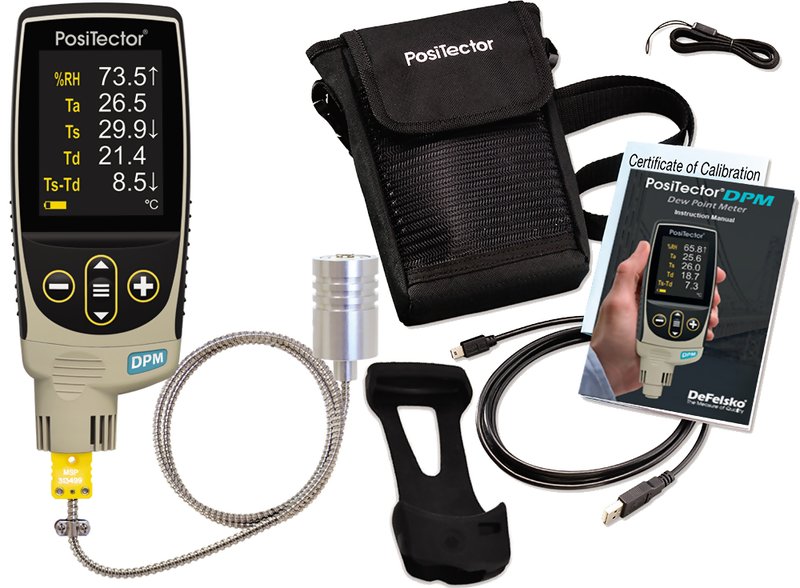

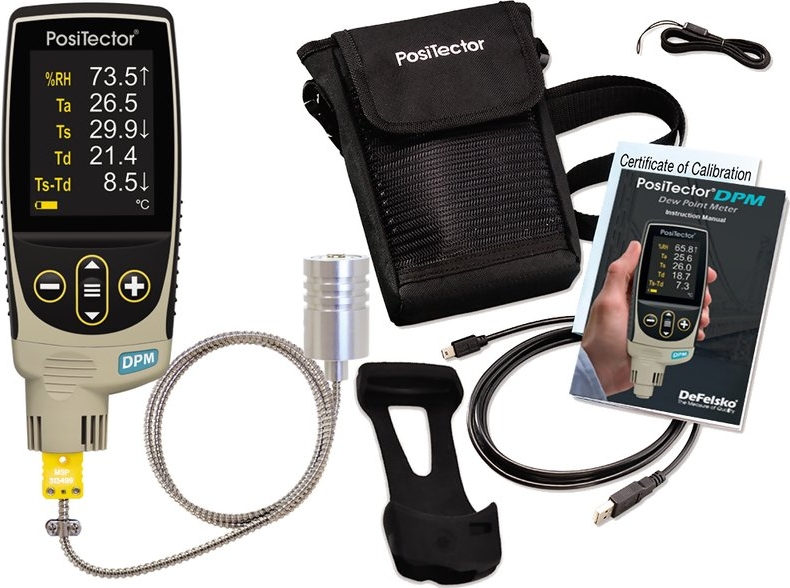

The DeFelsko PosiTector DPMS1 Standard Dew Point Meters Kit includes everything needed for testing:

  • PosiTector Standard Gage Body BDYSTD-G

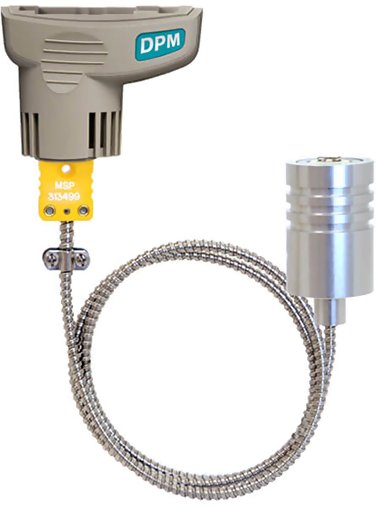

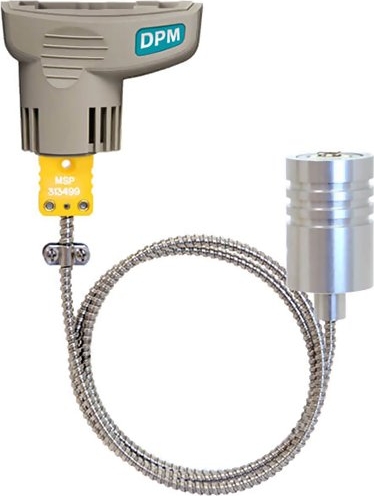

  • PosiTector DPMS1 Probe PRBDPMS
  • Temperature Sensors
  • Protective rubber holster with belt clip
  • Wrist strap and protective lens shield
  • 3 AAA alkaline batteries
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST
  • Hard shell carrying caseand instructions
  • Two (2) year warranty


line
Features
line

Simple

  • All readings are constantly updated and displayed simultaneously
  • Alarms indicate when climate conditions are unsuitable for painting
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • No need to consult complex tables or use a slide rule calculator

Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe
  • Accurate
  • Fast response precision sensors provide accurate, repeatable readings
  • SmartTrend™ Indicators identify rising, falling, or stable readings
  • Certificate of Calibration included showing traceability to NIST
  • Conforms to national and international standards including ISO and ASTM

Powerful

  • NEW Screen Capture—save 100 screen images for record keeping and review
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life

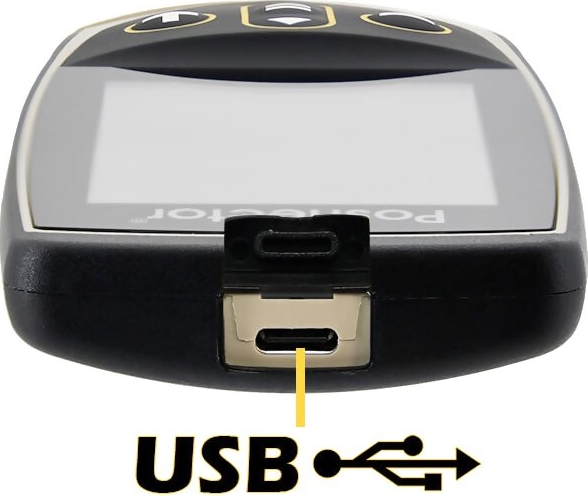

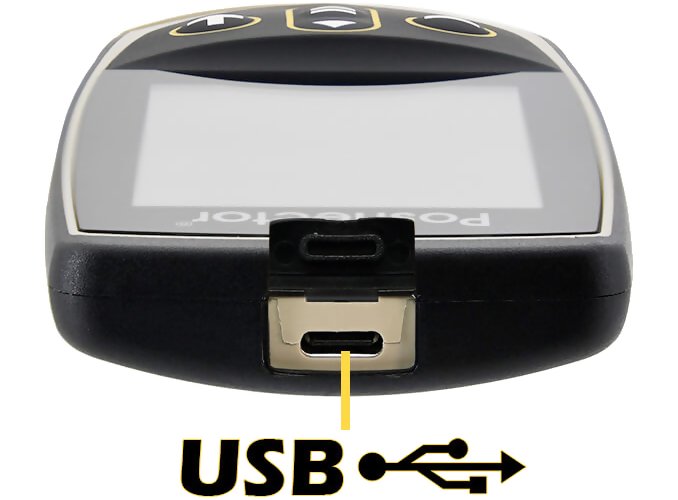

  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Includes PosiSoft suite of software for viewing and reporting data
  • Software Updates via web keep your gage current
  • Every stored measurement is date and time stamped


lineStandard Model Featuresline

Includes ALL features as shown above plus:

  • Storage of 2,500 datasets—stored readings can be viewed or downloaded
  • Auto Log mode runs unattended on batteries for up to 60 hours or continuously via USB


line
Specifications
line

SpecificationsRangeAccuracyResolution
Surface Temperature–40˚ to 80˚ C± 0.5˚ C0.1˚ C
80˚ to 190˚ C± 1.5˚ C0.1˚ F
–40˚ to 175˚ F± 1˚ F0.1˚ C
175˚ to 375˚ F± 3˚ F0.1˚ F
Infrared Surface Temperature*–70˚ to 380˚ C ± 1˚C + 1%** 0.1˚ C
–94˚ to 716˚ F0.1˚ F
Air Temperature–40˚ to 80˚ C ± 0.5˚ C0.1˚ C
–40˚ to 175˚ F± 1˚ F0.1˚ F
Humidity0 to 100%± 3%0.1%
Wind Speed†0 to 20 m/s± 3% Full Scal0.1 m/s
0 to 44 mph0.1 mph

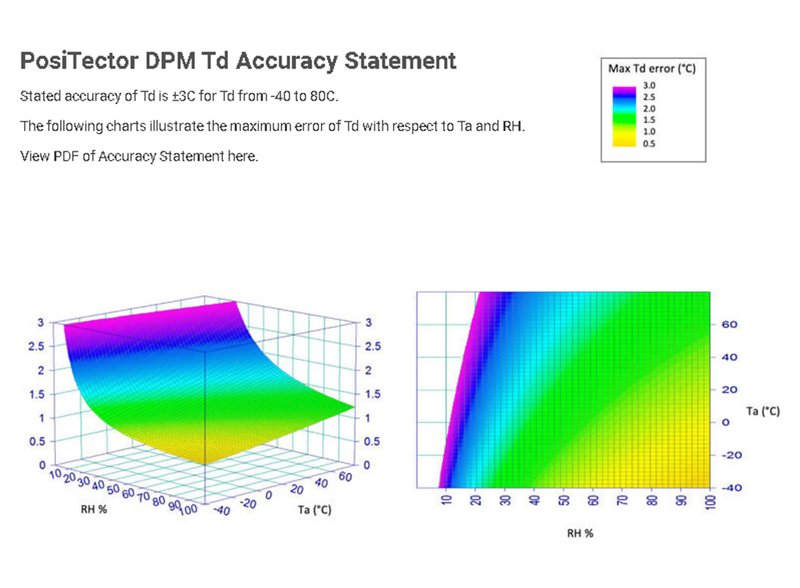

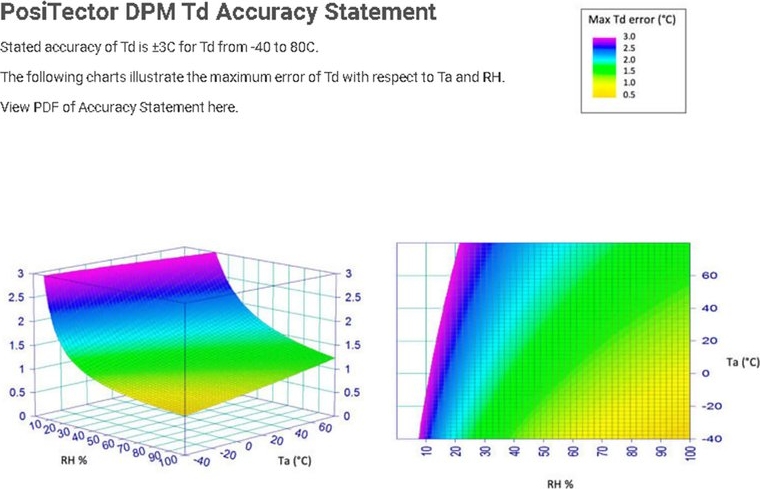

Dew Point–60˚ to 80˚ C± 3˚ C‡0.1˚ C
–76˚ to 175˚ F± 5.4˚ F‡0.1˚ F

*DPM IR models only
** At 23˚ C ambient
† DPM A models only
‡dependent on RH.
