Name: Tensitron ACM-150-CWT Mechanical Aircraft Cable Tension Meter, 10-150 lbs, Cable Selection 5 CWT, 10 CWT, 15 CWT, 20 CWT, 25 CWT
Brand: Tensitron
SKU: 564
Price: 1175.00 USD
Availability: InStock

Tensitron ACM-150-CWT Mechanical Aircraft Cable Tension Meter, 10-150 lbs, Cable Selection 5 CWT, 10 CWT, 15 CWT, 20 CWT, 25 CWT

See More Aircraft Cable Tension Meters

Quick, easy, one-handed operation

Lightweight, portable

Built-in cable selection – no loose, separate risers

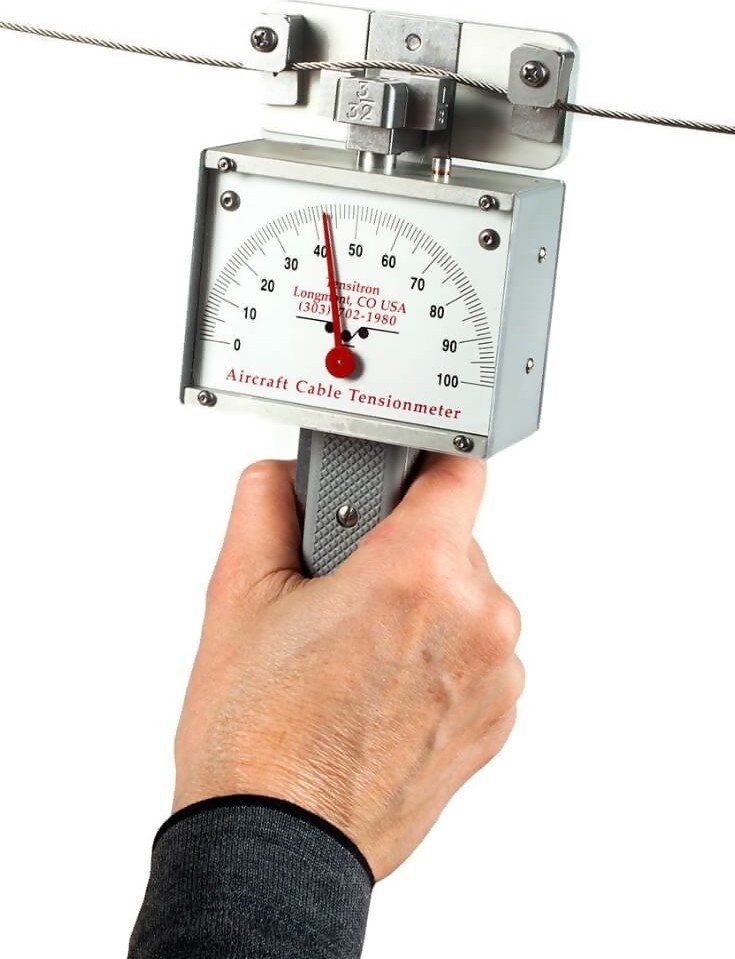

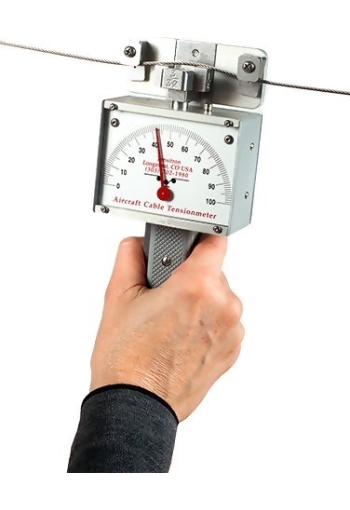

Keep aircraft flying safely with Tensitron ACM aircraft tension meters. Tensitron ACM tension meters quickly and easily verify accurate cable tension. No more fumbling with risers with the built-in cable selection. Plus, calibration charts are attached to the meter.

ACM instruments are designed to measure flexible cables with diameters from 1/16” up to 1/4”, CWT cable sizes from 5 to 25, and tension from 5 to 600 pounds. Calibrations for other cable sizes are available upon request

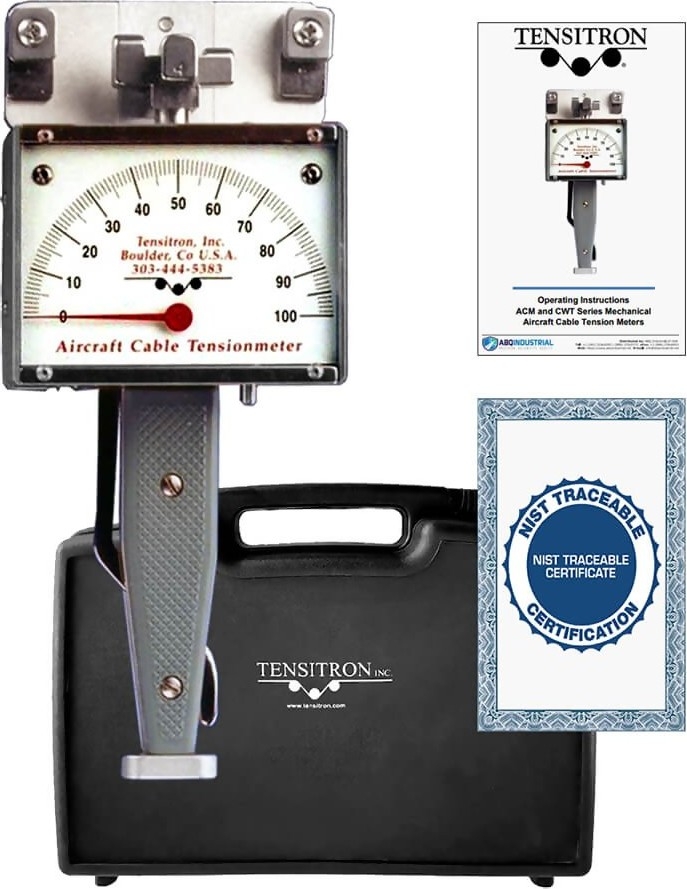

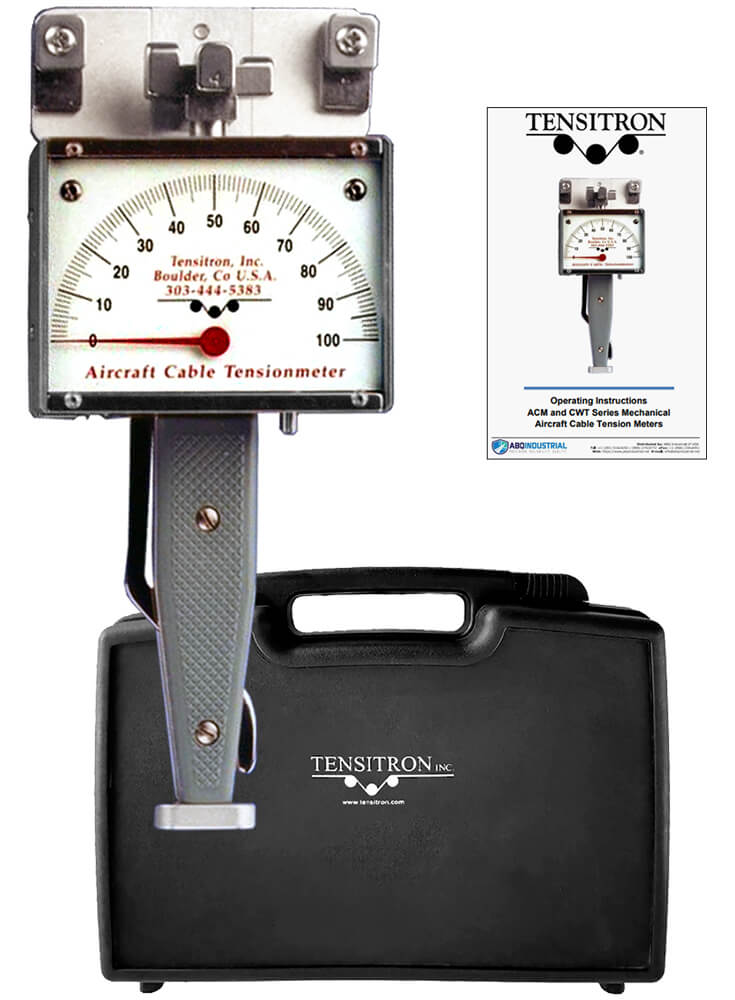

Kit Contents

Tensitron ACM Mechanical Aircraft Cable Tension Meters
NIST-Traceable Calibration Certificate
Operating Instructions
Durable lightweight carrying case with protective foam inserts

Features

Fast

Quickly test control cable tension
Quick, easy, one-handed operation
Calibration chart attached to meter for quick, easy access
Compact design allows access to small spaces

Accurate

Improve aircraft safety and performance
Measures wide range of aircraft cables, with inch or CWT diameters
Tension ranges from 5 to 600 lb.

Dependable

Save time and costs with durable construction
Durable, reliable construction
Textured handle for secure grip
Operates without electricity or charging
Built-in cable selection—no loose, separate risers

Convenient

User-friendly and easy to transpor
Lightweight, portable
Memory Lock Pointer holds readings taken in hard-to-reach areas
Includes carrying case and NISTtraceable calibration certificate

Specifications

Calibrated for stainless steel, uncoated	7x19 cables (except 1/16 in. which is 7x7)
Dimensions	all models except ACM-600 are 8.24 in. long x 3.38 in. wide x 1.56 in. thick. ACM 600 is 8.24 in. long x 5.20 in. wide x 1.56 in. thick
Weight	approximately 21 oz.
Warranty	one year against factory defects

Comparison Chart

Model	Range		Cable Selection	Accuracy (± Full-Scale)
ACM-100	5 - 100 lb.	3 - 45 kg	1/16, 3/32, 1/8, 5/32"	4%
ACM-200	25 - 200 lb.	12 - 90 kg	1/16, 3/32, 1/8, 5/32, 3/16, 1/4"	4%
ACM-300	40 - 300 lb.	19 - 136 kg	3/32, 1/8, 3/16, 1/4"	6%
ACM-400	40 - 400 lb.	19 - 181 kg	3/32, 1/8, 5/32, 3/16"	6%
ACM-600	40 - 600 lb.	19 - 272 kg	1/8, 5/32, 3/16, 1/4"	8%
ACM-150-CWT	10 - 150 lb.	5 - 68 kg	5, 10, 15, 20 & 25 CWT	4%
ACM-300-CWT	40 - 300 lb.	19 - 136 kg	10, 15, 20 & 25 CWT	6%
