Name: Dillon Quick Check-T Tension Meter with Bluetooth Output
Brand: Dillon
SKU: 2063

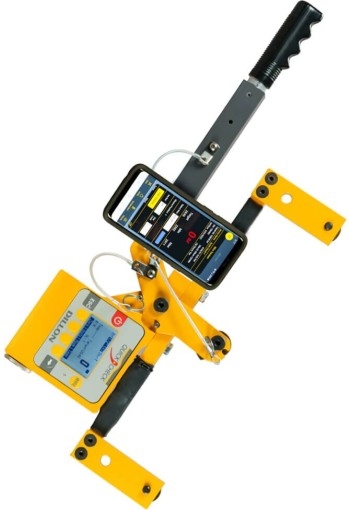

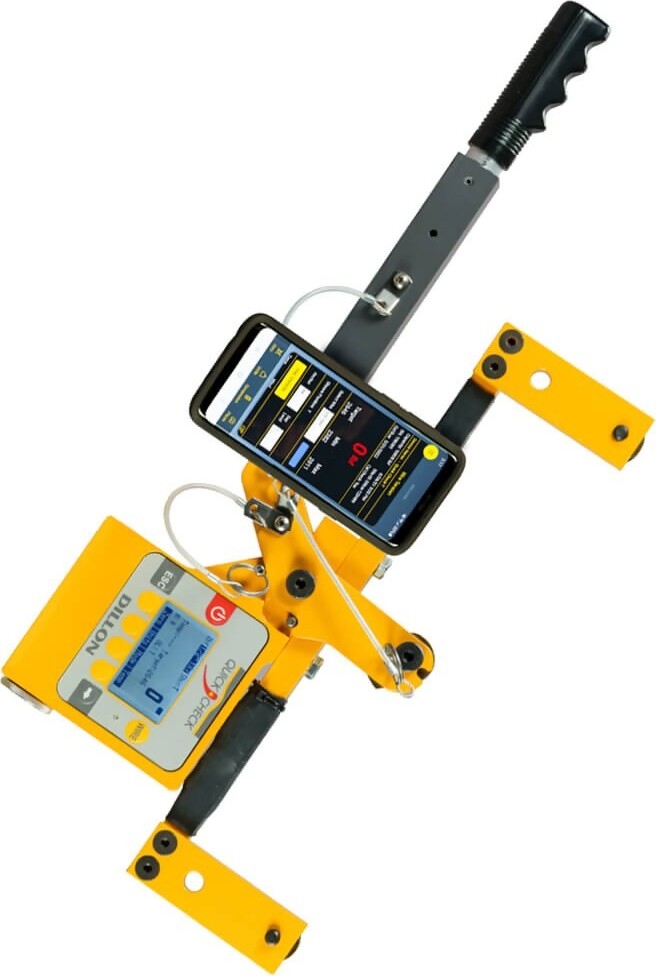

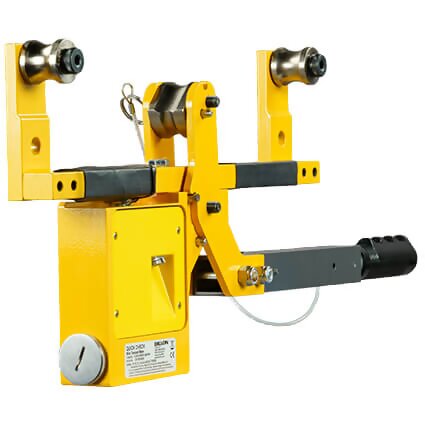

Dillon Quick Check-T Tension Meter with Bluetooth Output

See More Cable Tension Meters

Cable Tension Meter with Bluetooth Output for Comprehensive Site Report Generation

10,000 lb/45 kN/4500 kg Capacity

Measures cables from 3/16" to 1"

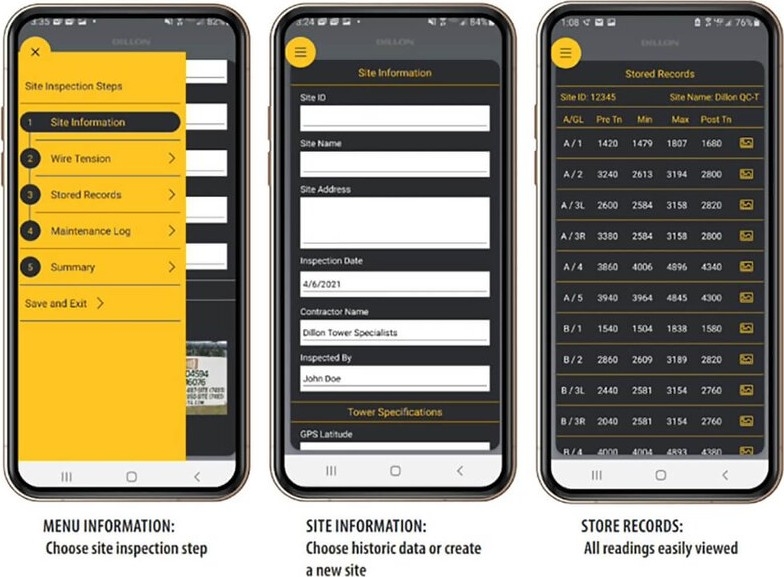

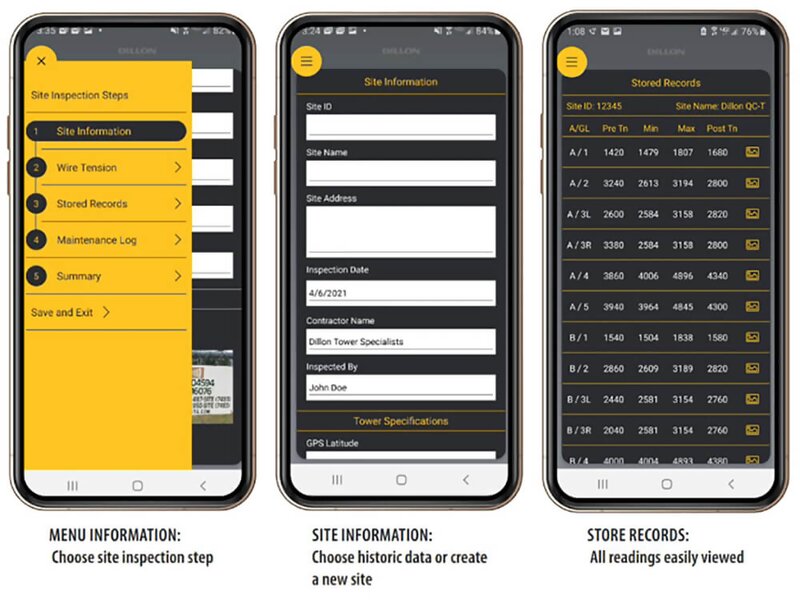

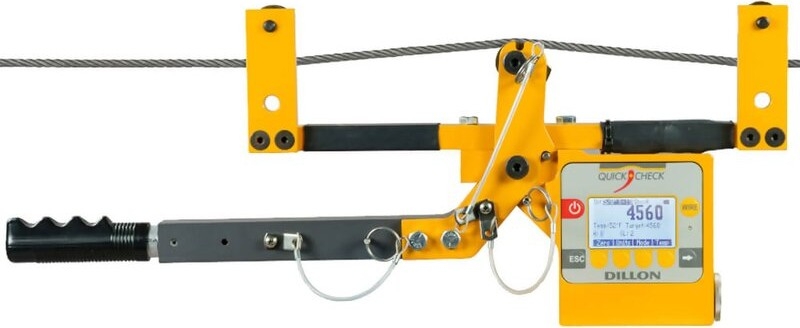

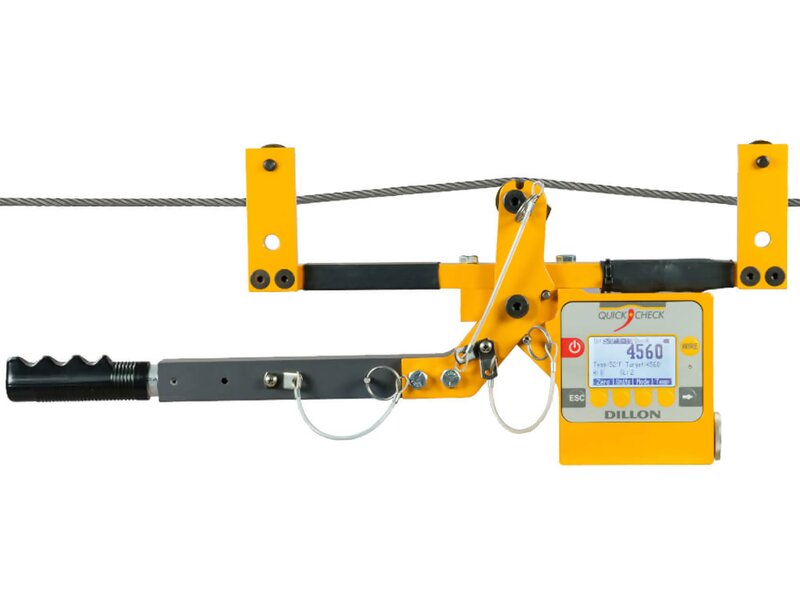

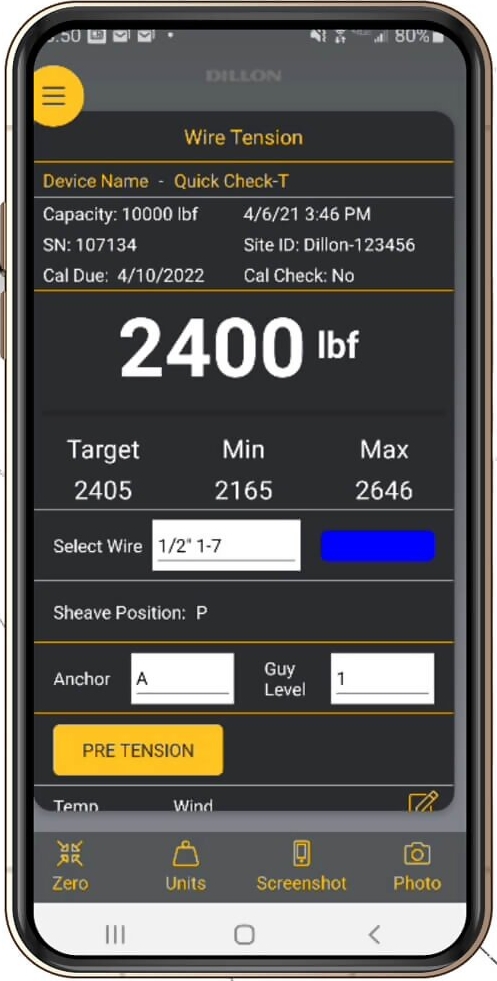

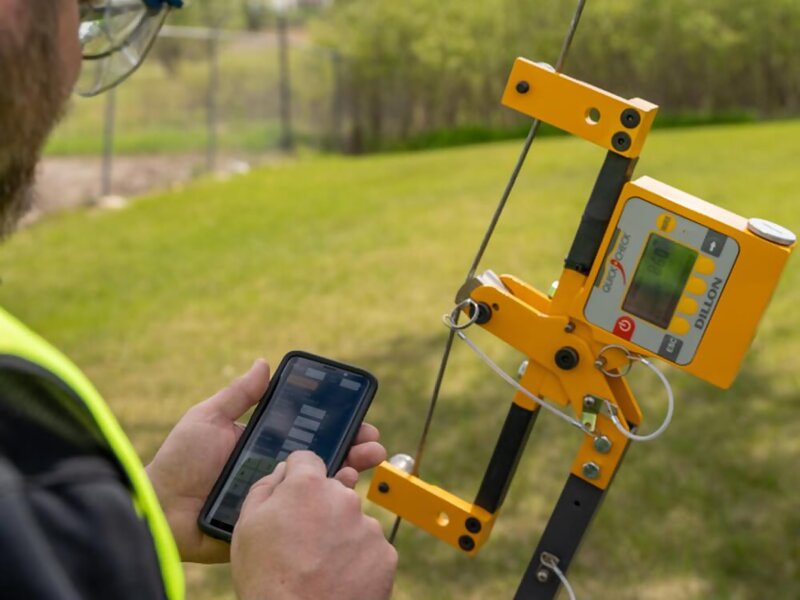

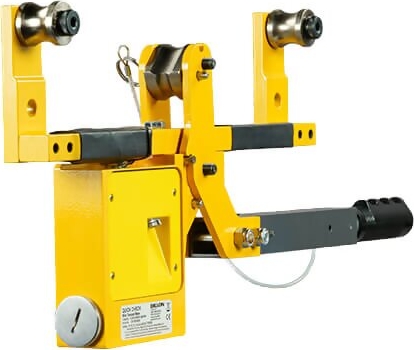

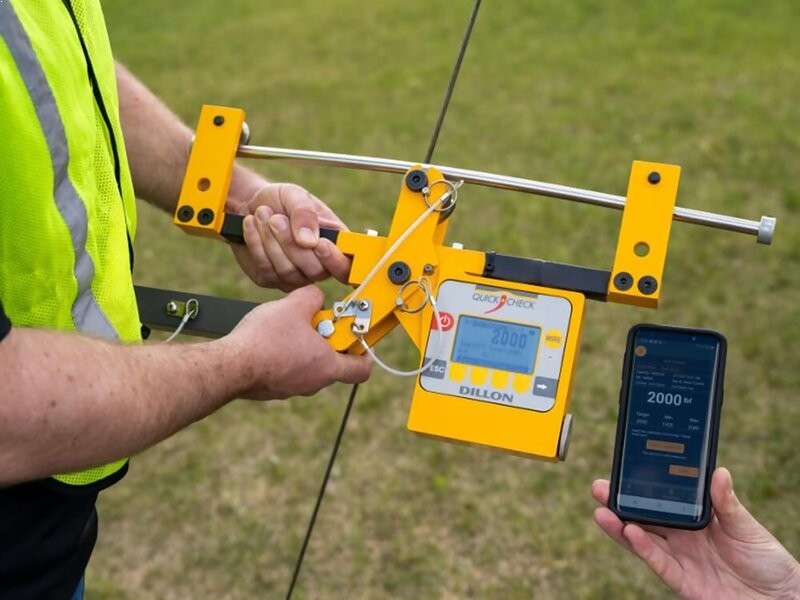

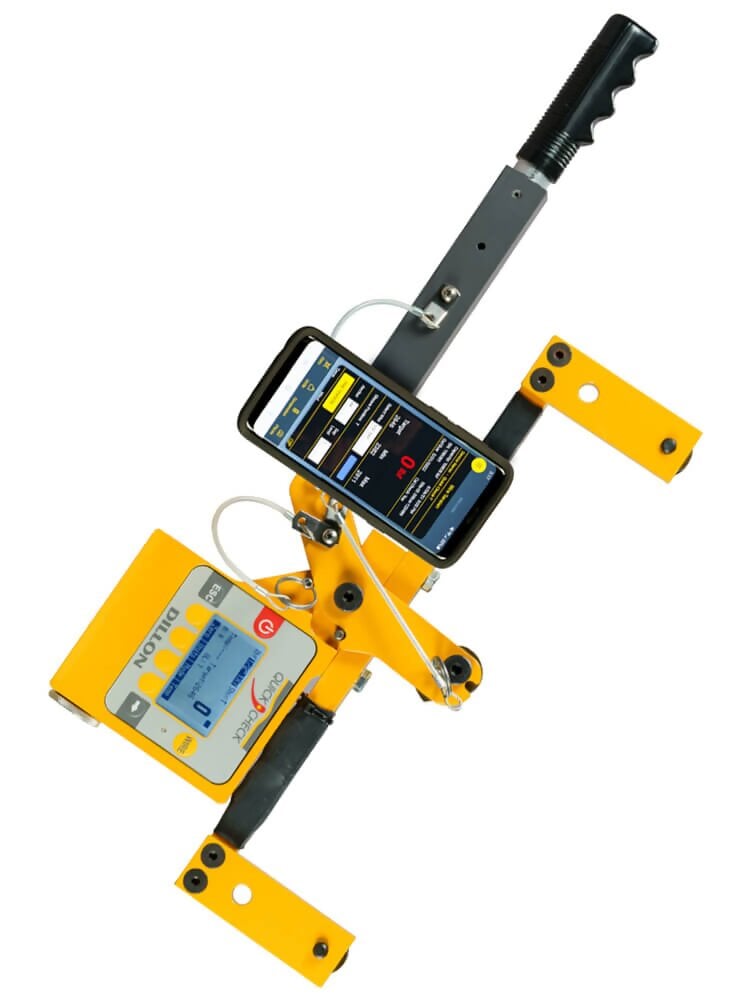

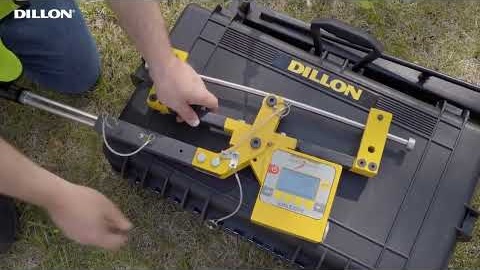

The Dillon Quick Check-T tension meter with Bluetooth output is designed for precise tension measurement of tower guy cables. The included mobile app produces comprehensive reports of tension readings with GPS location, date, and time which can be easily exported once the job has been completed.

The QC-T can be placed on a cable, measure its tension, and removed in under three seconds! There are no complex lookup tables or conversion charts required. The operator can quickly select from 20 different wire sizes and types stored in QC-T's memory. The Check-Tensioning mode graphically displays the current and target tensions for an extremely quick setting of line tension. Even the infrequent battery changes are quick.

The QC-T is used in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires, zip lines, pretensioned cable barriers, bridges, elevators, winch rope, overhead electric transit wires, fall arrest systems, hll horizontal life lines, aircraft cables and utilities.

line

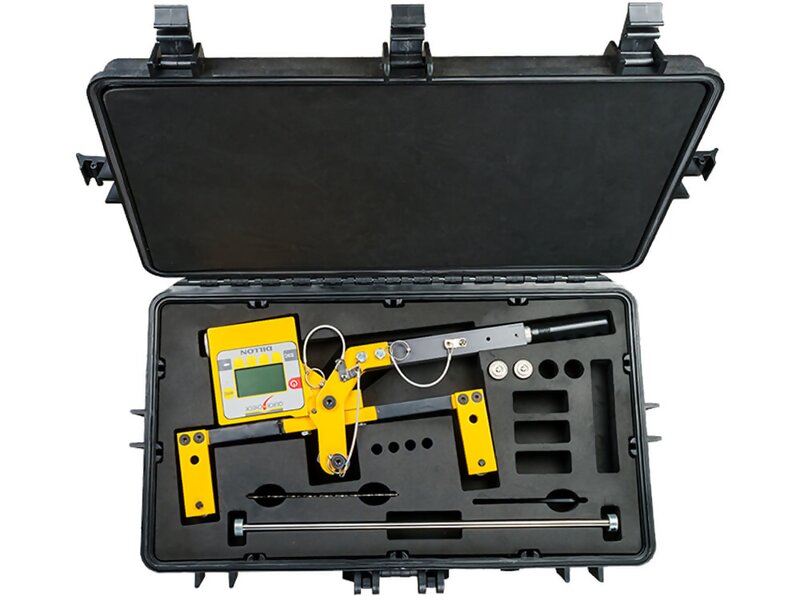

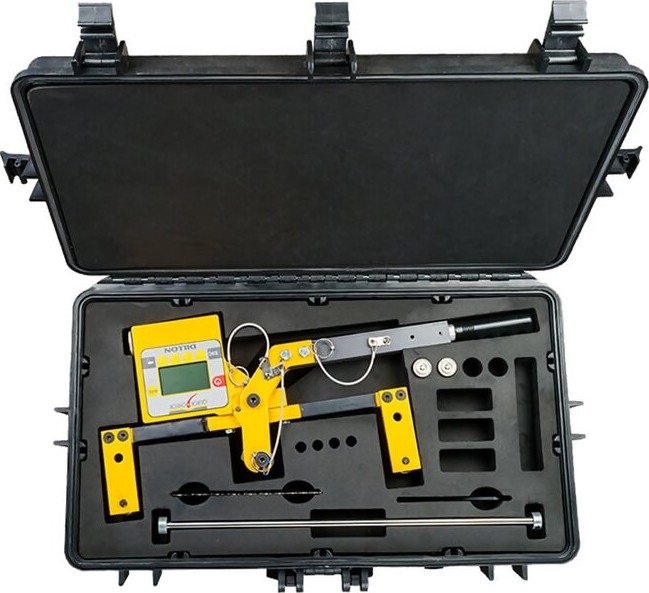

Kit Contents
line

Dillon Quick Check-T tension meter with Bluetooth
Calibration check rod
Wire diameter gauge
Batteries
Instruction Manual
Heavy-duty Carrying Case

line
Features
line

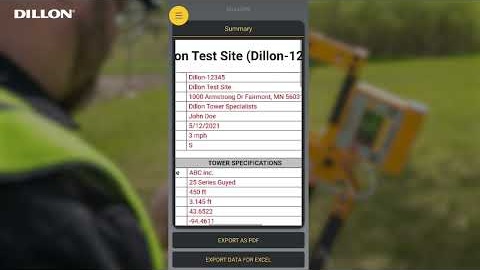

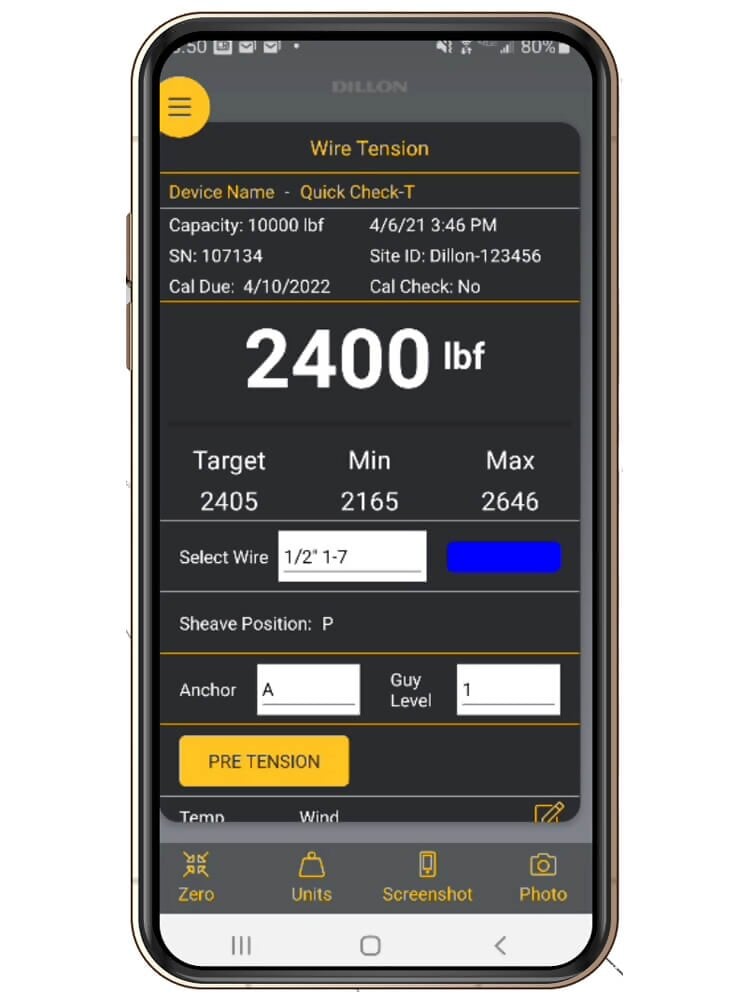

Bluetooth Output for Comprehesive Site Report Generation View Sample

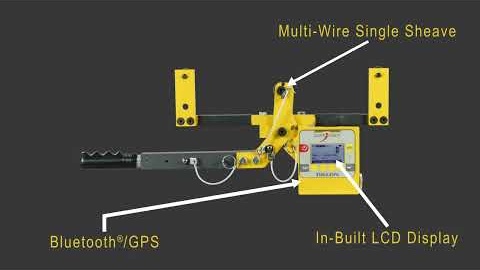

Multi-wire single sheave
Automatic target tension calculations
Ability to capture pre and post tension readings
2 year warranty

line
Specifications
line

Capacity	10,000 lb/45 kN/4500 kg
Accuracy	±3% instrument capacity
Calibrations	Up to 20 can be stored independently
Operating Temperature	-4°F to 158°F (-20°C to 70°C)
Units of Measure	lbf, kgf & Newtons
Size	0 x 23 x 3” (25 x 59 x 8 cm)
Weight	about 11 lb (5kg)
Display	Dot-graphic LCD display supports full text
Environmental Protection	Suitable for continued outdoor use
Protection	Hard polymer storage case included
Power	2 x AA batteries with 120+ hours life (backlight off)

line
Calibration
line

The QC-T does not include calibration; each calibration is $132.

When listing cables you must provide the diameter & construction, for example;
Cable 1: 1/2", 1x7
Cable 2: 3/4", 1x19

The QC-T-TOWER includes 16 calibrations for the following size cables:

3/16" 1x7	1/4" 1x7	5/16" 1x7	3/8" 1x7
7/16" 1x7	1/2" 1x7	1/2" 1x19	9/16" 1x7
9/16" 1x19	5/8" 1x7	5/8" 1x19	11/16" 1x19
3/4" 1x19	13/16" 1x19	7/8" 1x19	1" 1x19

line
Related Products
line

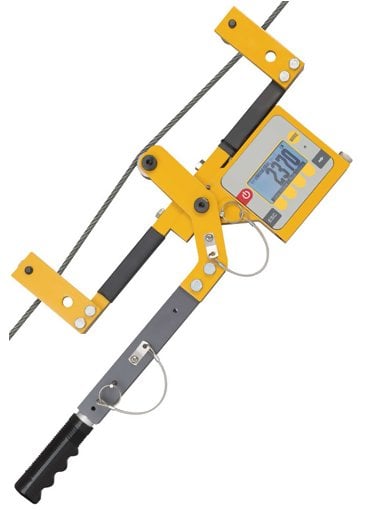

Dillon Quick-Check "Red"
