Honigmann 136-3 Heavy Duty Tension Meter

See More Cable Tension Meters

Heavy Duty Tension Meter

12 Ranges 5kg up to 500kg

200% overload protection

Twelve (12) Ranges - Up to 500 Kg (1100 lbs)
Cable Diameters - Up tp 30 mm (1.25")

The new Honigmann 136-3 Heavy Duty Tension Meter is designed for use on larger diameter materials such as cables, large diameter wire, wire ropes and similar materials up to 30mm (1.25").

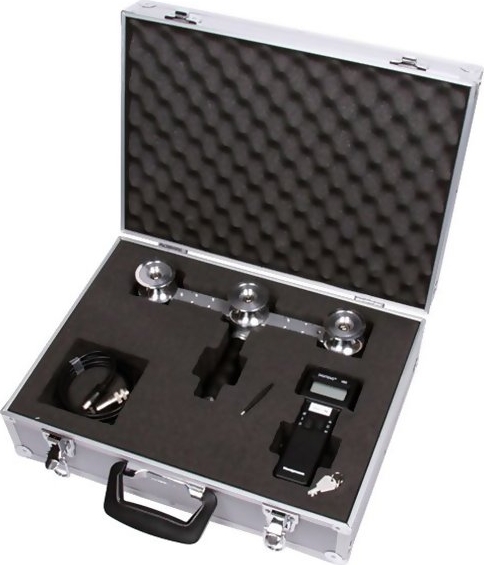

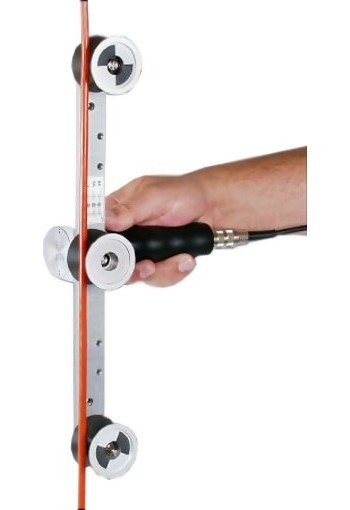

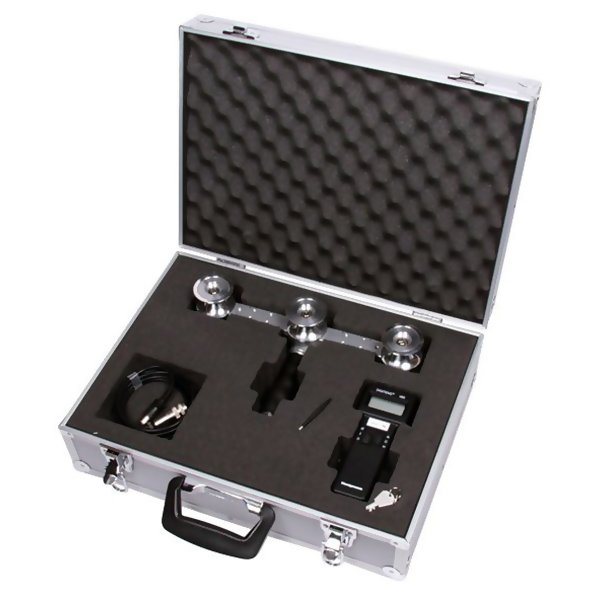

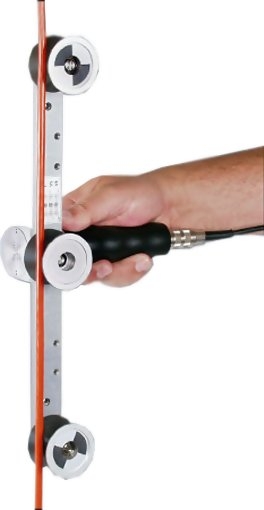

It is designed to minimize the effects of different material rigidities when measuring on a variety of material sizes and also features a unique "tritens" system where the material can be threaded through the 3 rollers in 3 distinct patterns.

Each threading pattern provides a different multiplying factor. For instance, assuming the Threading Pattern "D" below, (where all 3 rollers are on the same side), versus Threading Pattern "E", where one roller is on one side and 2 rollers are on the other side. Pattern "E" provides a multiplier of approximately 5x compared to threading Pattern "D".

This permits the user to use the most appropriate threading pattern based on the tensions required for a specific material. In other words, the same hand-held sensor can be considered to have 3 different capacities, (depending upon threading pattern "D", "E" or "F). For example, when using a 400 mm wide outer roller bracket.

100 Lb Capacity when using "D"
25 Lb Capacity when using "E"
15 Lb Capacity when using "F"

S6 Model for Tire Cord

For Tire Cord and similar applications, we offer our model S6 which features oversized 42 mm diameter V-Grooved rollers with ceramic plasma coating to withstand the high speeds, forces and abrasion normally found when measuring Tire Cord Tension.

line
Features
line

One sensor for three measuring ranges Tritens®
Minimal material deflection
Easy material threading
Tension ranges up to 500 Kg (1100 lbs)
Unaffected by changes in material diameter and rigidity

line
Specifications
line

Accuracy	± 2% Full Scale, typical (depends on material and calibration)
Outer Roller Spacing (c:c)	350, 400 or 500 mm
Material Deflection	1.5 degrees
Guide Rollers	30 mm Dia., V-grooved or Dual-Radius U-Grooved
Roller Material	Aluminum, Steel, other depending upon application
Overload Protection	200% +
Calibration Certificate	Optional
