Honigmann CBM Cable Tension Meter

Honigmann CBM Cable Tension Meter - CableBull

See More Cable Tension Meters

13 Capacities up to 4,500 lbs / 20kN

For material diameters: 0.112" - 0.709" / 3 to 18mm

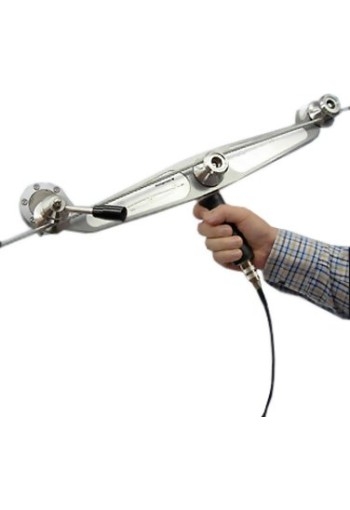

The new Honigmann CBM Cable Tension Meter - CableBull is a technical innovation for mobile tension measurement. The unique design allows for measurement for any material diameter between 0.112" - 0.0.709" (3 to 18mm) without custom programming or setup.

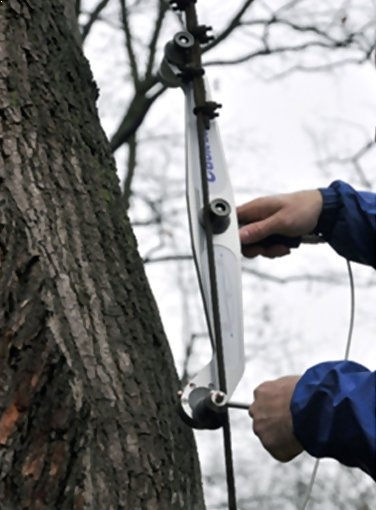

Designed for measuring wires & cables that are anchored/fixed at both ends (closed system) such as guy wires, support cables, tethers and more. Also commonly used on Kevlar, fiberglass and other hi-strength materials when used in a similar applications. This CBM can also be considered a Rope Tension Meter designed to measure the static tension in wire ropes, cables, belts, ...

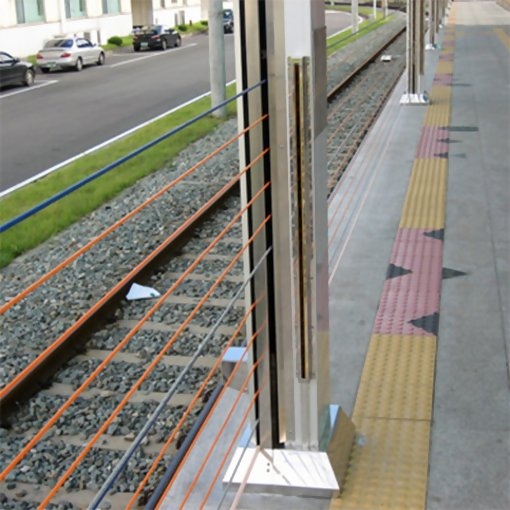

The 136-3E employs a unique roller configuration and measurement scheme to minimize the deflection of the wire/cable. The total wrap angle of the material over the center sensing roller is 3 degrees eliminating all measurement errors! Applications include elevator load measuring, tension equalization in elevator ropes, rope sets, service lifts inside wind turbine systems, tensioning, protecting cranes and hoists from overload, tension measurement in stay ropes / cables, suspension ropes and railway catenary ropes, vehicle pull test, for safe loading in material handling, load securing control, tension control of lashing straps, equalize loadings on multi cable assemblies, and much more.

line
Features
line

No calibration or programming required
High precision fabrication from Stainless Steel and Aluminum for trouble-free use even in the toughest in-field applications
Sophisticated roller geometry allows the CBM to measure with an error of less than 1%.
Choice of "front side" or "rear side" position of Lever-Lock mechanism which opens and closes the measuring system

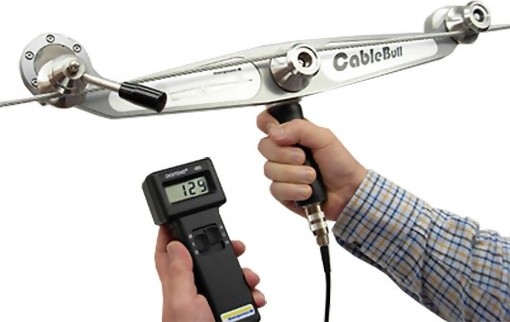

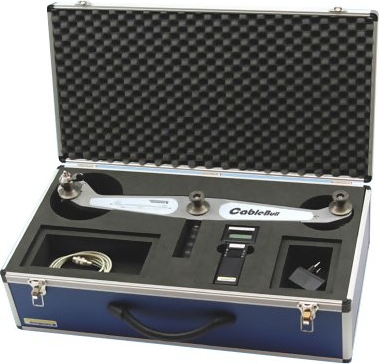

Connects to lightweight, battery-powered tension indicator for maximum portability and ease of use

line
Specifications
line

Accuracy	± 1% Full Scale or better
Outer Roller Spacing (c:c)	400, 500 or 600 mm
Wrap Angle	3 Degrees
Additional Length Effect	0.12 mm

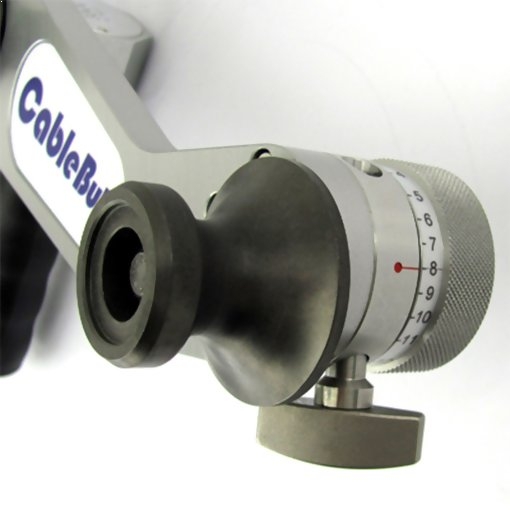

Guide Rollers	V-Grooved Aluminum 47/21 mm (OD/Root Diameter)
Roller Material
Overload Protection	200% +
Calibration Certificate	Optional

line
Ranges
line

Model	Range	Kg	Lbs
CBM-50	0 - 50 N	0 - 5 Kg	0 - 10 Lbs
CBM-100	0 -100 N	0 - 10 Kg	0 - 20 Lbs
CBM-200	0 - 200 N	0 - 20 Kg	0 - 45 Lbs
CBM-300	0 - 300 N	0 - 30 Kg	0 - 65 Lbs
CBM-500	0 - 500 N	0 - 50 Kg	0 - 110 Lbs
CBM-1K	0 - 1000 N	0 - 100 Kg	0 - 225 Lbs
CBM-2K	0 - 2000 N	0 - 200 Kg	0 - 450 Lbs
CBM-3K	0 - 3000 N	0 - 300 Kg	0 - 675 Lbs
CBM-5K	0 - 5000 N	0 - 500 Kg	0 - 1100 Lbs
CBM-10K	0 - 10000 N	0 - 1000 Kg	0 - 2250 Lbs
CBM-20K	0 - 20000 N	0 - 2000 Kg	0 - 4500 Lbs

line
Related Products
line

D-485
Digital Tension Indicator with Built-In Amplifier

Automatic zero setting
"Peak" function retains maximum reading on display
