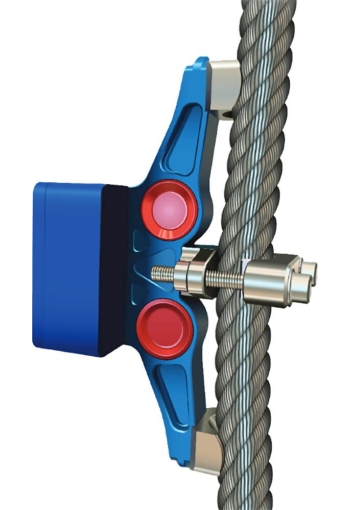

Straightpoint BOLT Fixed-Mount Cable Tension Meter

See More Cable Tension Meters

Straightpoint BOLT Fixed-Mount Cable Tension Meter

See More Cable Tension Meters
Call for price
    warrenty

    Product Description
    Fixed-Mount Cable Tension Meter
    Capacity 20,000lb / 10,000kg
    Measures cables and up to 1.25” or 32mm diameter

    The Straightpoint BOLT Fixed-Mount Cable Tension Meter, is a lightweight wire rope tension meter or shunt tension meter for fast and accurate measurement of tensions up to 20,000lb or 10,000kg and up to 1.25” or 32mm diameter.

    Manufactured, using an integral, high accuracy, wireless module the BOLT can also be paired with and transmit load data to a Crosby SP Handheld plus (SW-HHP), which will enable you to read up to four load cells simultaneously.

    Connected to INSIGHT software, up to 126 BOLTs can be connected simultaneously enabling live readings of up to 700m or 2300ft. View and log load data from connected BOLT tension meters plus totals loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.

    Coming soon - In combination with a Crosby SP LoadConnect base station, loads can be monitored remotely. The base station transmits data to a cloud software solution, LoadConnect. This software solution has a dashboard that facilitates a user to see live loads, monitor errors, access historical readings, and view analytics and asset management. This will provide reduced site visits, improve decision making and safely monitor line tensions from any distance from anywhere in the world.

    Mount it permanently or semi-permanently on a wire rope, guy wire or cable, or multiple legs of a cable support structure such as those used on cell towers, bridges, flare stacks, antennas and masts. Or in "critical" architectural wire rope installations as well as zip lines.

    Constructed from aerospace-grade aluminum the BOLT digital tension meter is lightweight and easy to handle and operates on wires that are already under tension. Once installed it enables the operator to quickly check tension on cables or wire ropes set at any angle.

    Supplied in a purpose-made robust packaging, and inclusive of an SW-D dongle, to make on-the-spot calibrations to achieve greater accuracy of 2-3%; standard factory accuracy is 3-5%.


    line
    Kit Contents
    line

    • Straightpoint BOLT Fixed-Mount Cable Tension Meter
    • Calibration & proof test certificate
    • Multi-lingual user manual
    • RFID Tagged
    • 2-year warranty
    • Design validated by F.E.A.


    line
    Features
    line

    • Proprietary 2.4 GHz Wireless
    • Leading Wireless Range of 1000m/3280ft when connected to SW-HHP
    • Unrivalled Battery Life of 1200hrs
    • Internal Antennae
    • Remote On-Off from handheld display or software
    • Leave mounted in a permanent position on a wire rope or cable

    Applications

    • Guy wire maintenance and monitoring on cell towers, bridges, flare stacks, antennas and masts.
    • Guy wire Tower Plumb and Tension
    • EHS guy wire, Turnbuckle tensioner.
    • Architectural wire rope installations
    • Median cable barrier tensioning
    • Utility cable overhead line monitoring
    • Governor & compensating wire rope maintenance
    • Zip lines & assault course testing
    • Metro, tram and rail transit electric wires & catenary testing
    • Ski lifts
    • Tensioned trellis systems


    line
    Specifications
    line

    Max load10te / 22,000lb
    Resolution0.01te / 20lb
    AccuracyTypically 3-5%
    Measuring Unitskg, lb, tonne & kN (selectable)
    Weight2.1kg / 4.6lb
    Power4 x 'AA' cell batteries
    Battery life1200 hours
    Operating temperature-10 to +50 °C / 14 to 122˚F
    ProtectionIP67/NEMA6
    Communication2.4GHz
    DimensionsRefer to PDF brochure


    lineRelated Productsline

    Straighpoint SW-HHP Hand-Held Display

    • Wireless Range 700 metres

    line

    StraightPoint INSIGHT Software

    • Logging at timed intervals, manual or on overload/underload


    line
    Downloads
    line

    Straightpoint BOLT Fixed-Mount Cable Tension Meter - Data Sheet
    Straightpoint BOLT Fixed-Mount Cable Tension Meter - Instruction Manual
