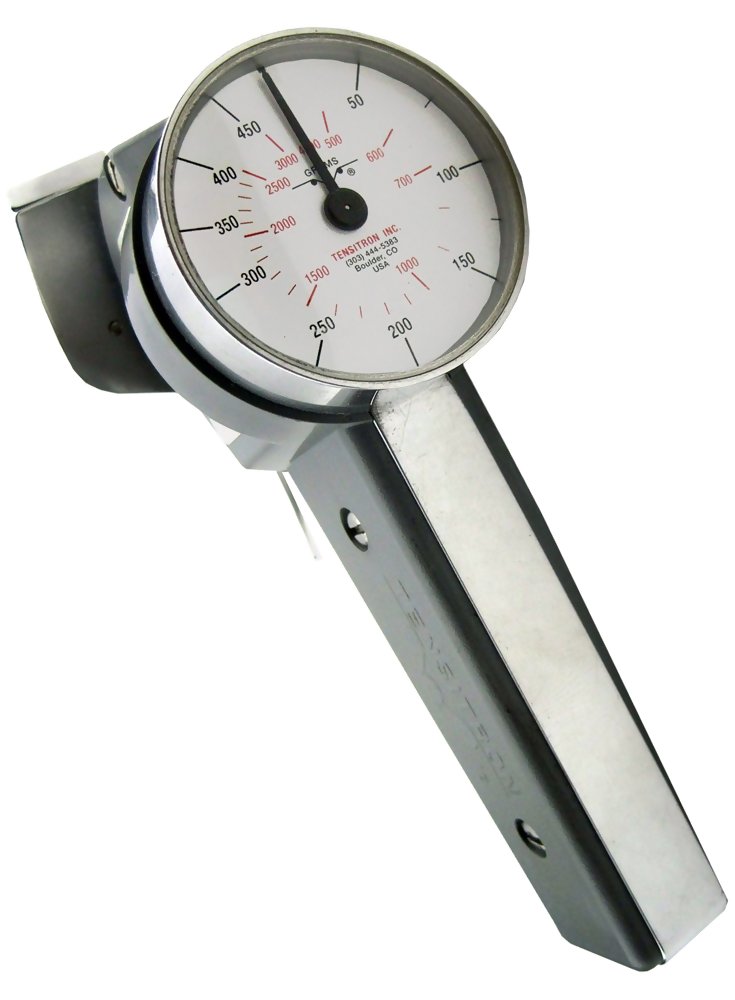

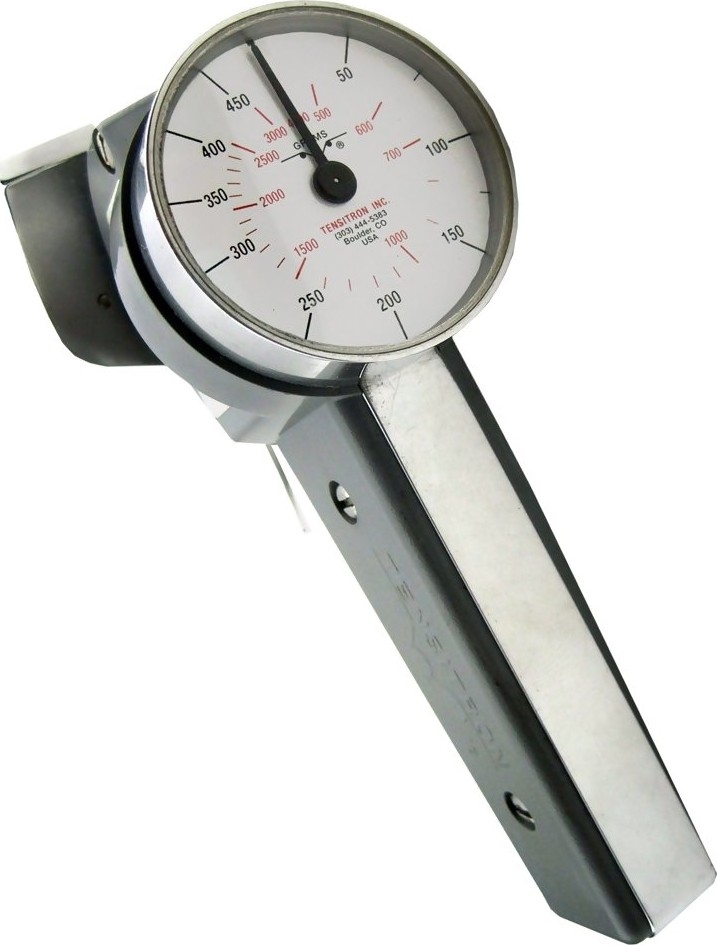

Maintain process and quality control in manufacturing and testing environments with the Tensitron TR tension meters. The Mechanical Trigger Tension Meter for Fine Wire & Filaments is used to check tensions on wire, yarn, fiber optics, film, tape, narrow fabrics, and flat materials. TR instruments provide measurable tension control for the major wire, textile, coil winding, EDM, fiber optic, and synthetic materials industries. For EDM wire, order TR-4000.

TR tension gauges are calibrated to one specific material for a direct tension reading. Digital instruments can be calibrated for up to ten different materials

Kit Contents

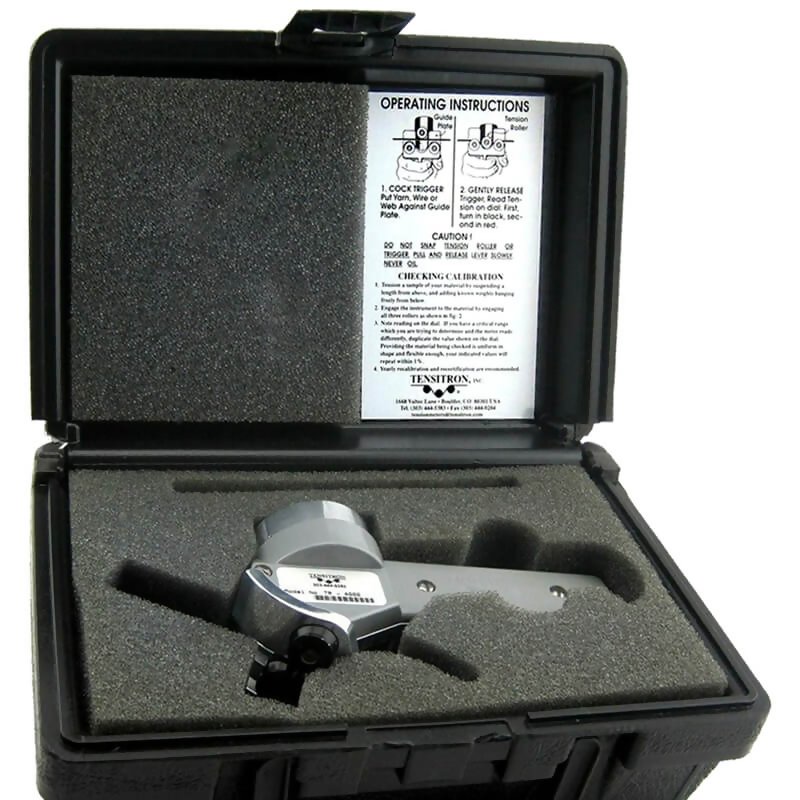

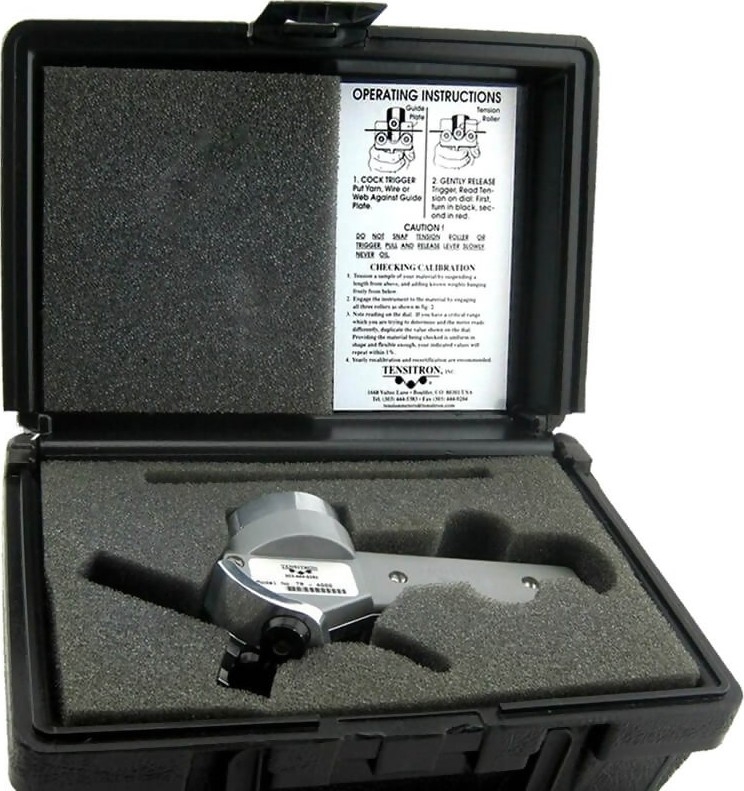

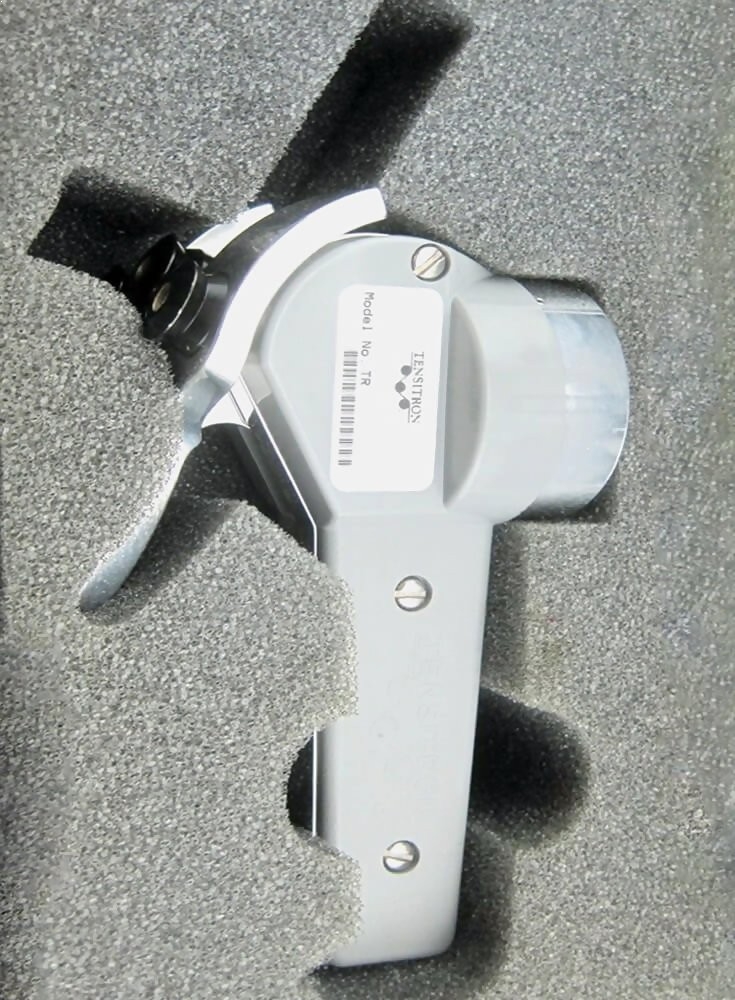

Tensitron TR Wire Filament Mechanical Tension Meter NIST-Traceable Calibration Certificate Operating Instructions Durable lightweight carrying case with protective foam inserts

Features

Quick, easy tension testing for fine wires, filaments, and other materials

• Improves yields and first quality
• Ensures consistency in your manufacturing or testing environments

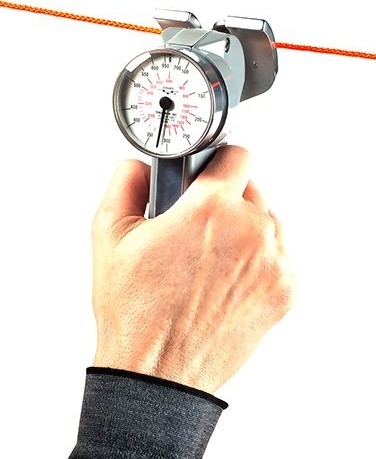

Dependable, Convenient Tension Measurement

• Quick, easy, one-handed operation
• Lightweight, portable, and compact
• Durable construction
• Measures moving or stationary materials
• Tension ranges from 0 to 5,000 grams
• Equipped with rollers for dynamic or static measurement
• Custom rollers available for specialized applications
• Mounting Bracket allows for continuous, hands-free monitoring (optional)
• Magnetic dampening stabilizes readings
• Right- or Left-Hand Operation
• Corrosion-resistant versions available for damp environments
• Includes carrying case and NIST-traceable calibration certificate
• Warrantied for one year against factory defects

Versatile Tension Measurement for:

• Copper wire (up to 20 AWG)
• EDM wire, magnet wire (up to .8mm)
• Solid steel wire (up to .02”, .5mm)
• Stranded steel wire (up to .04”, 1mm)
• Yarn, thread, fibers, filaments
• Fiberglass roving
• Carbon fiber
• Fiber optic strands and thin cables
• Film, tape, ribbon (up to 1-1/2”, 38mm wide)
• Tubing (up to .2”, 6mm)

Specifications

Comparison Chart

* Calibrated for 1 material. Standard calibration is textile filament. Static or dynamic. For EDM wire, order TR-4000. V-groove roller for wire or filaments are standard. For other materials order Custom Roller Option.

Downloads

Tensitron TR Wire Filament Mechanical Tension Meter - Data Sheet

Tensitron TR Wire Filament Mechanical Tension Meter - Operating Instructions

Tensitron TR Wire Filament Mechanical Tension Meter - Dimensions
