Web Tension Meter

---

Accurately measures the running line tensions of dry or wet felts on papermaking machines

---

Measures static and dynamic web tensions

---

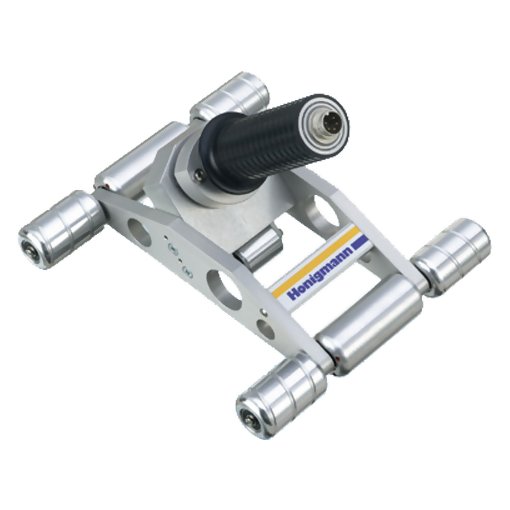

The Honigmann 136-2 Web Tension Meter accurately measures the running line tensions of dry or wet felts on papermaking machines. It can also be used for sieves as well as for certain fabric and woven products. And, because the 136-2 is portable, it can easily be moved from line to line as needed.

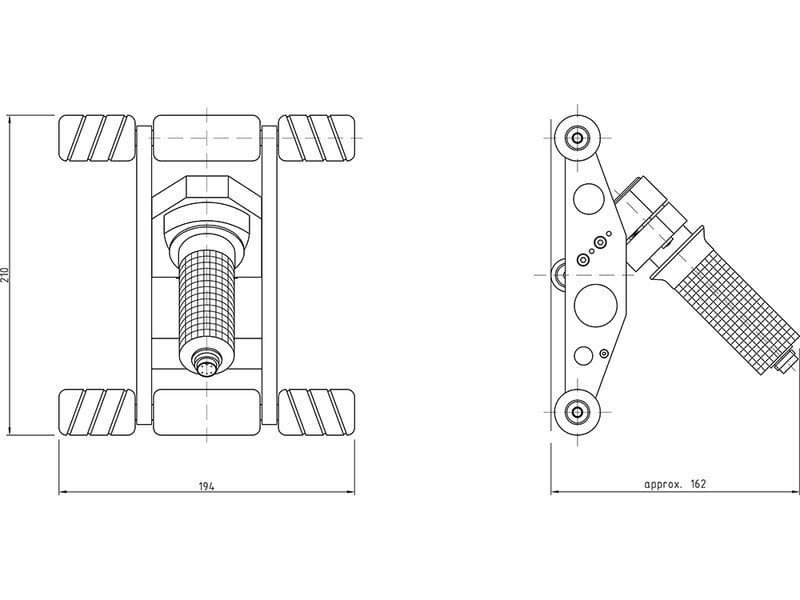

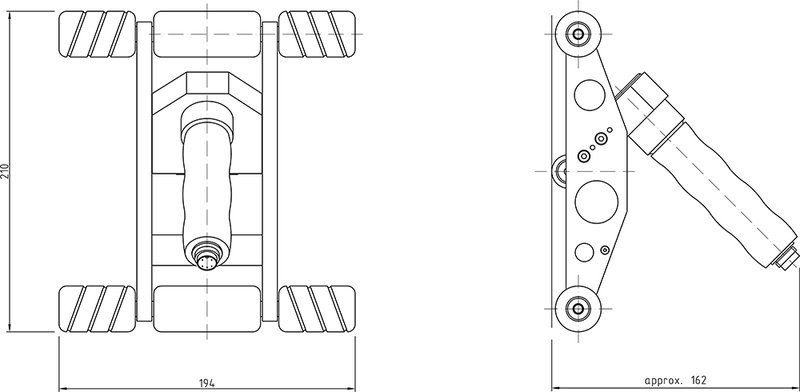

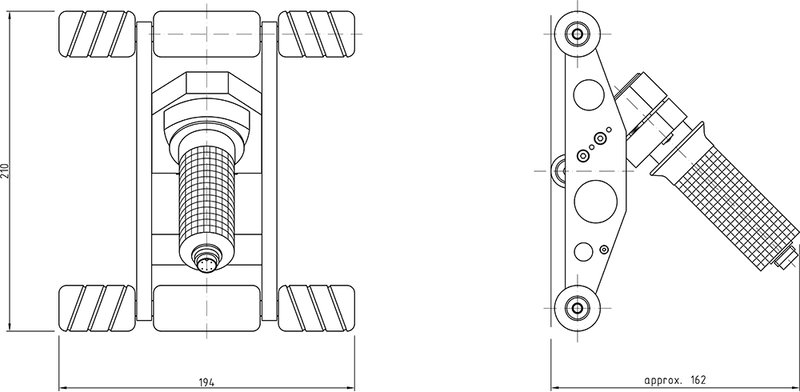

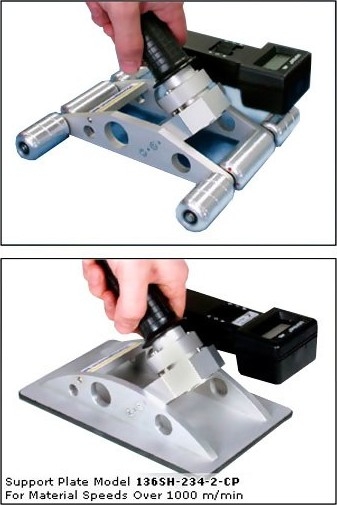

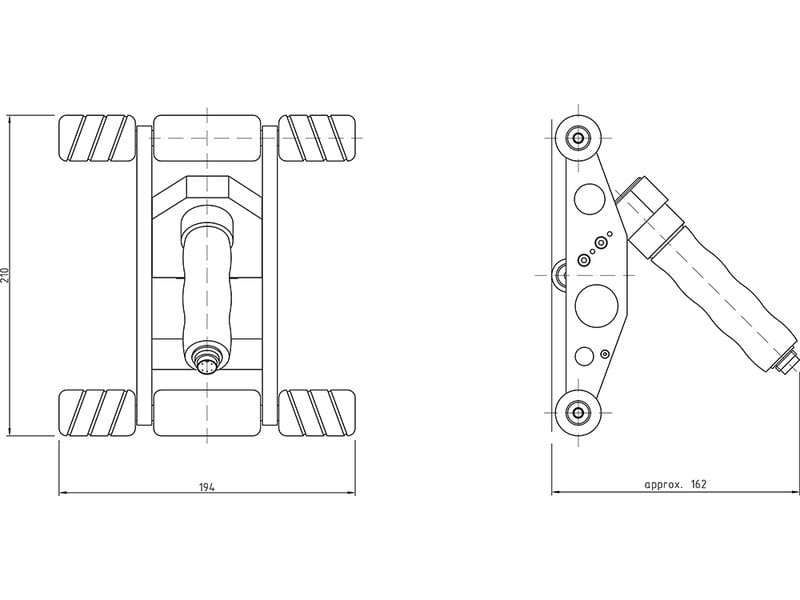

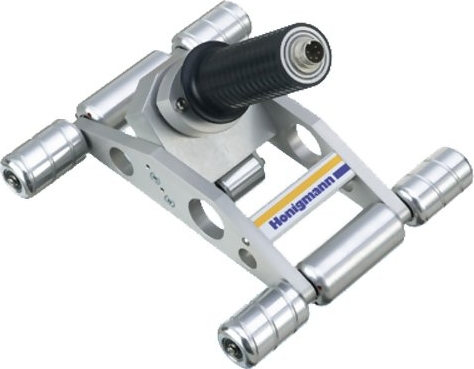

The Honigmann 136-2 Web Tension Meter features a spring-loaded handle, which eliminates errors, caused by uneven pressure applied by operators. It makes taking measurements as simple as pressing the sensor gently on the web until the handle reached the mechanical stop. Ball-bearing mounted rollers support the measurement head at speeds up to 1000 m/min. For higher speeds, a low friction, ceramic-coated stabilizing plate is offered.

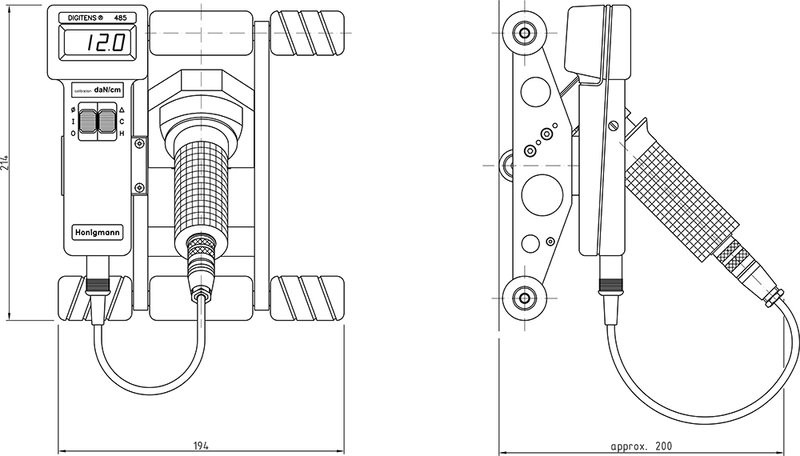

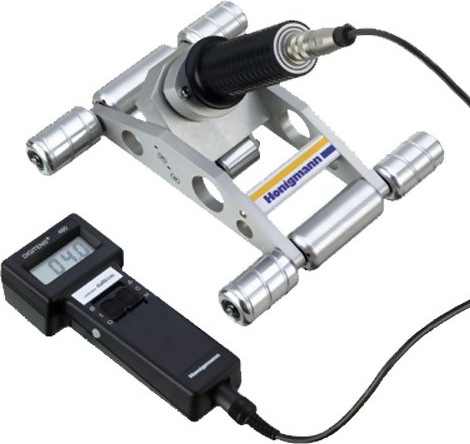

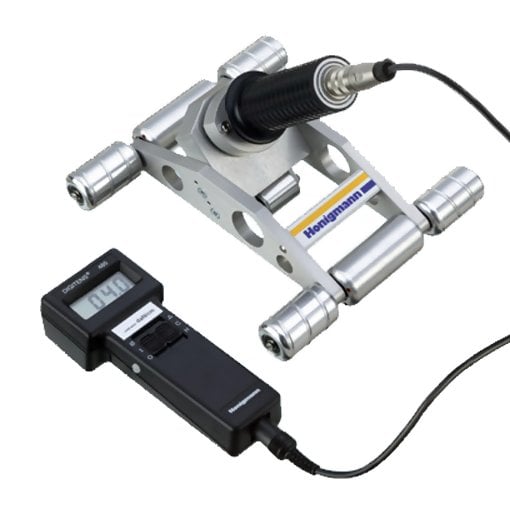

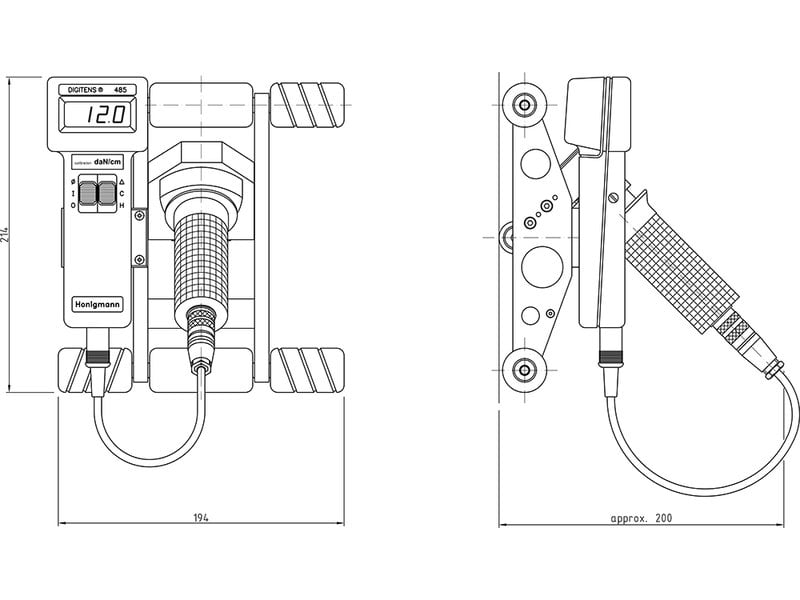

Not only does the 136-2 measure static and dynamic web tensions, but it also makes it possible to compare the tension in different parts of the web. The rugged 136-2 is fabricated from Stainless Steel and is water-resistant and rustproof, ensuring trouble-free use even in wet environments. The tension value is displayed on either the D485 Digital Tension Indicator or TM353 Analog model. The indicators can be mounted together with the sensor or used separately connected with a cable.

Kit Contents

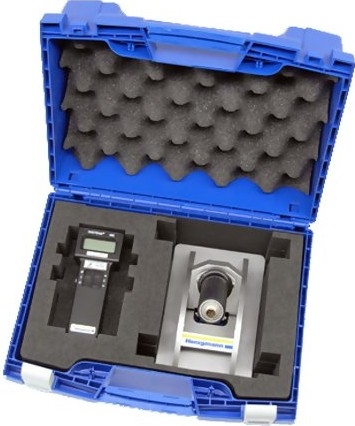

Honigmann 136-2 Web Tension Meter carrying case

Features

• minimum friction of the ball-bearings at the contact rollers
• no influence on the measurement by the material or the speed of the line
• helical grooving of the rollers stabilize the head even at high speeds
• sensor is pressed slightly on the material
• optional handling constanter for defined pressing force - independent of the user
• high signal resolution even at low web tension
• no tendency to resonate even at high speeds
• splash-proof and stainless design
• robust and durable, effective overload protection
• delivers fast, reproducible information about the line tension

Specifications

Accuracy	± 1.5% Full Scale or better
Tension Ranges (Kg)	5 daN/cm, 10 daN/cm, 20daN/cm OR 31 pli, 56 pli, 112 pli
Overload Protection	200% +
