    Product Description

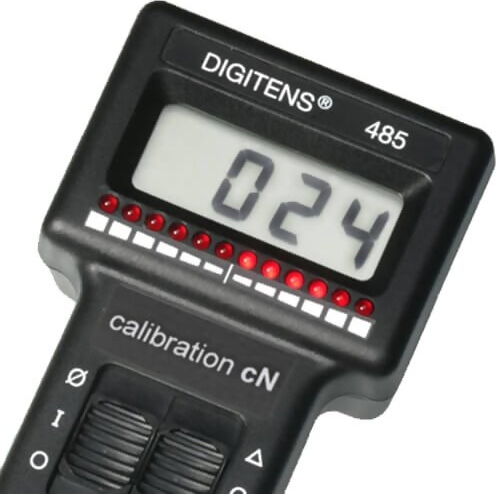

    Digital Tension Indicator with Built-In Amplifier


    Automatic zero setting
    "Peak" function retains maximum reading on display

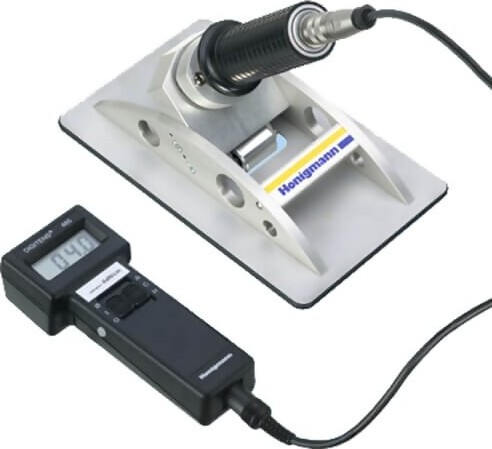

    For use with 136-2 Web Tension Meter

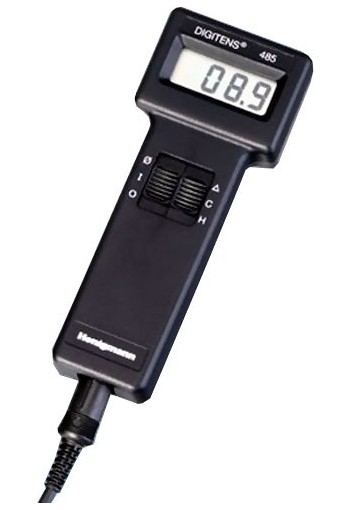

    The battery-powered Honigmann D-485 Digital Tension Indicator with Built-In Amplifier features a digital display with peak capture, adjustable averaging and automatic zero.

    Specify D-485-P for calibration in pounds (lbs.).


    line

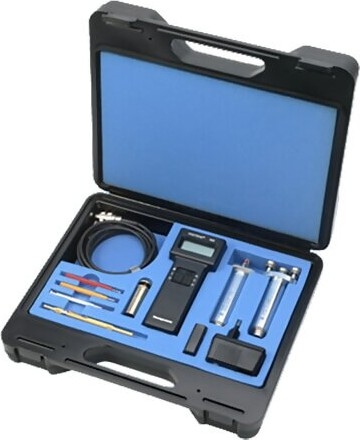

    Kit Contents
    line

    • D-485 Digital Tension Indicator with Built-In Amplifier
    • carrying case


    line
    Features
    line

    • Automatic zero setting
    • Built-in calibration adjustment potentiometer
    • "Peak" function retains maximum reading on display
    • "Hold" function retains last reading on display
    • User-set averaging between 0.3 and 1.5 seconds
    • High-contrast, easy-to-read 13 mm LCD display
    • Rugged plastic housing
    • Operates on a single 9V battery


    line
    Specifications
    line

    DisplayLCD, 13 mm 3 1/2 digit
    FunctionsAutomatic zero setting, Averaging display,
    Maximum value
    AccessoriesSensor connection cable, 2 m long
    Dimensions6.7" x 2.6" x 1.6" in (H x W x D)
    65 x 40 x 170 mm (H x W x D)
    Weight0.2 kg
