Product Description
Shimpo DLM-107A Digital Length Meter
Digital Length Meter
Display readings in feet or meters

The Shimpo DLM-107A accurately measures running length. Built-in selector switch permits the user to display readings in feet or meters.

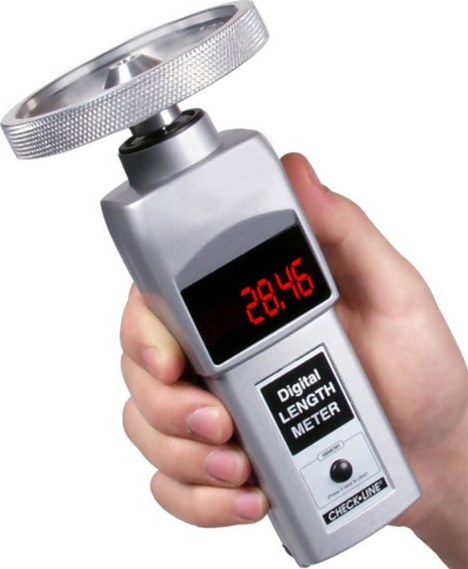

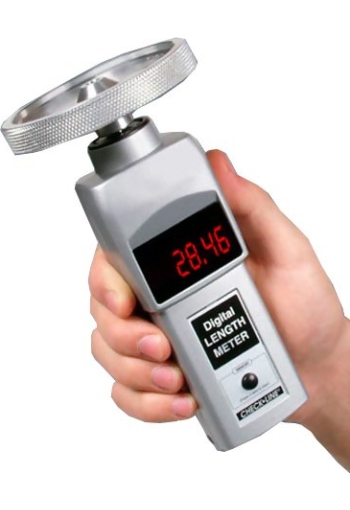

Note: Shown with Optional Knurled Aluminum Wheel - LMA-3

Features

  • Built-in memory for last, maximum, minimum and 10 separate readings
  • Rugged cast aluminum housing
  • Free NIST calibration certification

Specifications

Display Range0.10 to 25,000 rpm with floating decimal
Accuracy0.10 to 999.99 rpm: ±0.06 rpm
1,000.0 to 9,999.9 rpm: ±0.6 rpm
10,000 to 25,000 rpm: ±0.006% rpm
Measurement UnitsTotal Feet or Total Meters
Memory System13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Over-Range IndicatorFlashing numerals
DetectionOptical coupler, 60 pulses/rev
Update Time1 second (typical)
BatteriesSize: 2 1.5 V AA
Life: Approx. 65 hrs. (DT-105A)
Life: Approx. 40 hrs. (DT-107A)
Low Voltage
Indicator		Flashing "LO BAT" display (DT-105A)
"B" display (DT-107A)
Operating Temp32° to 113° F (0 to 45° C)
Weight0.9 pounds (400 grams)
Dimensions7.3" L x 2.4" W x 1.8" H
Warranty1 year

User-selected engineering units

Linear SpeedLengthRevolutions
feet/minfeetrpm
meters/minmeters
inches/mininches
