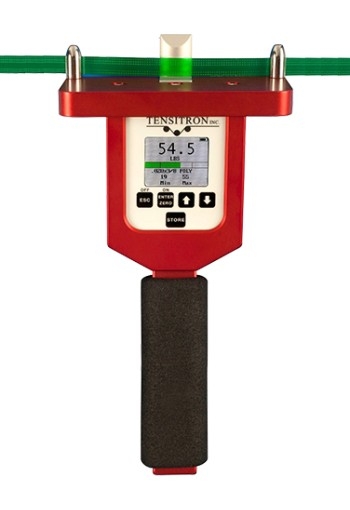

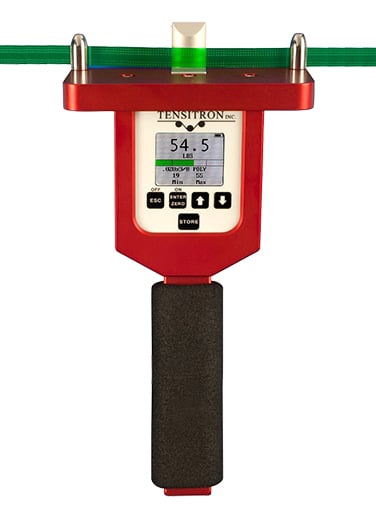

Name: Tensitron STX-1 Digital Strap Tension Meter
Brand: Tensitron
SKU: 565

Up to 10 Calibrations - 1 Free

Quick, easy operation

Lightweight, portable design

Durable construction

Get the exact tension required no matter what you’re strapping. Tensitron’s digital strap tension meters will help you safely secure your pallets and cartons or truck and rail loads. These meters will also reduce crushed containers or products and loose loads. Use the Tensitron STX-1 Digital Strap Tension Meter to measure tensions on poly or metal strapping; woven, nylon tie-down straps; or stiff stationary materials like fence wire and saw blades

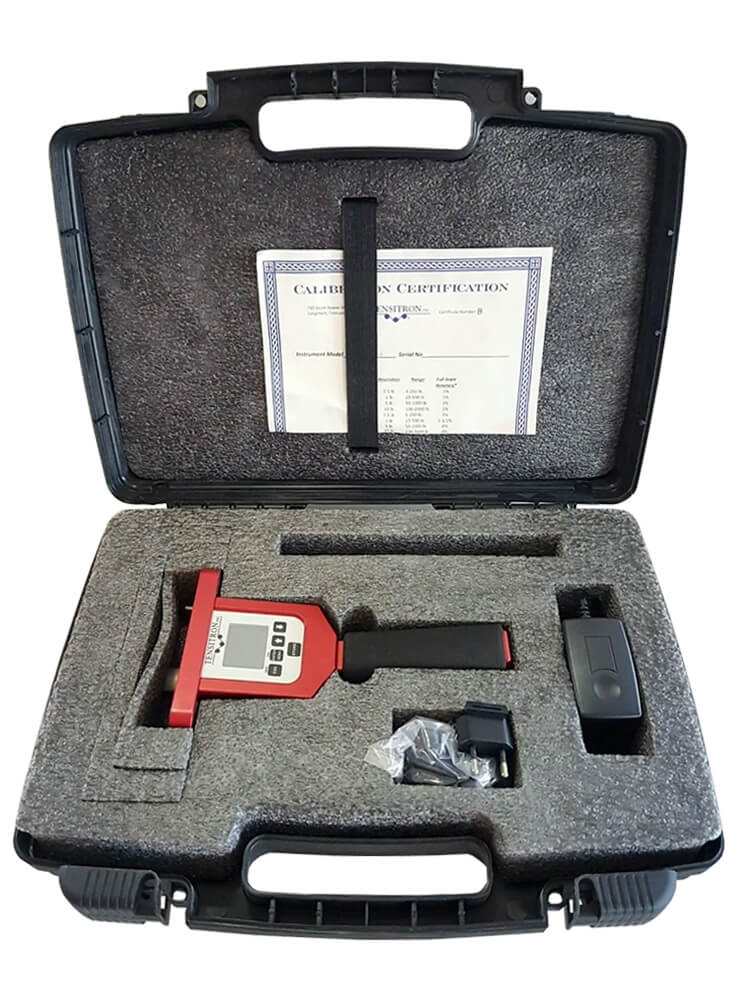

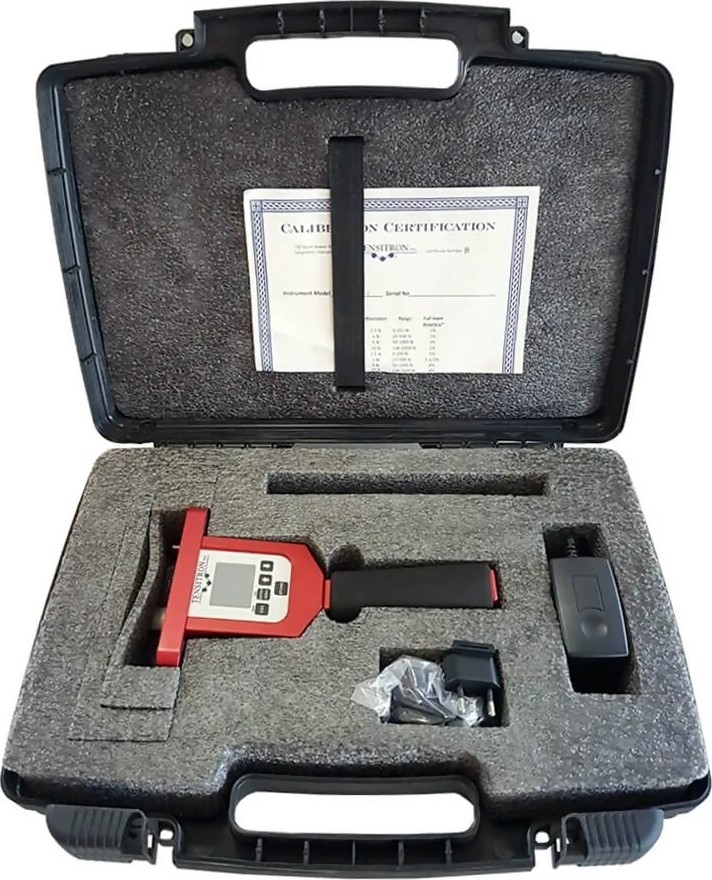

Kit Contents

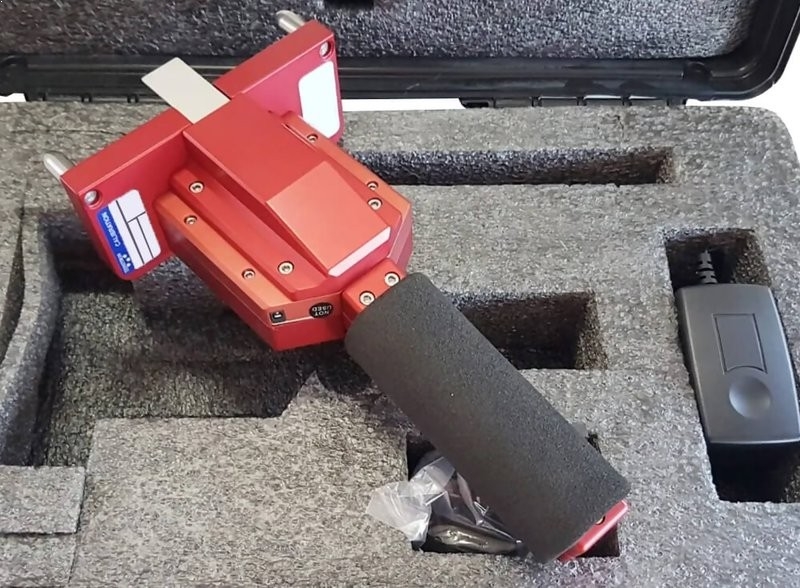

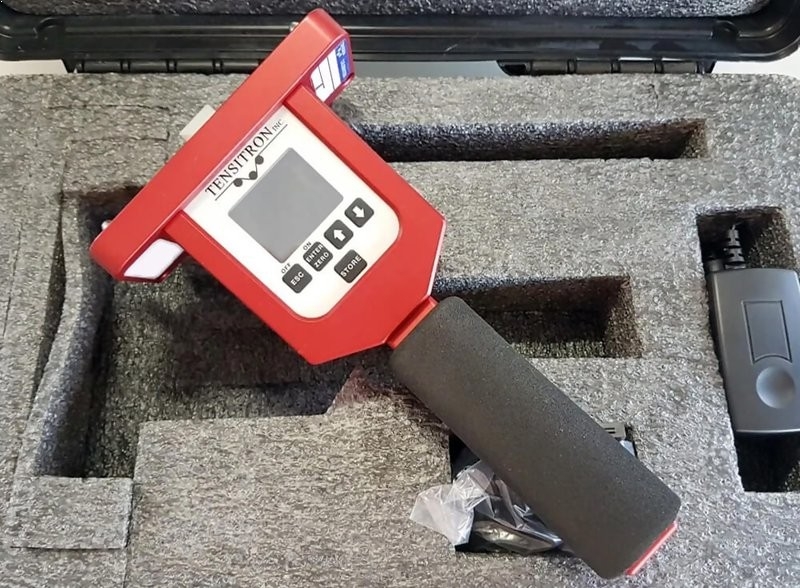

Tensitron STX-1 Digital Strap Tension Meter
Re-chargeable NIMH battery assembly
NIST-Traceable Calibration Certificate
Power supply
Instructions

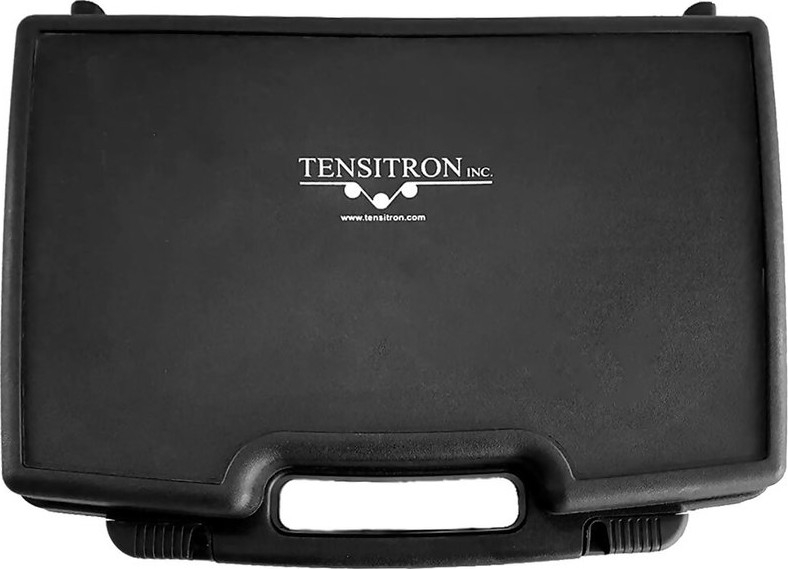

Durable lightweight carrying case with protective foam inserts

Features

Fast

Quickly test strap, band, and tie-down tension
Quick, easy, one-handed operation
Color-bar graphic provides quick visual of tension leveis
Contacts engage easily onto straps that are tight against another surface

Accurate

Improve safety and performance
Custom-calibrated for your straps or with standard menu of commonly-used strap sizes
Tension ranges from 1 lbto 2,000 lb.
Selectable units (lb., kg, or daN)

Dependable

Save time and costs with durable construction
Long-lasting, durable construction
lncludes carrying case and NISTtraceable calibration certificate

Convenient

User-friendly and easy to transport
Data storage and statistics
Lightweight, portable
Analog or serial output ( optional)

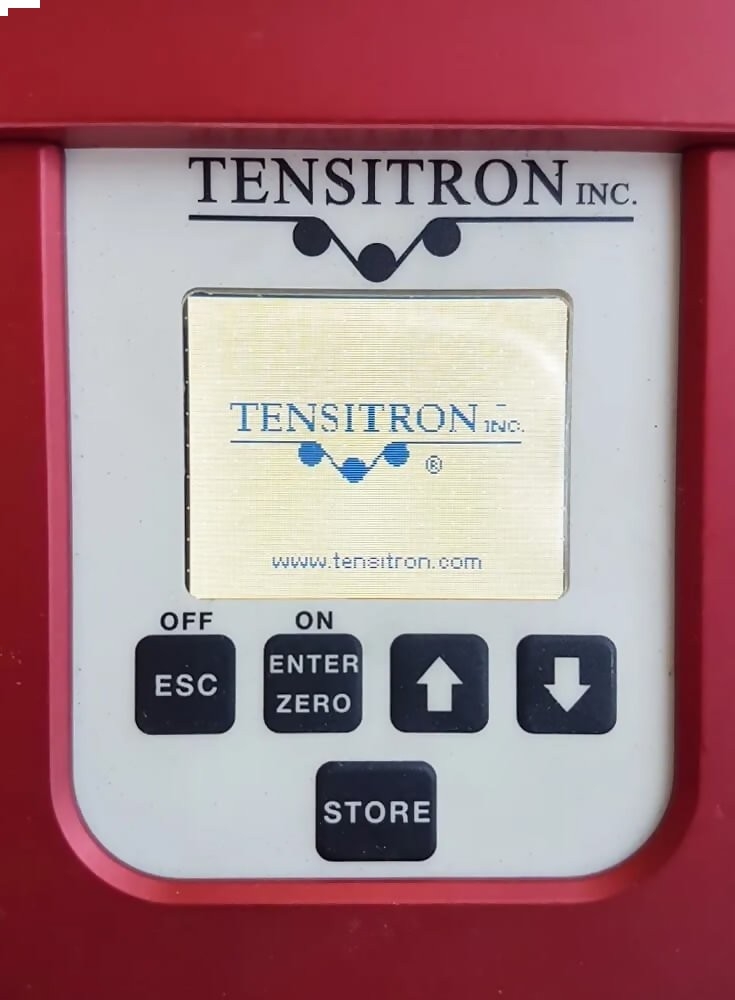

Easy-to-read, backlit, digital display

Specifications

Power Requirements	Power Supply operates with input voltages from 100 -240V and includes several interchangeable adapters allowing use with European, U.S., Australian, English and other plug configurations
Battery	Rechargeable NiMH, custom proprietary design. Approximately 8 hours depending upon backlighting intensity
Warranty	One year, against factory defects

1 radial incoming force without additional bending or tilting moment

Comparison Chart

Standard Instruments - Using Customer Material

STX-1 series instruments are calibrated specifically to your strapping type(s) and size(s) to ensure the greatest accuracy possible. When ordering, specify: material, width and thickness of the strap.

Model	Style	Range	Tolerance +/- Full-Scale	Resolution	Menu Selections
STX-250-1	STX-1 Calibrated for your strap(s)	5 - 250 lb.	2% (5 lb.)	0.2 lb.	Provide WIDTH, THICKNESS, and MATERIAL (poly , nylon, or steel) of each strap you’d like included in the menu. Up to 10 calibrations are available.
STX-500-1		25 - 500 lb.	2% (10 lb.)	1 lb.
STX-1000-1		50 - 1,000 lb.	2% (20 lb.)	5 lb.
STX-2000-1		100 - 2,000 lb.	2% (40 lb.)	10 lb.
STXM-250-1	STXM-1 Menu includes a fixed selection of popular strap sizes. (Select according to strap thickness.)	5 - 250 lb.	3% (7.5 lb.)	0.2 lb.	.010" - .020" poly.021" - .026" poly.027" - .032" poly
STXM-500-1		25 - 500 lb.	3.5% (17.5 lb.)	1 lb.	017" - .026" poly .027" - .032"poly .033" - .040" poly
STXM-1000-1		50 - 1,000 lb.	4% (40 lb.)	5 lb.	.020" - .034" poly .035" - .042" poly .043" - .050" poly
STXM-1000-SC-1		50 - 1,000 lb.	4% (40 lb.)	5 lb.	.020" - .034" poly .035" - .042" poly .017" - .024" steel .025" - .035" steel
STXM-2000-1		100 - 2,000 lb.	4% (80 lb.)	10 lb.	.020" - .029" poly .030" - .042" poly .043" - .055" poly .017" - .024" steel .025" - .035" steel .036" - .044" steel
