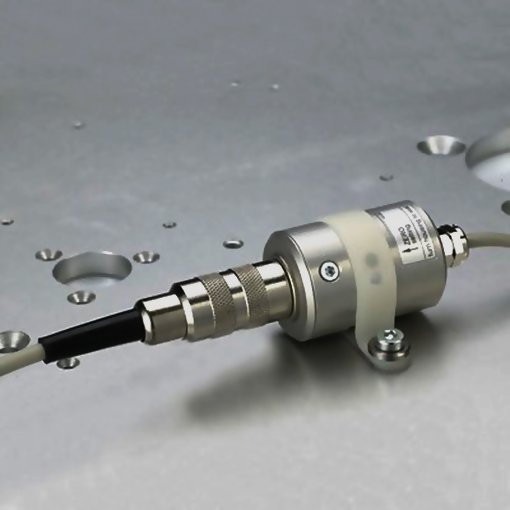

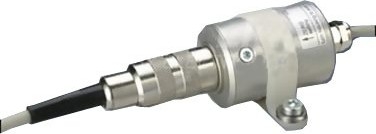

The measuring amplifier CMA 03-CH is designed for universal use with strain gauge-based sensors. The special mechanical design as a cable mounted measuring amplifier allows a quick and space-saving installation without costly installation work.

CMA 03-CH amplifies the mV-signal of the sensor into the 10V-range. Installing the amplifier near the sensor increases interference resistance on signal transmission, e.g. in large facilities.

Best temperature stability, long-term stability and high accuracy are guaranteed by using modern technology

Features

• Compact and robust aluminium flanged housing
• 24V DC power supply, reverse-polarity protected
• Available with voltage output 0 to ±10V or current output 0/4 to +20mA, unipolar
• Fixed connection between sensor and amplifier
• Great noise immunity and service reliability for use in rough industrial operation

Related Products

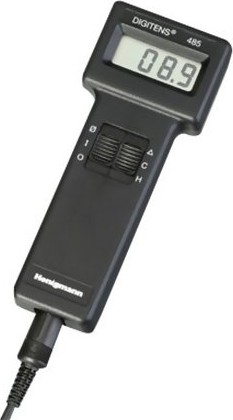

DPM502 Digital Tension Indicator Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation
