    Strain Gauge Measurement Amplifier

    The TS481 Strain Gauge Amplifier Card is designed for use with the RFS/NWS & WTS Tension Sensors

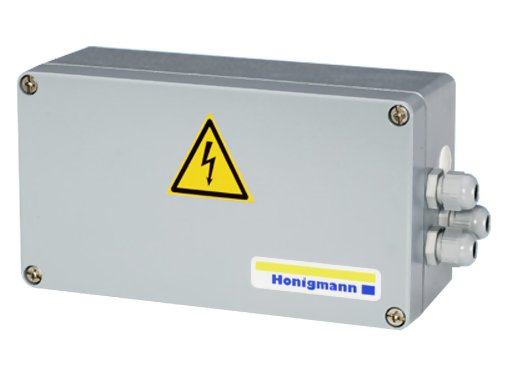

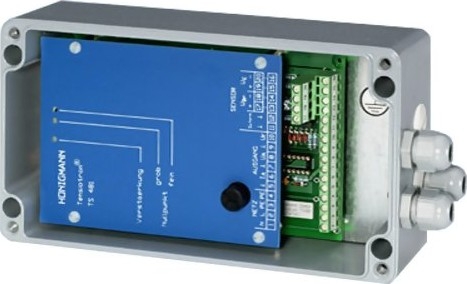

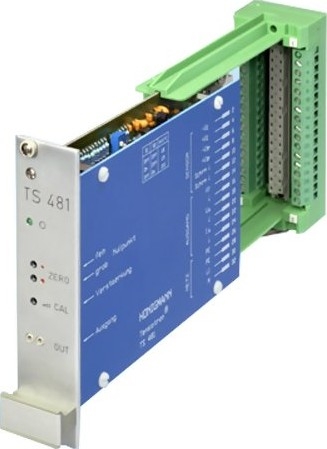

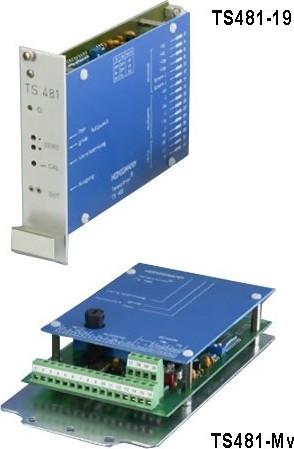

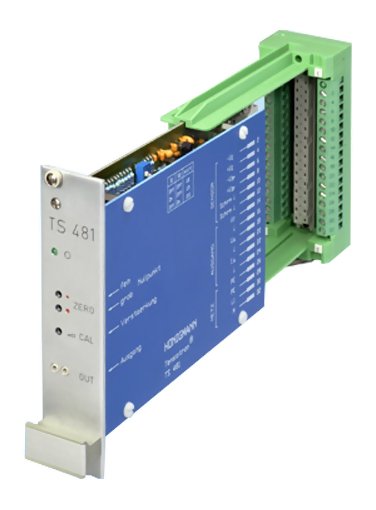

    TS481-19: (19" Rack Mounted)

    TS481-M: (Surface Mounted)

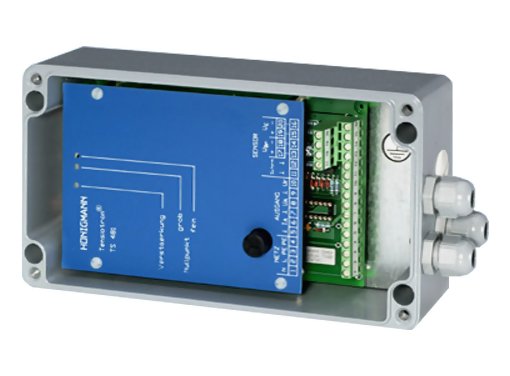

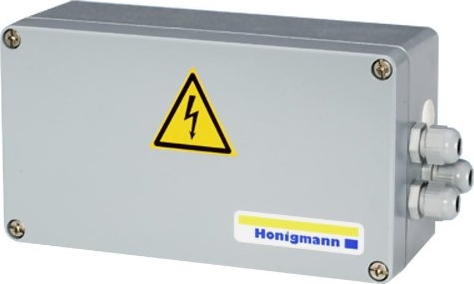

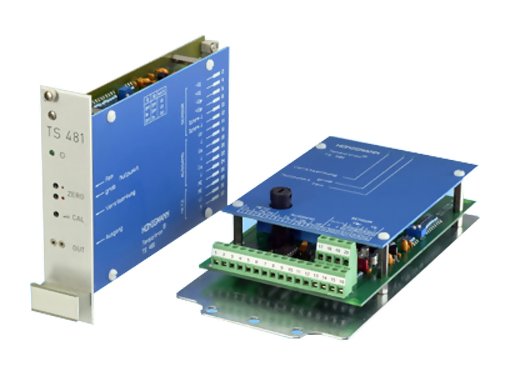

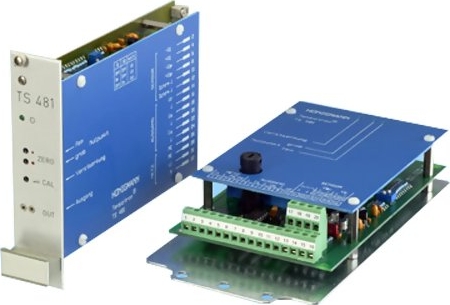

    The Honigmann TS481 Strain Gauge Measurement Amplifier Card is designed for use with the RFS/NWS & WTS Tension Sensors. It is offered in two versions: Surface Mounted (M) and 19" Rack Mounted (19)


    line
    Features
    line

    • Galvanic Isolation minimizes the chance for signal interference, including ground faults
    • Optional "Explosion Proof" configuration
    • Provides accuracy of ±0.1%
    • 0 - 10VDC analog output is standard. A current output option can be added providing 0-20/4-20mA (option A)
    • User-enabled "damping function" eliminates tension fluctuations


    line
    Specifications
    line

    Sensor TypesStrain Gauge, full bridge
    Impedance RangeMinimum 150 Ohms
    Overall Accuracy0.1% (any portion of the range)
    Power Required115 VAC, 50/60 Hz
    For 230 VAC version add "-230" suffix (i.e. TS481-M-230)
    Power Supply to Sensor10 VDC, regulated (±5 VDC referenced to ground)
    Calibration Range60 to 450%
    Isolation between I/OGalvanic Isolation using integrated DC-DC converter between input power & output signals
    Power Consumption100 mA @ 24 VDC
    Temperature Coefficient< 0.05% per °C
    Mounting StyleTS481-19: Rack Mount
    TS481-M: Surface Mount
    Connector TypesTS481-19: Blade Contacts, 32 poles per DIN 41612D
    TS481-M: Screw Terminals
    Dimensions (in mm)TS481-19: 100 x 1600 (3HE/6TE)
    TS481-M: 107 (L) x 207 (W) x 40 (H)
    WeightTS481-19: 400 grams
    TS481-M: 600 grams


    line
    Related Products
    line

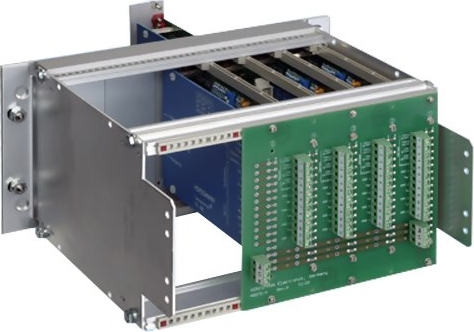

    TS481-SKBI

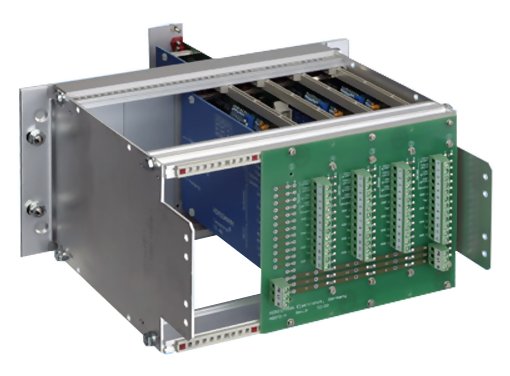

    Plug-in card block for TS481-19    		related
