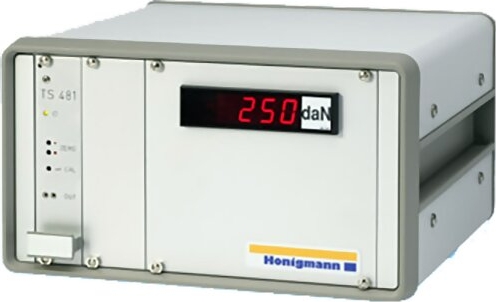

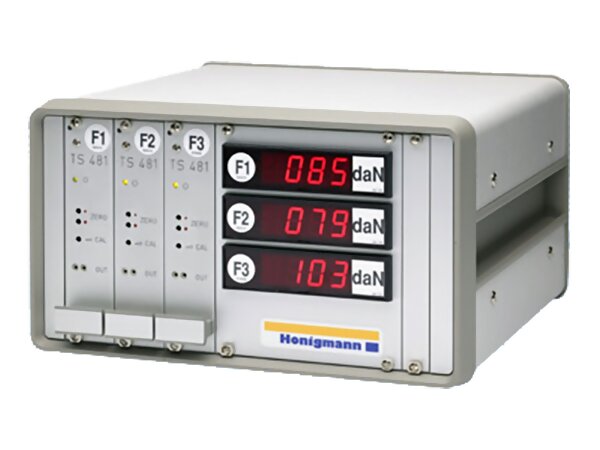

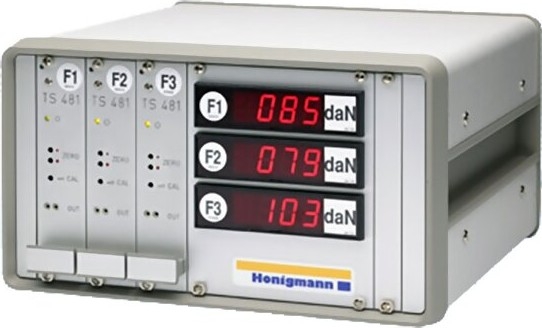

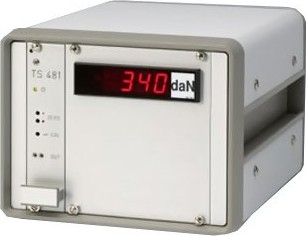

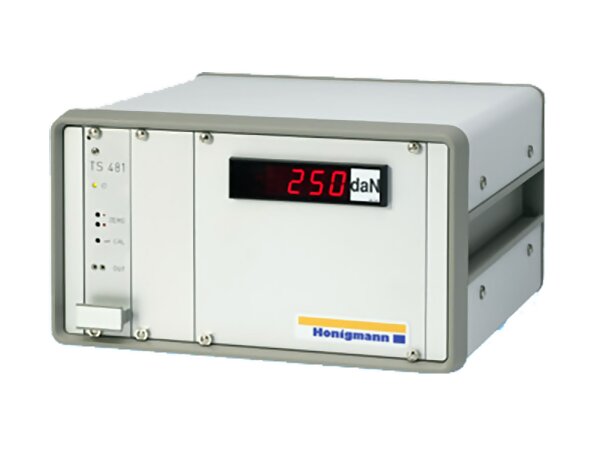

Combination Digital and Analog Tension Display Unit for use with strain gauge-based sensors

Tension Amplifier & Display

Features

• Analog output on the front panel
• Rugged 19"-desktop housing
• High-grade analog display
• For strain gauge-based sensors


Related Products

MU481-OPTION Switch Selectable Measuring Range

WTM-1R Web Tension Module 1 Roller Design Easy-running self-aligning bearings in non-locating and locating bearing position Pre-assembled, ready to be installed as measuring module

WTM-3R Web Tension Module 3 Roller Design Customer specified roll dimensions Easy-running self-aligning bearings in non-locating and locating bearing position

RMA Radial Force Measuring Axle High spring constants for the sensor permit high rotation speed ratings for the deflector roll High precision and excellent long-term stability

RMA-CSW Cantilever Measuring Roll Direct, radial force transfer High precision and excellent long-term stability

RMA-DS Radial Force Measuring Axle Direct, radial force transfer High spring constants for the sensor permit high rotation speed ratings for the deflector roll

Downloads

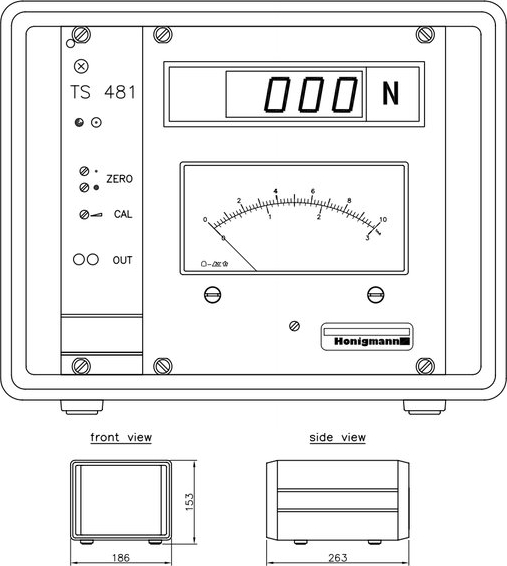

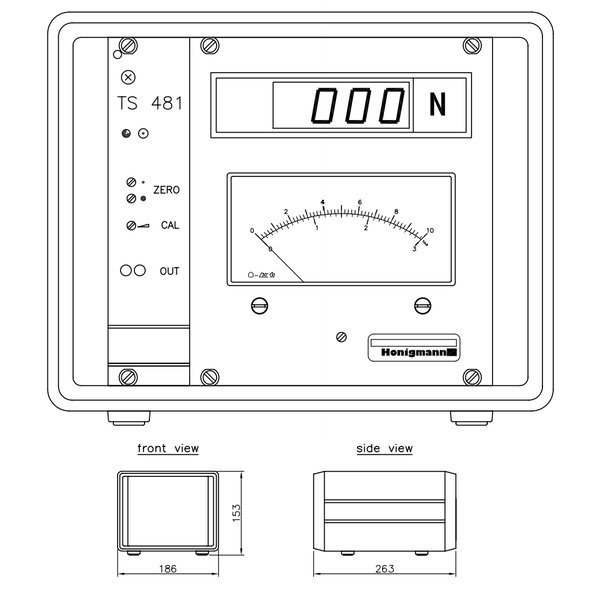

MU481-19 Tension Amplifier & Display - Dimensional Drawing 1 Channel
