SC Series Tension Indicator

See More Tension Indicators & Amplifiers

Tension Indicator

The new SC Series Tension Indicators permit the user to connect from one to three THR 3-Roller Tension Sensors

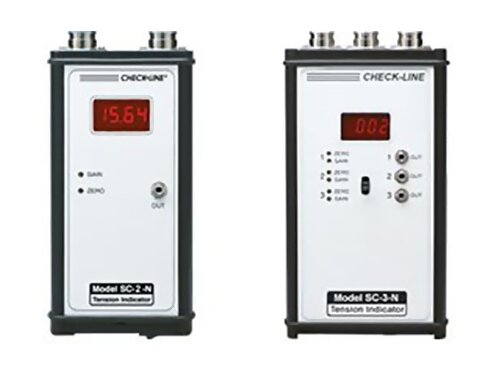

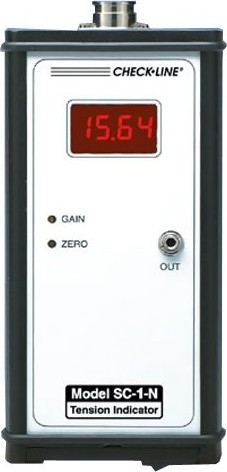

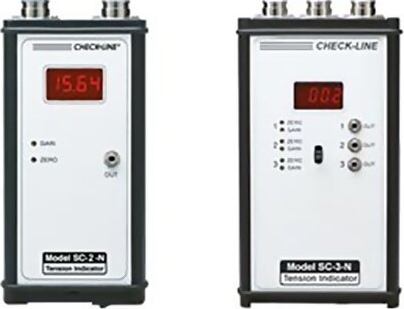

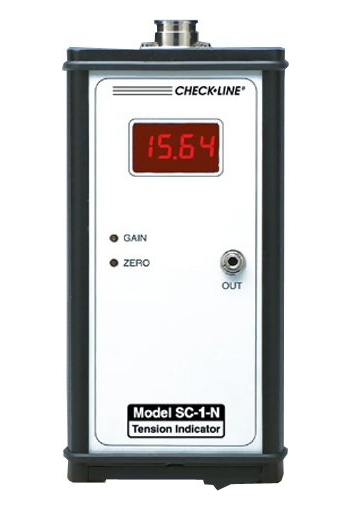

SC-1-N (1 Channel)
SC-2-N (2 Channel)
SC-3-N (3 Channel)

The new SC Series Tension Indicators permit the user to connect from one to three THR 3-Roller Tension Sensors. The SC indicators provide a regulated DC power source for the sensors and include a 3-1/2 digit LED tension display, calibration adjustment pots and 0-10 VDC analog outputs

line
Features
line

Supplies separate 0-10 VDC analog output for each channel
Adjustable output frequency of 1.6/3.3/15/330 Hz.
Front panel calibration adjustment pots for each channel
Includes wall-mounted bracket
Includes AC-Adapter, 115 VAC (for 230 VAC, add "-220" suffix)

line
Specifications
line

Display Ranges	0-50.0, 0-100.0, 0-199.9, 0-500, 0-1000, 0-1999, 0-2.00, 0-5.00, 0-10.00 and 0-19.99, switch selectable
Units of Measure	grams, cN or volts
Power for Sensors	±12 V DC
Analog Output	0-10 V DC, proportional to tension
Frequency Response	1.6, 3.3, 15 or 330 Hz, selectable
Enclosure	Extruded aluminum
Dimensions	7.5 x 4.2 x 1.3" (190 x 106 x 34mm)
Power Required	9-15 V DC or 9-15 V AC (supplied with AC-Adaptor)
Operating Temp.	32 to 120° F (0 to 45° C)
Accessories Included	AC Adaptor, Mounting bracket, output plugs (3) and instruction manual

line
Downloads
line

SC Series Tension Indicator - Data Sheet

SC Series Tension Indicator
