Display for wall-mounting or as desktop device

---

Output signal: 0 - 1 V

---

User set limits with LED and Open Collector for external signal unit MIN - MAX interface (Open Collector) for connecting an external signal unit

---

2 Available Models

Model	Connectable Sensors	Output signal
SCD-1	Sensors with measuring amplifier	0 - 10 V DC, RS 232, Open Collector
SCD-1D	Sensors without measuring amplifier	0 - 10 V DC, RS 232, Open Collector

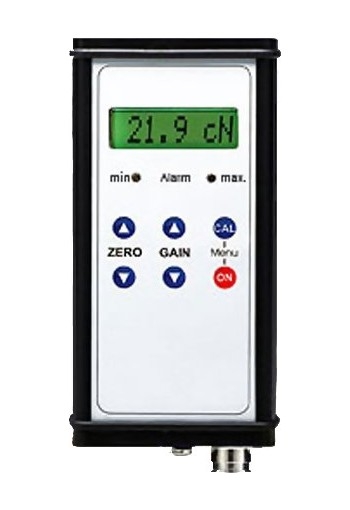

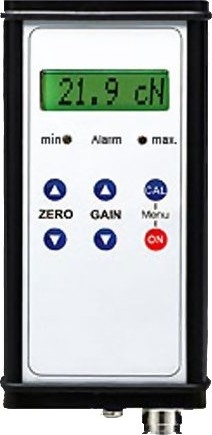

Display unit with LCD display for 1 sensor. All tension sensors series TS and FS with analog output signal 0 - 1 V can be connected.

Display for wall-mounting or as desktop device

Indicator with digital output signal for data processing with PC

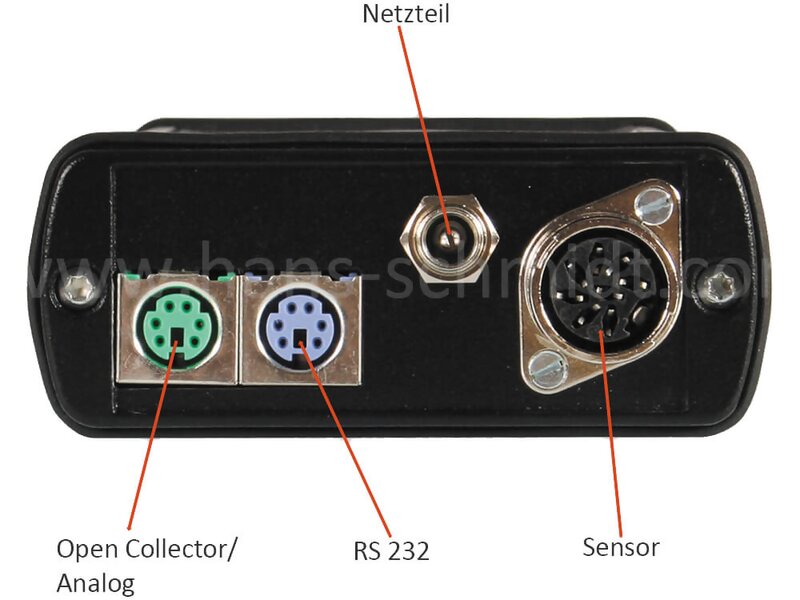

Interfaces:

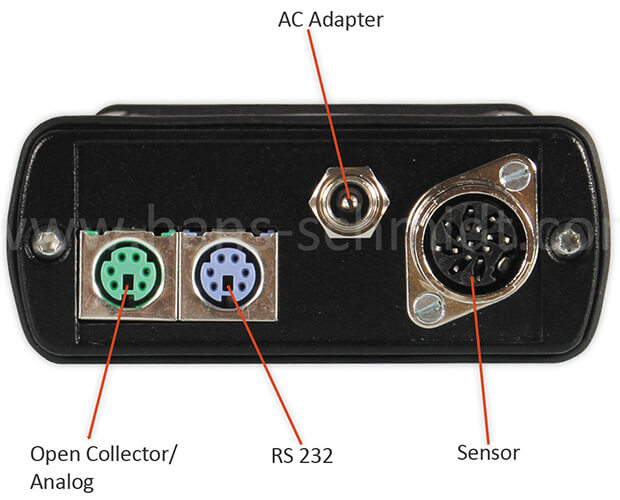

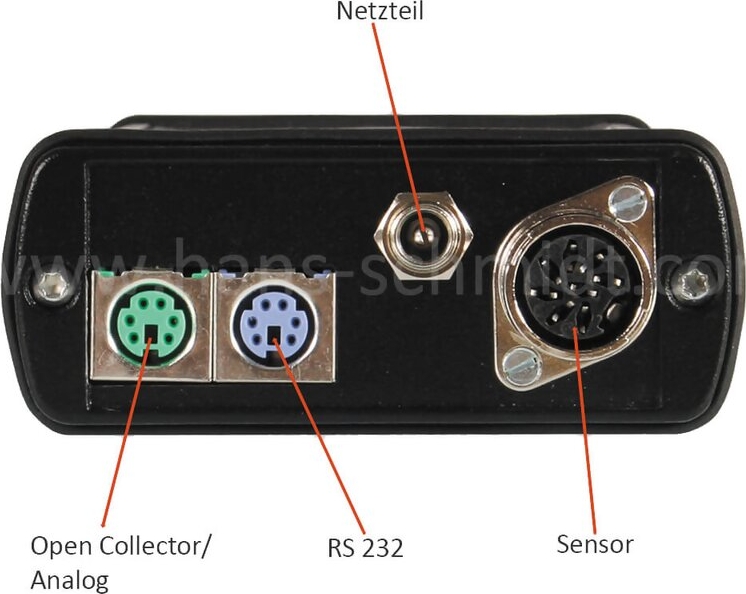

Digital: RS-232 for connection to a PC Analog: 0 - 10 V DC for connection to a line recorder or for signal processing

Kit Contents

SCD-1 Display Unit 1 AC adapter Certificate of Compliance with the order 2.1 according to EN 10204 Operating instruction Transport packaging

Features

• Display unit with small, compact housing
• Adjustable damping for output signal and display for easier reading if tension fluctuates
• Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph)
• User set limits with LED and Open Collector for external signal unit MIN - MAX interface (Open Collector) for connecting an external signal unit
• Power supply by separate AC adapter
• Wall-mounting possible

Specifications

Digital display	Dotmatrix LCD, 12 mm high with backlight
Measuring units	cN, daN, g or kg adjustable
Tension range	Adjustable
Damping (fg)	16 steps adjustable
Output signal	Analog: 0 - 10 V DC R (Last) ≥ 5 kΩ Digital: RS 232 (19200, 8, N, 1), 80 values/s
Setpoints	Programmable MIN/MAX limits with LED-diode
Output signal setpoints	Open Collector max. 30 V DC, 10 mA
Voltage output for sensor	Yes
Power supply	12 ... 24 V DC/AC 100 mA AC adapter 100 - 240 V AC, 50 - 60 Hz with 3 adapters (EU/USA/UK)
Temperature range	10 - 45° C
Air humidity	85 % RH, max.
Housing	Aluminium
Dimensions	182 x 85 x 34 mm (LxWxH)
Weight (gross)	Approx. 300 g (approx. 1000 g)

Output Signal

Digital RS 232 Analog 0 - 10 V DC Open collector 80 readings can be transfered per second. (internal sampling rate max. 19200 times/s)
