Strain Gauge Amplifier

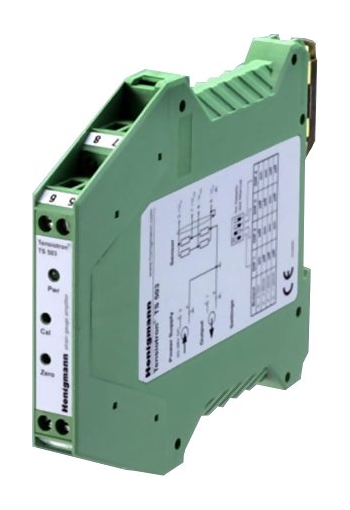

The TS503 electronic strain gauge amplifier is designed for use with most strain gauge-based sensors, esp. for tension measurement.

Best temperature stability, long-term stability and high accuracy are guaranteed by using modern technology. The very compact design, convenient mounting and high quality are the features of the amplifier TS503

Features

• Slim-line housing for DIN-EN rail mounting – only 12.5 mm in width
• Direct input power supply of 24V DC
• Provides a well-regulated power supply for sensor excitation
• Great noise immunity and service reliability for use in rough industrial operation
• LED indicates power-on status
• Adjustments for zero and amplification setting by trimpot
• Connection via screw terminals
• Output signal selectable by DIP-switches:
  • Voltage 0 to ±10V or
  • Current 0-20mA / 4-20mA, unipolar or bipolar

Downloads

TS503 Strain Gauge Amplifier - Data Sheet
