TS621 Strain Gauge Amplifier

See More Tension Indicators & Amplifiers

Tension Indicator

Provides an accurate tension display for all Check-Line sensors on a bright LED display

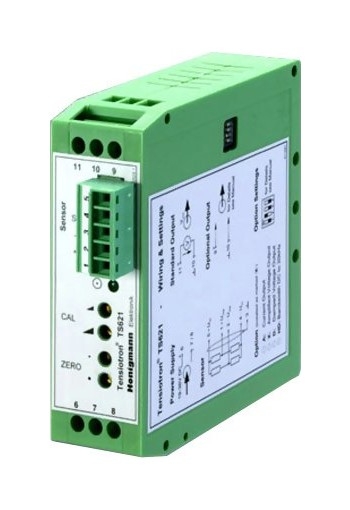

The TS621 Electronic Strain Gauge Amplifier provides outstanding signal conditioning capabilities suitable for use with most strain-gauge-based sensors. It is supplied in a DIN-Rail housing for convenient snap-in installation.

TS621 performance features include galvanic isolation, regulated power supply for the sensor, coarse and fine calibration adjustments, screw terminals for power and analog outputs, with a removable terminal block for the sensor input

line
Features
line

Designed for use with a wide range of strain-gauge-based force, load and tension sensors
Galvanic Isolation minimizes the chance for signal interference, including ground faults
0-10VDC analog output
Provides accuracy of ±0.1%
Operating input power supply of 19-36 VDC, non-regulated
Includes excellent overload and reverse-polarity protection
Provides a well-regulated power supply of 10 VDC for sensor

line
Specifications
line

Sensor Types	Strain Gauge, full bridge
Impedance Range	Minimum 150 Ohms
Overall Accuracy	0.1% (any portion of the range)
Power Source Required	19 to 36 VDC (24 VDC, typical) Optional: 9 to 18 VDC (12 VDC, typical)
Power Supply to Sensor	10 VDC, regulated (±5 VDC referenced to ground)
Calibration Range	38 to 580%
Output from TS621	0-10 VDC (standard)
Optional Outputs	Current (option A), 0-20/4-20 mA, user set Amplified voltage (option X),2X, 3X, 4X, 5X amplification, user set Damped voltage (option D) at 4 seconds
Isolation between I/O	Galvanic Isolation using integrated DC-DC converter between input power & output signals
Power Consumption	100 mA @ 24 VDC
Operating Temperature	32 to 140 °F (0 to 60 °C)
Connector Types	Screw Terminals
Dimensions	3.1" (H) x 1" (W) x 3.7" (D) (80 x 25 x 95mm)
Weight	4 ounces (100 grams)
Mounting Style	DIN-Rail Snap-In Installation (DIN-rail not provided)
