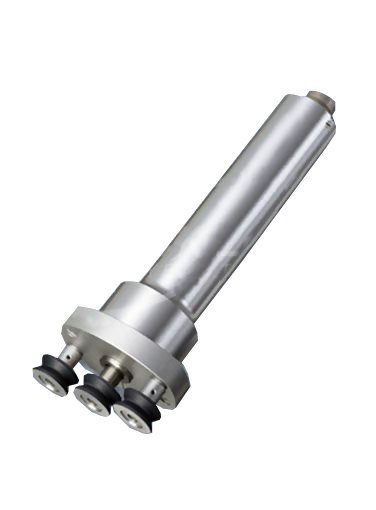

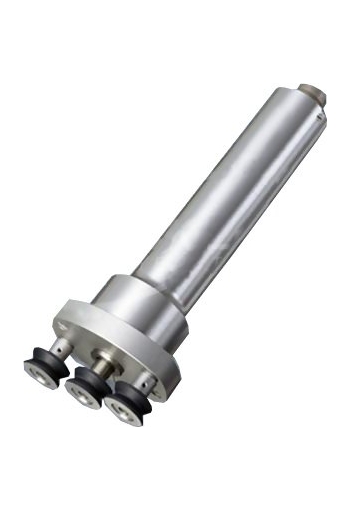

Precision Tension Meter
For textile threads and magnetic tapes
6 Ranges: 0 - 5g up to 0 - 40g
The Series 125-14 Tension Meters are for use on monofilament textiles, industrial yarns, carbon fiber, copper and steel wires up to 0.5mm Ø, woven tapes, belts and magnetic tapes. They are offered with ceramic thread guides or precision ball bearing mounted rollers.
High overload protection and optional waterproof design makes this model ideal for all laboratory & production
Features
- Excellent long-term stability for highly reproducible measuring results
- 3 ball-bearing aluminium rollers with V-groove, root diameter 16mm

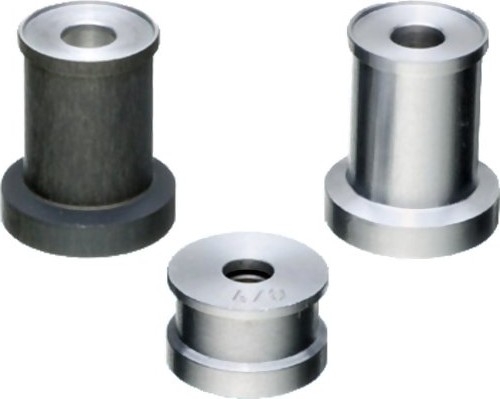

- Ceramic thread guides provide a surface that is gentle on the threads, making for low friction and even wear at high running speeds
- Smallest possible deflection angle (15°) for minimum interaction with the product being measured

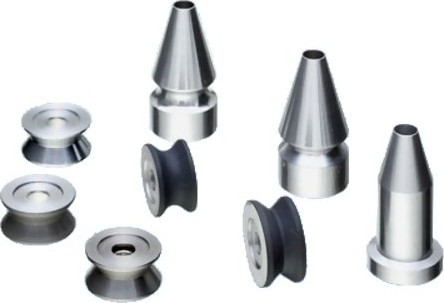

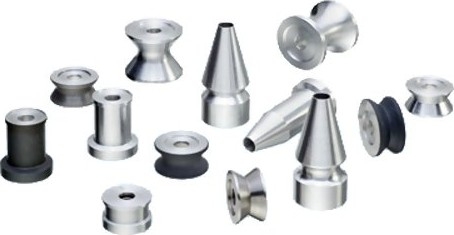

- Interchangeable guide components
