6 Ranges
0 - 100 g up to 0 - 5 kg

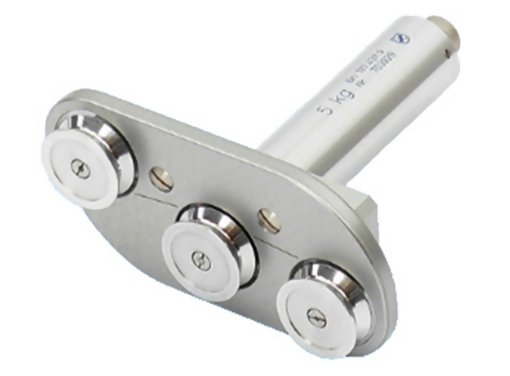

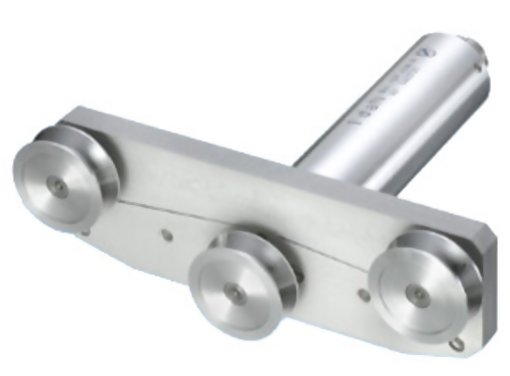

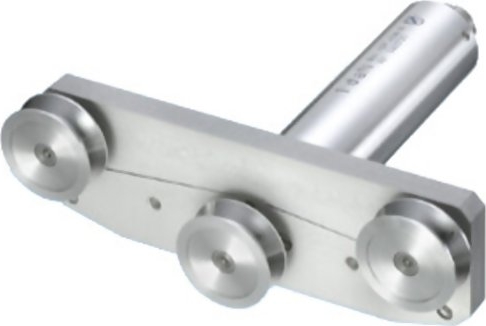

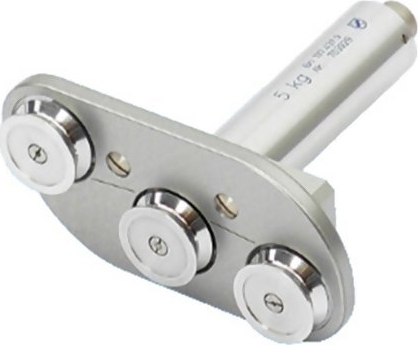

The design of this measuring head was selected to satisfy the special needs of the optical fibers industry. In the field of research and quality control itsapplications range from the crucible to re-reeling stations, from the extrusion process through cable jacketing and twisting machines, etc

Features

• for measurement of optical fibres, sensitive wires up to 3.5mm Ø

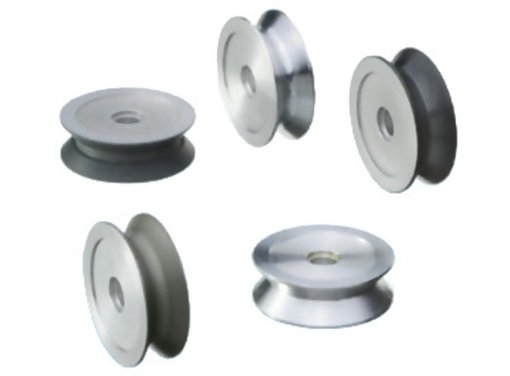

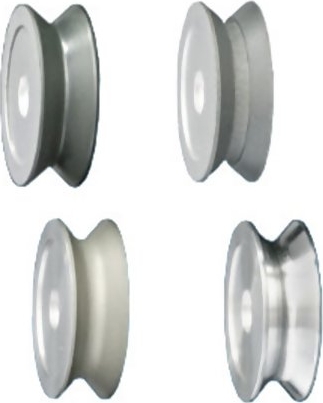

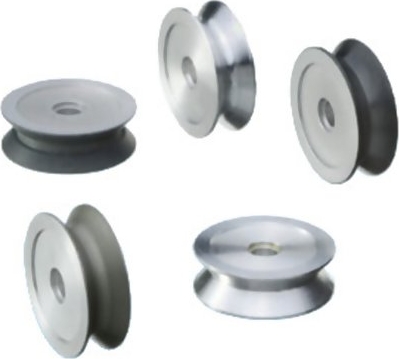

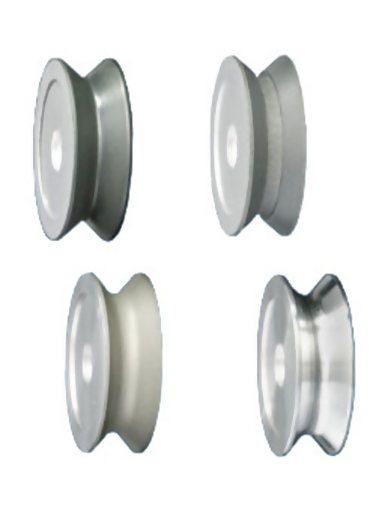

• easy-running pulleys with precision bearings; with polished, large diameter contact surface
• gentle on the material; easy to thread even while the process is running
• effective overload protection means high availability for customer operations
• very small angle of contact, only 5°
• fiber is not diverted from its path
• high precision and excellent long-term stability

Related Products

D-485 Digital Tension Indicator with Built-In Amplifier Automatic zero setting "Peak" function retains maximum reading on display

TM-353 Analog Tension Indicator with Built-In Amplifier Provides 0-1 VDC analog output for recording purposes

Downloads

137-4 Tension sensor - Dimensions
