Tension Meters, Digital

A digital tension meter is a device used to measure tension in wires, cables, textiles, belts and more. Meters commonly use a 3 roller system where the material travels through the rollers causing deflection in the center roller that is connected to a load cell on digital models.

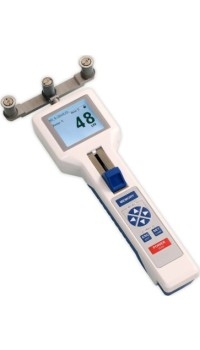

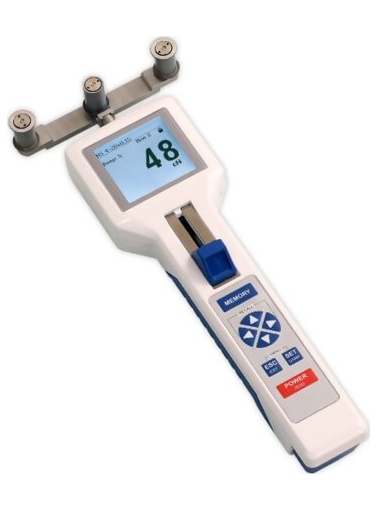

DTXB - Narrow Tape/Tow Hand-Held Digital Tension Meter with Datalogging

Call for Price

General Purpose Data-Logging Digital Tension Meter
For measuring tensions of textile ribbons, films, foils, fibre bunches etc.
10 Tension ranges available from 5.0 - 500 cN up to 0.5 - 50 daN
Memory for 60,000 readings

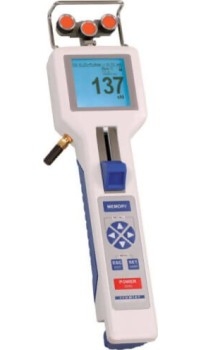

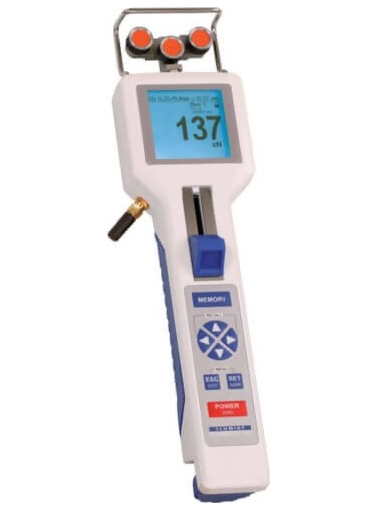

DTXE - Limited-Access, Hand-Held Digital Tension Meter with Datalogging

Call for Price

4 Tension Ranges 1-200g up to 20-2000g
For measurement in areas with limited space or tightly grouped filaments
For uses on textiles (2000 tex, max) or wires up to 0.5 mm diameter
Memory for 60,000 data points with USB output
Optional Wi-Fi wireless data output

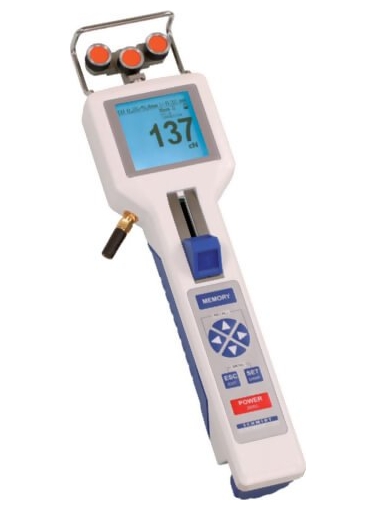

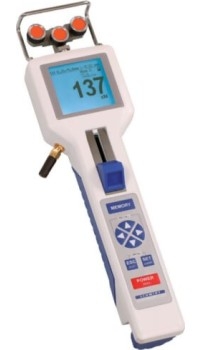

DTXF - Optic Fiber, Hand-Held Digital Tension Meter with Datalogging

Call for Price

For use on Optical fibers, glass fibers and fragile materials
3 Tension ranges available from 1 - 200g up to 10 - 1000g
For diameters up to 1.5mm (0.060")
Memory for 60,000 data points with USB output
Optional Wi-Fi wireless data output

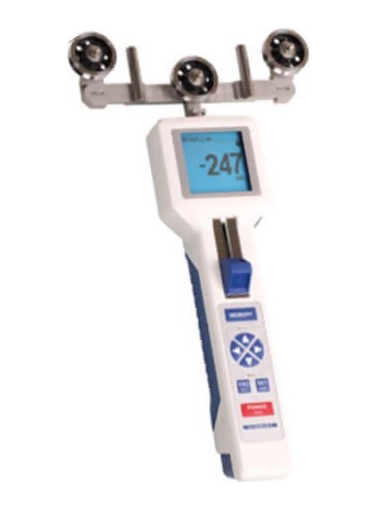

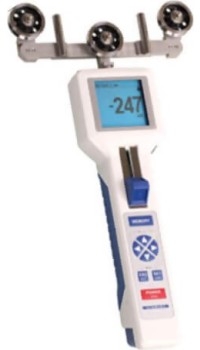

DTXL - Heavy-Duty, Hand-Held Digital Tension Meter with Datalogging

Call for Price

Heavy Duty Digital Tension Meter for Sensitive Materials
4 Ranges up to 20 Kg
For Wire & Cables up to 5 mm diameter (.200")
Memory for 60,000 data points with USB output
Optional Wi-Fi wireless data output

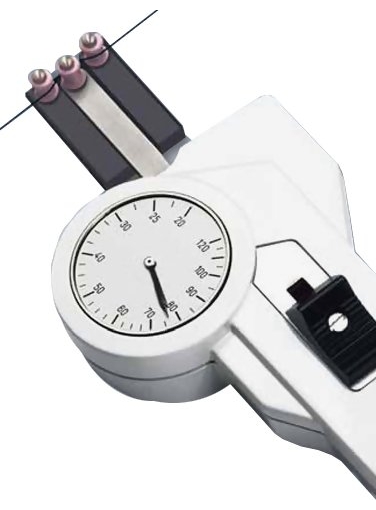

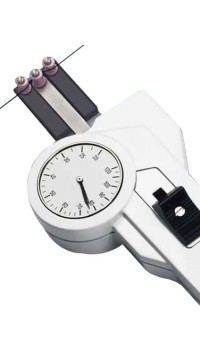

DX2FP Limited Access Tension Meter with Ceramic Pins

Call for Price

High Speed Filaments / Limited Access
Ceramic Pins allow measuring speeds up to 6000 m/min
Warranty: One Year

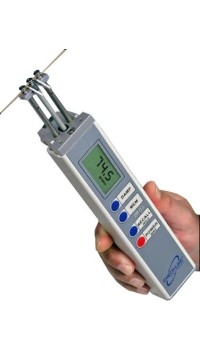

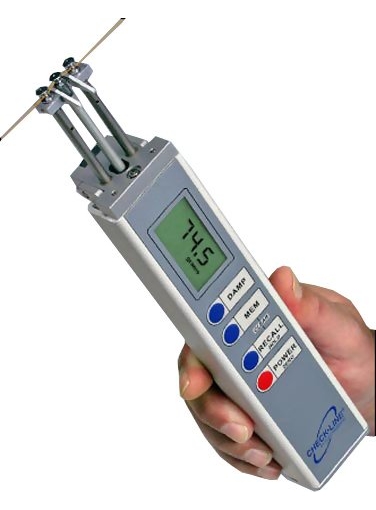

ETMB / ETMPB Limited Access Digital Tension Meter

Call for Price

Limited Access Digital Tension Meter
Warranty: One Year

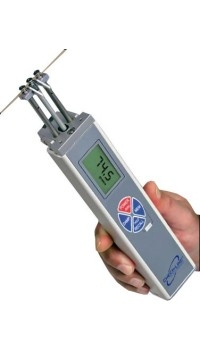

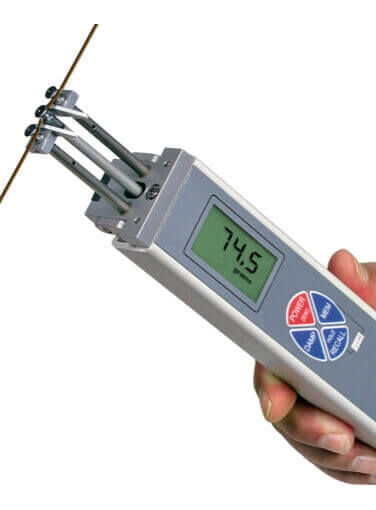

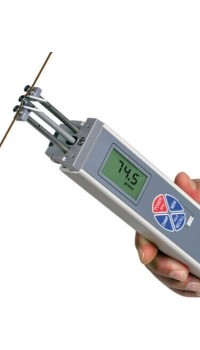

ETMX - ETMPX Data Logging Limited Access Digital Tension Meter

Call for Price

Limited Access Digital Tension Meter with Data-Logging
Built-in datalogger stores 4000 values plus Last, average, MAX, MIN, MAX-PEAK, MIN-PEAK plus
Roller model for speeds up to 2000 m/min or "P" model with Ceramic Pins for speeds up to 6000 m/min

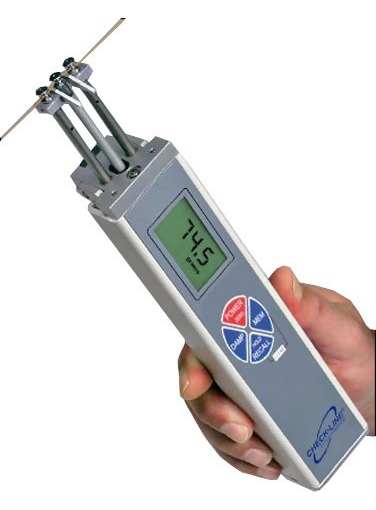

ETMX / ETMPX Limited Access Digital Tension Meter

Call for Price

Limited Access Digital Tension Meter with Data-Logging
Warranty: One Year

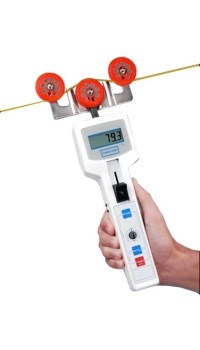

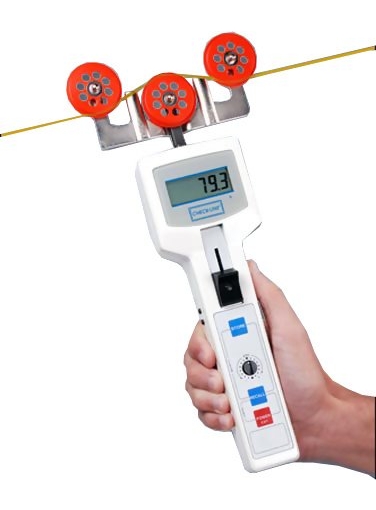

FTMB / FTMX Digital Tension Meter

Call for Price

Digital Tension Meter for Sensitive Materials
3 Ranges up to 1000 g
For fragile materials sensitive to bending over a small radius such as optical fibers, carbon fibers, technical fibers etc.

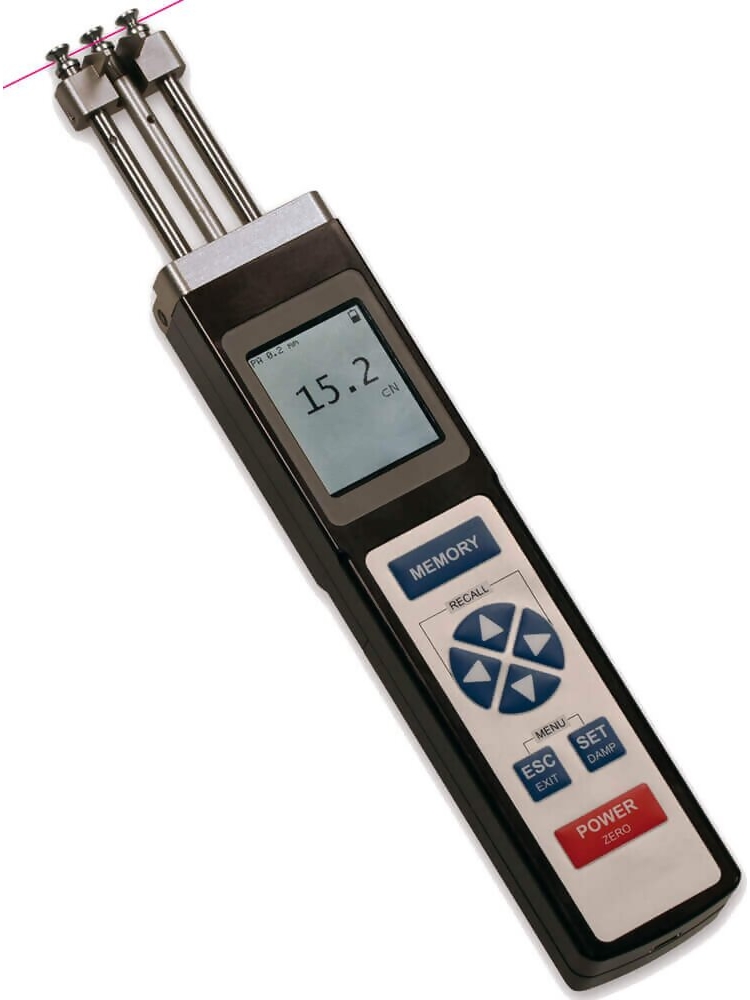

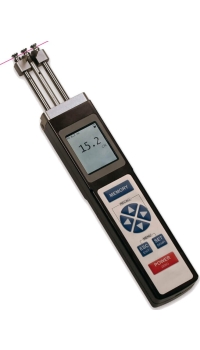

Hans-Schmidt ETB - ETPB Limited Access Digital Tension Meter

Call for Price

Limited Access Digital Tension Meters for fine wire and fibers with max tension range of 500 g / cN
Memory, Data Output, USB, Wifi
Auto Rotating Display

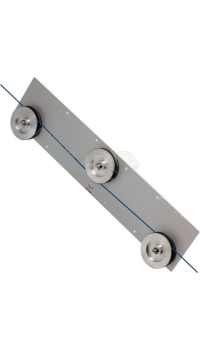

Hans-Schmidt FSW Tension Sensor

Call for Price

3 Tension Ranges from 0-20 Kg up to 0-100 Kg
For measuring wires, ropes and cables up to a diameter of 15 mm
60mm diameter U-Grooved Rollers (radius of 3, 5 or 8 mm)

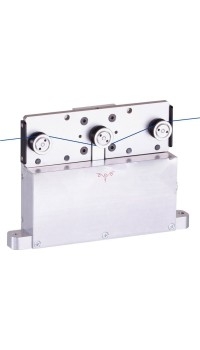

Hans-Schmidt MZ1 Narrow Body 3 Roller Tension Sensor

Call for Price

Narrow Body 3 Roller Tension Sensor
4 Models available with capacities up to 10kg / 10 daN
The MZ1 is a 3 Roller Tension Sensor built in a narrow (25mm / 1") housing designed for parallel installation to simultaneously monitor multiple fibers or wires.
