DTLB/DTLX Digital Tension Meter

See More Tension Meters, Digital
Call for price
    warrenty

    Product Description

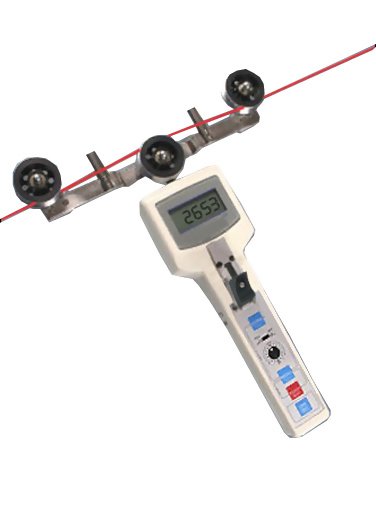

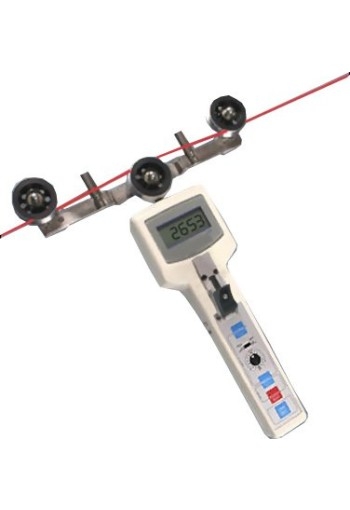

    Heavy Duty Digital Tension Meter for Sensitive Materials
    3 Ranges up to 10 Kg
    For fiber optics, carbon fiber and other technical fibers


    DTLB Standard Model
    DTLX Data-Logging Model

    3 Ranges Up To 10 Kg
    For material diameters up to 8mm (5/16")

    DTLB and DTLX models feature large diameter rollers with wide roller spacing to minimize bending when measuring tensions on rigid/stiff materials such as certain canles, buffer tubes, central strength members, plastic tubes, etc.


    line

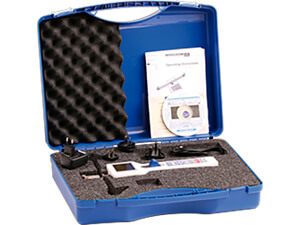

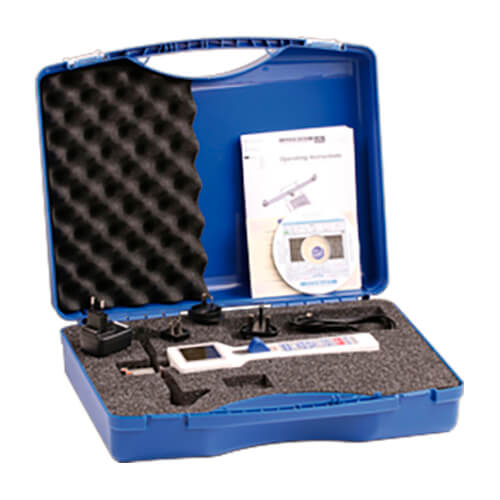

    Kit Contents
    line
    • DTLB / DTLX Digital Tension Meter
    • Four (4) AA batteries
    • Operating instruction manual
    • Carrying case


    line
    Features
    line

    • Large, V- or U-grooved guide rollers with 29.5 mm groove diameter, ball-bearing mounted
    • Large bending radius assures gentle handling of the material being measured
    • Special guides on the bracket assembly permit easy material acquisition
    • A precision strain-gauge sensing system accurately measures the force on the middle sensing roller.
    • High-Speed Measurement Captures Max, Min & Peak Tension Values

    DTLX Additional Features

    • Built-in datalogging with RS232 and 0-1 VDC Analog output
    • Memory capacity of 100 values plus min, max, peak, avg and standard deviation
    • Optional TensionView software available for batch download or continuous real-time trending


    line
    Specifications
    line

    *Accuracy± 0.5% Full Scale, ± 1 digit
    (10 - 90% of Full Scale)
    ± 3.0% Full Scale, ± 1 digit
    (Remaining portion of range)
    Measuring FrequencyMeasuring Frequency
    Deflection of Sensing Roller0.2 mm (maximum)
    Overload Capacity200% of Full Scale
    Display4-Digit LCD, 12 mm high
    Display Update Rate0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable
    Standard MemoryLast, maximum, minimum and peak
    Field Calibration Adjustment± 7 steps, 1.5% per step
    Battery TypeFour (4) 1.5 V AA (included)
    Battery Life20 hours, continuous use
    Auto Power OffAfter 2 minutes of non-use
    Roller Materialhardened steel
    Maximum Speed4000 m/min
    Housing MaterialDie-cast Aluminum
    Weight1.43 lbs. (650 g)
    Operating Temperature32 to 132 °F (0 to 45 °C)
    WarrantyOne year
    AC Adapter (optional)6 VDC @ 300 mA, for continuos in-line use
    DTLXAdditional Specifications
    Memory Capacity100 values plus maximum, minimum, average, peak, standard deviation and memory location
    Memory OperationContinuous Mode: Automatic storage of each displayed value until memory is full
    On-Demand Mode: Displayed value is stored when STORE key is pressed
    Serial OutputRS-232C (4800 baud, 8 bit word length, no parity, 2 stop bits)
    Analog Output0-1 VDC, proportional to tension range


    line
    Tension Ranges
    line

    ModelRangeResolutionMeas. Head WidthLever
    DTLB-2000
    DTLX-2000
    200-2000 g1 g185 mmOptional
    DTLB-5000
    DTLX-5000
    400-5000 g1 g235 mmOptional
    DTLB-10K-L
    DTLX-10K-L
    1 - 10 Kg0.01 Kg235 mmIncluded

    NOTE Customer's sample required for calibration

    NOTE DTLB-10K-L & DTLX-10K-L include lever in place of thumb piece. Lever is available as option on other ranges


    line
    Guide Rollers
    line

    Roller DetailsImageDimensions
    Standard
    Max Speed:
    4000 (m/min)
    Material: hardened steel (R10006)
    Option - R1
    Max Speed:
    4000 (m/min)
    Material: hardened steel (radius R5)


    line
    Related Products
    line

    Tension View
    Data Transfer & Analysis Program For The DTMX Tension Meter

    • Displays, Records, Graphs & Prints data from DTMX Tension Meter
    • Works with windows 95 & later
    • Real-Time data-logging
    related

    line

    CS-DTMX
    Serial Cable for DTMX
    related

    line

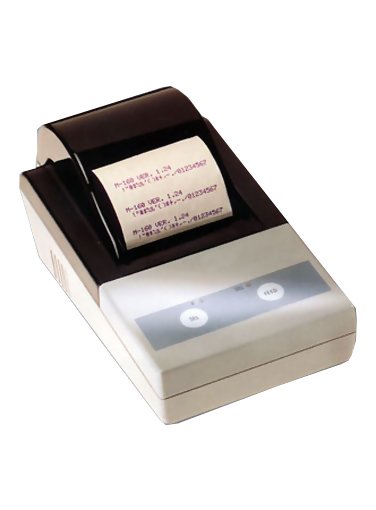

    P-DTMX
    Portable Printer for DTMX

    • Small, portable and easy to use
    • Prints statistical data from the DTMX Digital Tension Meter
    related
