DTSB - Narrow Tape/Tow Digital Hand-Held Tension Meter

See More Tension Meters, Digital

General Purpose Digital Tension Meter

10 Tension ranges available from 5.0 - 200 cN up to 0.6 - 60 daN

For use with ribbons, filaments, carbon strands, foils and similar flat materials

Stationary electronic tension sensor for measuring tensions of textile ribbons, films, foils, tows, rovings, fiber bunches and more.

10 Tension ranges available from 5.0 - 500 cN up to 0.5 - 50 daN
Electronic tension meter for applications in textile and wire industry.
Versatile applicable hand-held unit.

line

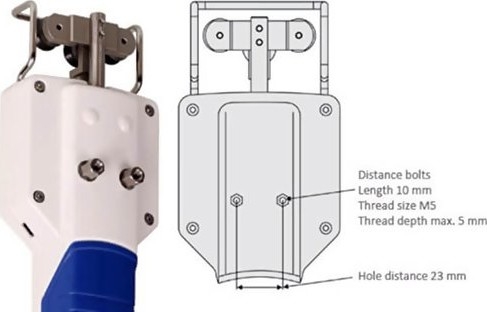

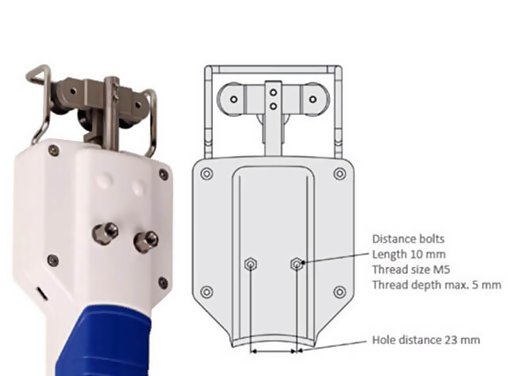

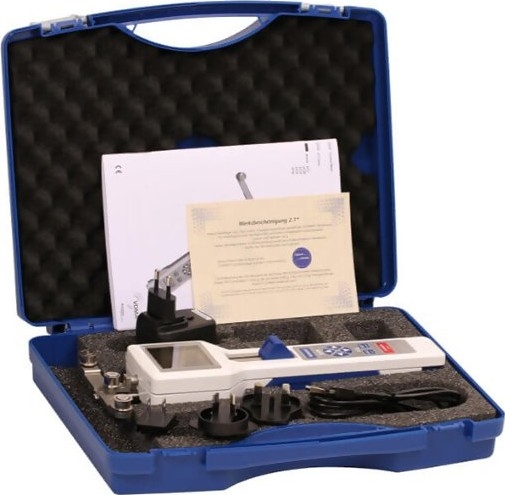

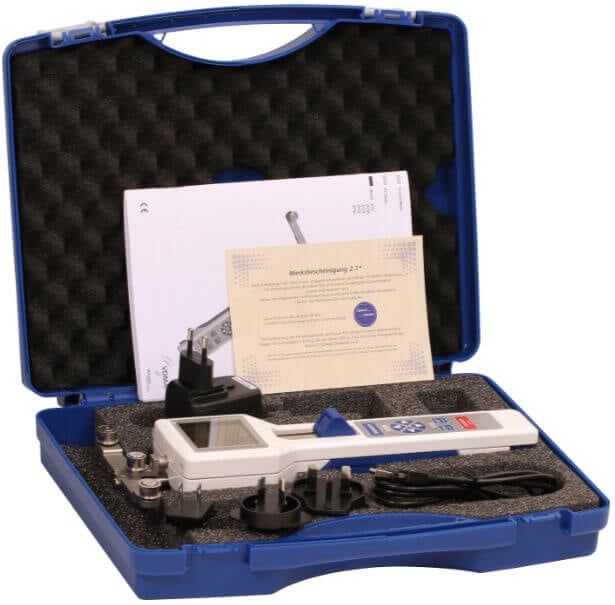

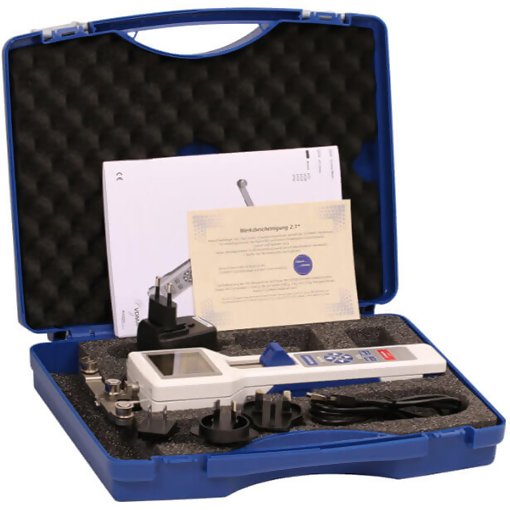

Kit Contents
line

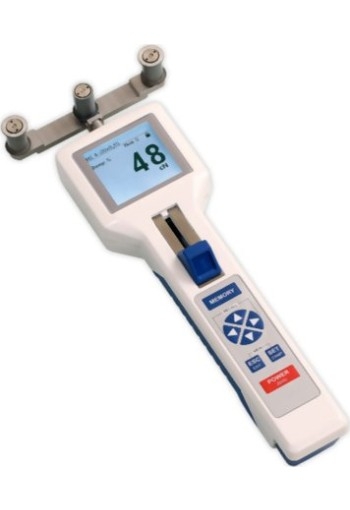

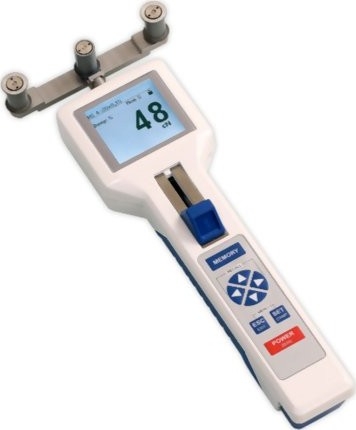

DTSB - Narrow Tape / Digital Hand-Held Tension Meter
Four (4) AA batteries
Accumulator
AC adapter
Certificate of compliance with the order 2.1 according EN 10204 free of charge
Instruction manual
Carrying case

line
Features
line

Dual-flanged outer guide rollers with various widths, from 7 mm to 30 mm (single-flanged rollers optional)
For certain tension ranges and materials, it is possible to supply roller widths of 41 mm. Inquire.

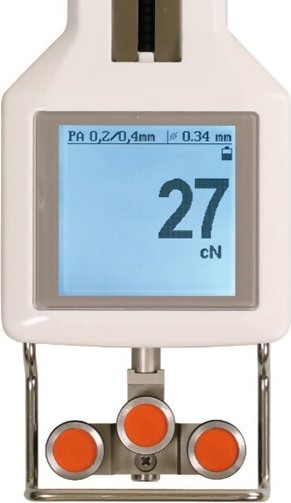

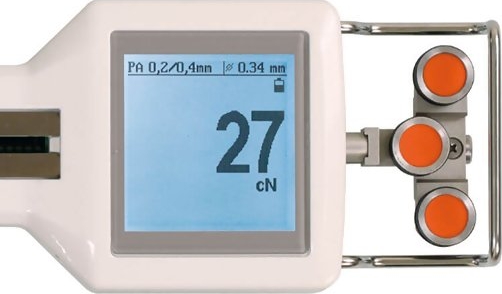

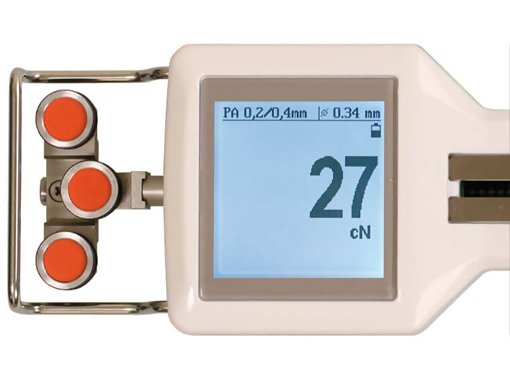

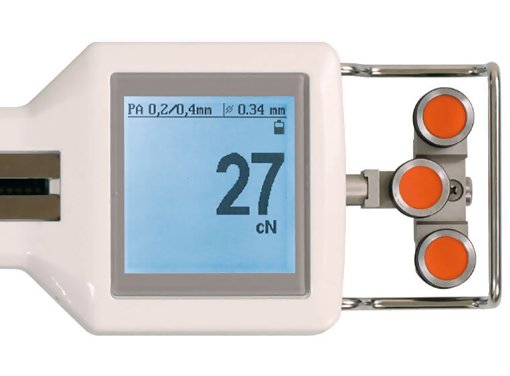

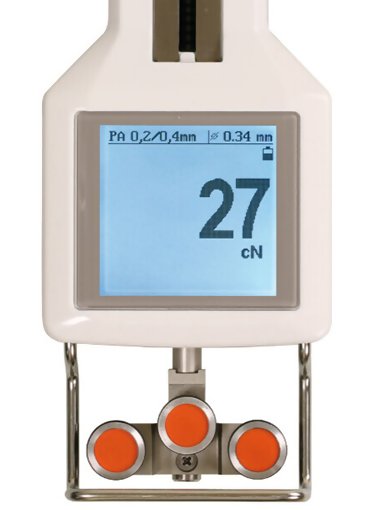

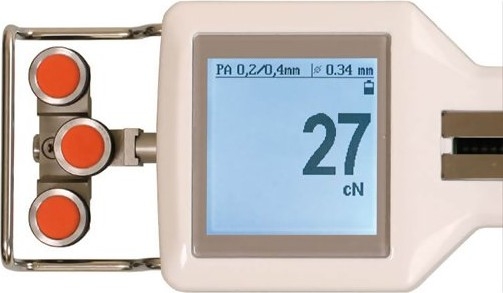

Large, backlight LCD-display with 3 different displays: numeric, numeric with live load bar, numeric with graph (time-tension)
Display automatically rotates in 90° steps (or can be locked in any desired position)
Built-in Diameter Compensator System is used to adjust calibration curve for highest accuracy. Diameter is set with wheel and shown on display
Automatic "Zero-Setting" in all measuring positions using built-in gravity sensor
4 Seperate Calibration Material memory locations for custom calibrations (can be performed by end-user and saved with alpha-numeric name)
Storage of Min, Max and Last reading as well as Hi-Peak, Low-Peak, average and standard deviation
High speed internal data sampling (8 kHz) for capture of accurate Min & Max Peaks
User-set Min and Max alarms with indication on LCD if reading is out of limits
User-adjustable DAMPING is used to minimize tension fluctuations
User-Selectable units of measurement: cN, daN, g, kg, N, lb
Setup parameters can be password protected so they are not accidentally changed by the user
Re-chargeable Lithium Polymer battery lasts 40 hours (continuous use, approx)
Rugged aluminium housing with rubberized handle provides a secure and comfortable grip
NIST-Traceable Calibration Certification in optionally available

line
Specifications
line

Accuracy	For PA from 5 % up to 100 % FS: ± 0.5 % FS ± 1 digit remaining tension range and other calibration materials: ±3 % full scale and ±1 digit
Memory for material curves	1 for factory calibration plus 4 for customized calibrations
Measuring units	Tension: cN, daN, g, kg, N, lb (user-selected) Thickness : mm, inch (user-selected)
Overrange	Approx. 10 % FS*, full scale, without accuracy guarantee
Overload protection	100 % full scale
Measuring principle	Strain gauge bridge
Measuring roller deflection	Max. 0.2 mm
Signal processing	Digital, 16 bit A/D converter
Measuring frequency	Max. 1 kHz (1000 measurings/sec.), intern 8 kHz
Display	Graphic LCD, Backlit (user-set: on/off/auto)
3 different displays	Numeric, Numeric with graph (time-tension), X-Y-diagram
Display update rate	Approx. 2 times per second
Memory	MIN, MAX, PEAK, AVG and LAST
Damping	User-adjustable electronic damping (averaging) calculated by [X-Values OLD + Y-Values NEW] ÷ 9
Cal. Adjustment	± 10 steps in 1 % increment
Thickness compensation	Max. 2.5 mm (not available for all models)
Auto power off	Approx. 3 minutes of non-use
Temperature coefficient	Gain: less than ± 0.01 % FS* /°C Zero point: less than ± 0.3 % FS* /°C
Temperature range	10 - 45 °C
Air humidity	85 % RH, max.
Power supply	Rechargeable Lithium Polymer Battery provides 40 hours of continuous operation, charging time approx. 3-1/2 hours includes AC-Adapter/Charger 100 – 240 V AC (with EU, USA, UK plug adapter)
Housing material	Die-cast aluminium
Weight, net (gross)	Up to DTS-50K approx. 875 g / 1550 g DTS-60K-V1 approx. 1040 g / 2700 g

line
Ranges
line

Model	Range	Res	Measuring Head Width**	Roller Widths (mm)
DTSB-500	5.0 - 500 grams or cN	0.1 g or cN	55 mm	7, 10, 15, 20 mm
DTSB-1000	50 - 1000 grams or cN	1 g or cN	55 mm	7, 10, 15, 20, 30, 41 mm
DTSB-2000	100 - 2000 grams or cN	1 g or cN	55 mm	7, 10, 15, 20, 30, 41 mm
DTSB-2500	150 - 2500 grams or cN	1 g or cN	117 mm	7, 10, 15, 20, 30, 41 mm
DTSB-4000	200 - 4000 grams or cN	1 g or cN	55 mm	7, 10, 15, 20, 30, 41 mm
DTSB-5000	250 - 5000 grams or cN	1 g or cN	117 mm	7, 10, 15, 20, 30, 41 mm
DTSB-10K	0.50 - 10.00 kg or daN	0.01 kg or daN	117 mm	7, 10, 15, 20, 30, 41 mm
DTSB-20K***	1.00 - 20.00 kg or daN	0.01 kg or daN	167 mm	7, 10, 15, 20, 30 mm
DTSB-30K***	1.50 - 30.00 kg or daN	0.01 kg or daN	217 mm	7, 10, 15 mm
DTSB-50K***	2.50 - 50 kg or daN	0.01 kg or daN	217 mm	7, 10 mm

Notes

* Factory calibration material textile ribbon or film, depending on tension range and roller width
** Outer distance between outside guide rollers
***Lever no longer required for high capacity models

line
Roller Guide
line

Roller Widths	Line Speed VMax ...M/Min	Roller Material*
7 mm	2000	Nickel-plated steel
10 mm	1000	Hard-coated aluminium
15 mm	1000	Hard-coated aluminium
20 mm	1000	Hard-coated aluminium
30 mm	1000	Hard-coated aluminium

Other roller materials (nickel-plated steel or plastic), as well as special coatings (Code CF – for carbon fibre, NAV optimized, Code KE – ceramic, Code AH – anti adhesive) are available on request.
