Measuring Range: 0.5 - 100.0 grams or cN

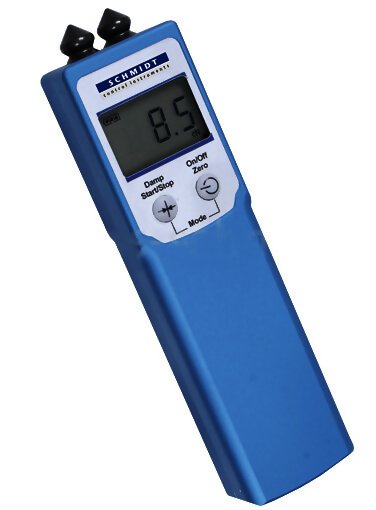

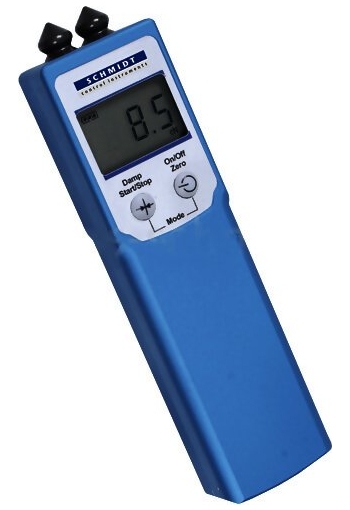

The PT-100 digital tension meter is designed for measurement of low tensions of fibers, yarns. etc. typically found on circular knitting machines etc.

It is battery-powered and pocket-sized for convenient storage and features and extremely small measuring head for applications with limited access space

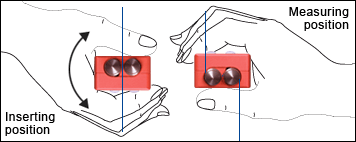

It uses a unique 180 degree material wrap to provide for accurate readings while the machine is in operation. Easy Slide-In material threading by cone shaped guide roler and turning the instrument 180 degrees.

Kit Contents

PT-100 Circular Knitting Tension Meter AC adapter with 3 country adapters (EU/USA/UK) Instruction Manual Carrying Case

Features

• Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
• Adjustable electronic damping provides a more steady value as compared to constantly fluctuation tension values
• V-Grooved Ball-bearing guide rollers with measuring head width of 24 mm (outer distance of guide rollers)
• Rollers are hard coated aluminum for speeds up to 2,000 m/min
• Compact aluminum housing is rugged and features an easy to read LCD Display
• NIST-Traceable Calibration Certificate & Test Report is optionally available
• User-set measuring units of Grams or cN and can be used in right or left hand as desired
• Rechargeable battery provides approx. 40 hours of continuous use
• Each instrument is individually calibrated for highest accuracy and is CE Certified

Specifications

Ranges
