PT-100-L Pocket Tension Meter for Circular Knitting

See More Tension Meters, Digital
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description

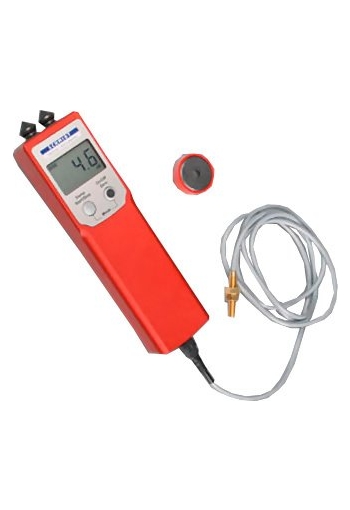

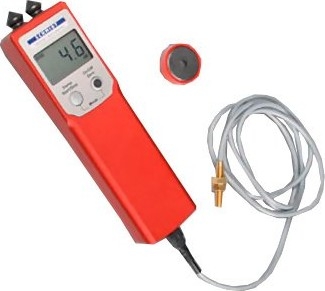

Pocket tension meter for low tension measurements of fibers, yarns etc. on circular knitting machines, as well as speed and length measurements.
Measuring ranges 0.5 - 100.0 g

Electronic pocket tension meter for measuring low tensions of fibres, yarns. etc. Mostly used on circular knitting machines etc.

Hand-held device with small measuring head for applications with limited access space

Handy tension meter with low weight


line

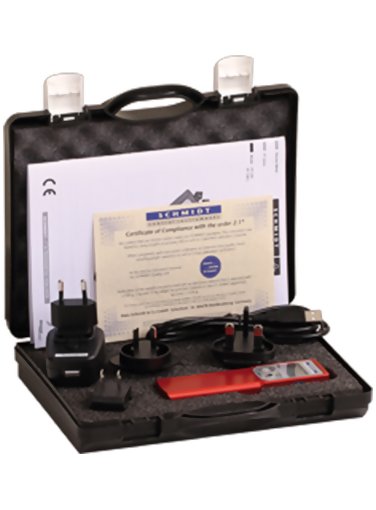

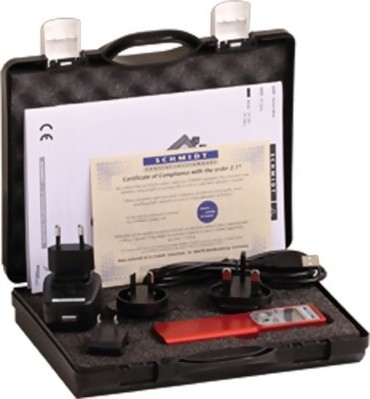

Kit Contents
line

  • PT-100-L Pocket Tension Meter for Circular Knitting
  • AC adapter with 3 country adapters (EU/USA/UK)
  • Certificate of Compliance with the order 2.1 according EN 10204 free of charge
  • Instruction Manual
  • Carrying Case


line
Features
line

  • Automatic »zero setting« in each measuring position
  • Adjustable electronic damping to provide steady tension readings

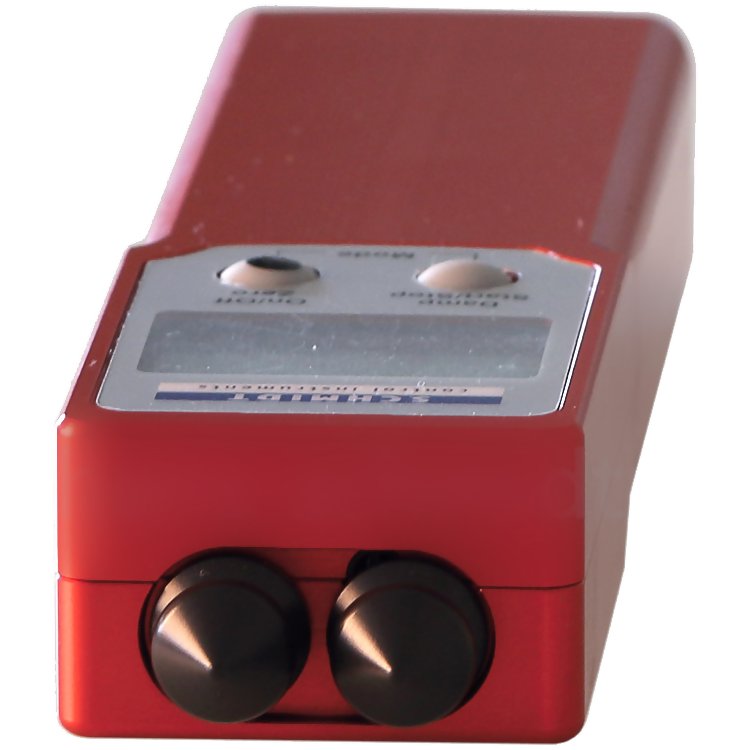

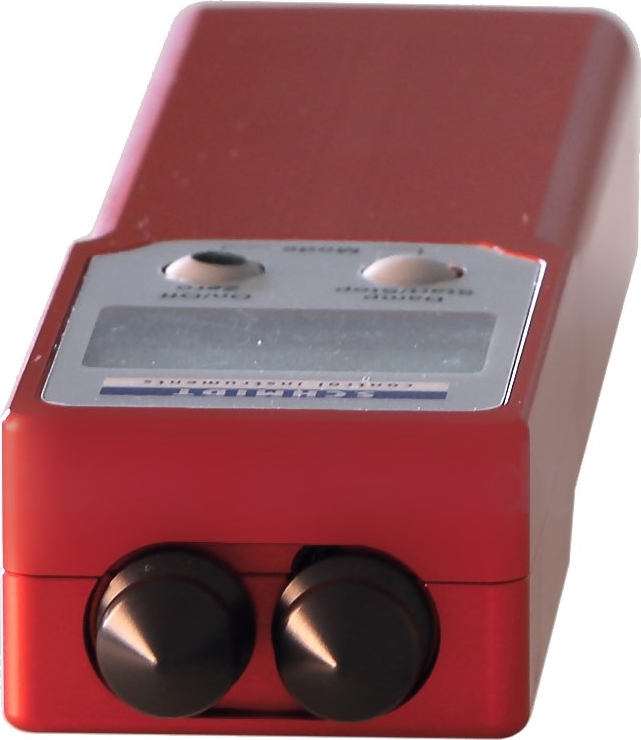

  • Ball-bearing mounted, V-groove guide roller
  • Measuring head width 24 mm (outer distance of guide rollers)
  • Tension meter with small, compact aluminum housing
  • Tension meter with easy to read LCD display
  • CE proofed, interference resistance about static charge
  • Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report (tension only)
  • Can be used for right and left hand use
  • When the series of measurement ends, the average value can be displayed
  • Switchable measuring units cN, g, m/min, in/min, m and in
  • Rechargeable LiPo battery (approx. 40 h continuous use)
  • Easy one hand operation
  • Each instrument is individually calibrated for highest accuracy
  • Certificate of compliance with the order 2.1 according DIN EN 10204 is included


line
Specifications
line

Accuracy±1.5 % full scale ±1 digit | Length measuring: ±0.5 % and ±1 digit
Overload protection200% full scale
Measuring unitscN, gr, m/min, in/min, m, in switchable
Measuring principleStrain gauge bridge
DampingAdjustable electronic damping, averaging
DisplayLCD 3 ½ digits, 9 mm high
Display update rate2 times per second
Auto power offAfter 3 minutes off non use
Temperature range10 - 45 ºC
Air humidity85 % RH, max.
Power supplyLiPo accumulator (approx. 40 h continous use, charging time approx. 3.5 h) and AC adapter 100 - 240 V AC with country adapters (EU/USA/UK)
Housing materialAluminium
Dimensions141 x 36 x 22 mm (LxWxH)
Weight, net (gross)Approx. 170 g (approx. 500 g)


line
Ranges
line

ModelPT-100-L
Range0.5 - 100.0 cN
Measuring Range Speed0 - 1999 m/min
Measuring Range Length0 - 1999 m
Calibration MaterialPA: 0.12 mm Ø
