8 Ranges
0 - 100g up to 0 - 4,000g

The applications for these universal transducers are many and varied. They will be found both in the laboratory and in producing textiles, wire, cable, tire cord, carbon fibers and magnetic tapes.

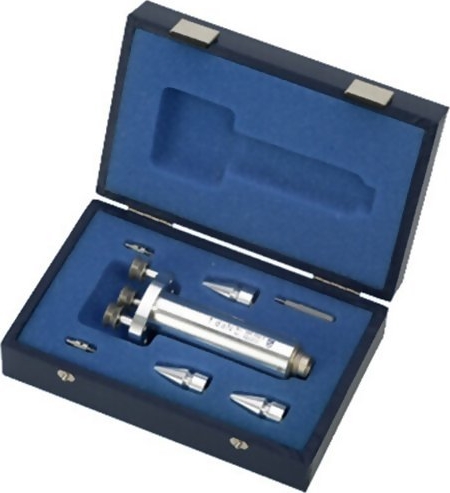

Kit Contents

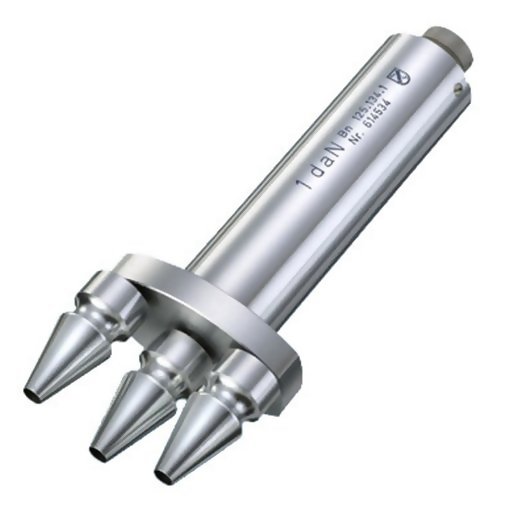

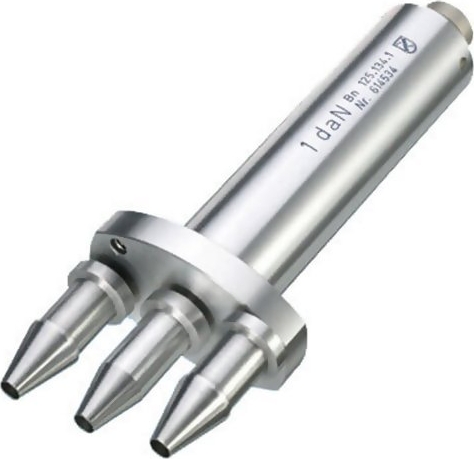

125-13 Precision Tension Meter Case

Features

• For measuring textiles, wires, cables, tire cords, magnetic tapes, carbon fibres etc.

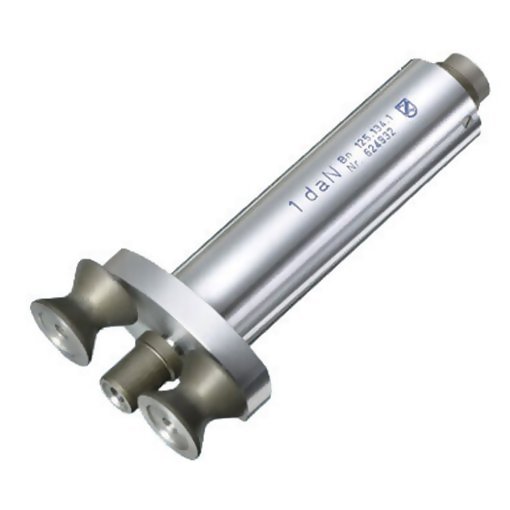

• 3 aluminium v-groove pulleys, easy running ball bearings

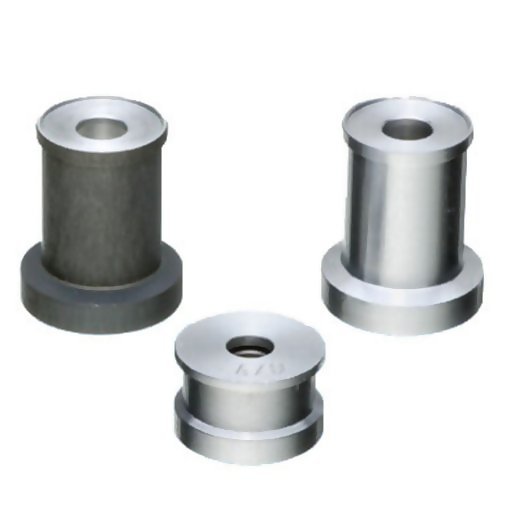

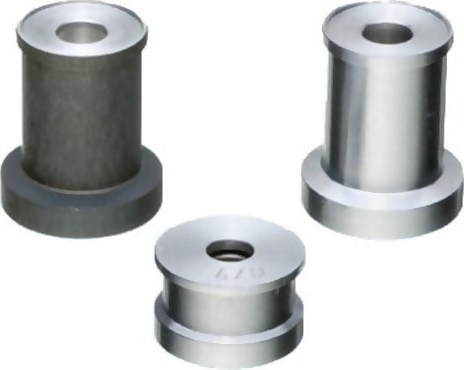

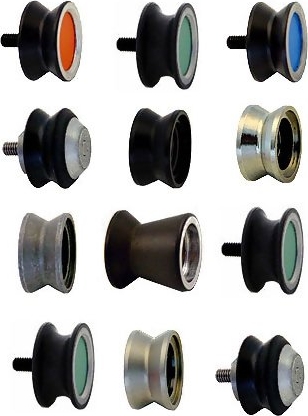

• Customized rollers available

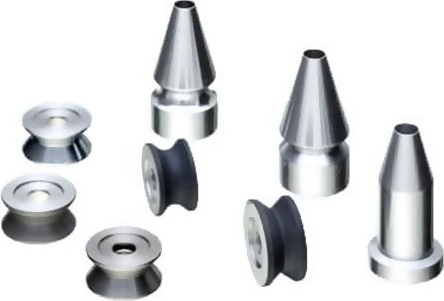

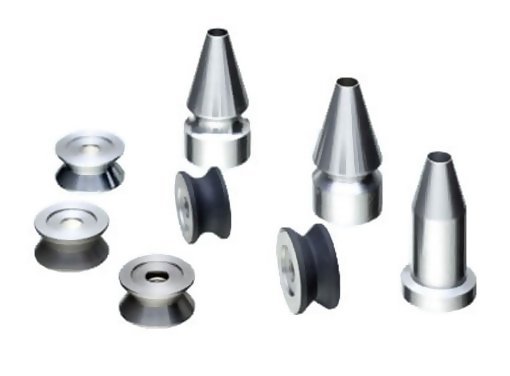

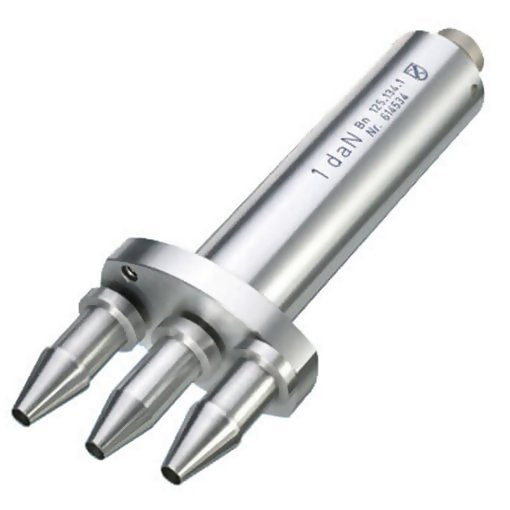

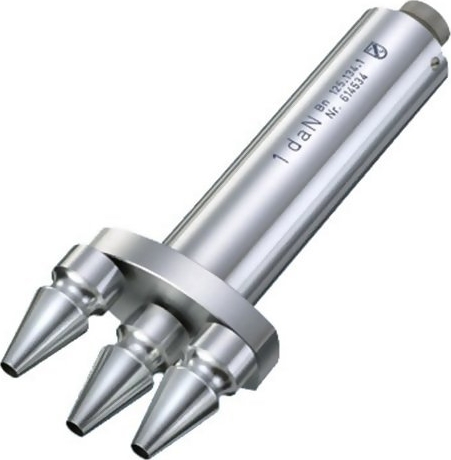

• Changeable rollers
• For measurement of monofilament textiles, industrial yarns, carbon fiber, copper and steel wires up to 0.5mm ø, woven tapes, belts, magnetic tapes
• Measuring ranges: 50cn to 5000cn
• Excellent long-term stability for highly reproducible measuring results
• Small wrap angle (15°) for minimum interaction with the product being measured

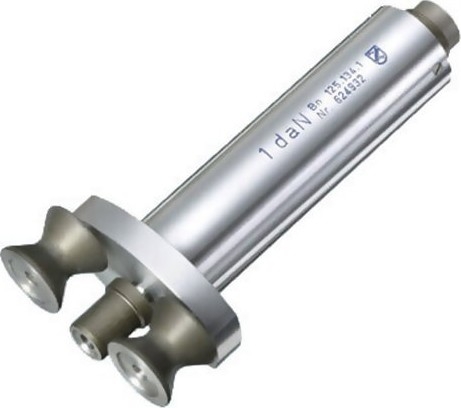

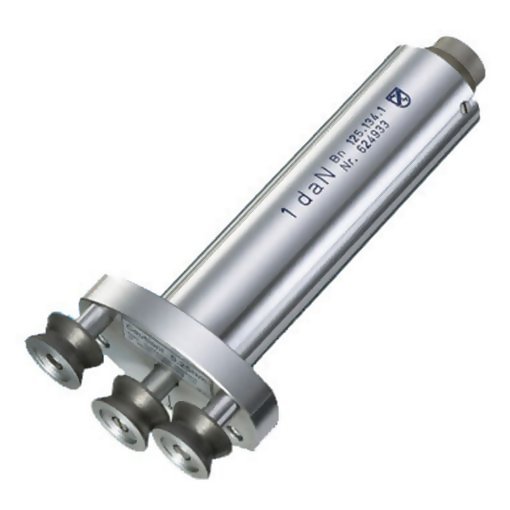

• 3 ball-bearing aluminium pulleys with v-groove, root diameter 11mm with easy-running bearings
• Interchangeable rollers

Shiftable thread guiding device FFA for 125-13

• Comfortable, easy threading into the running process
• For smooth threading, gentle to the material

Related Products

D-485 Digital Tension Indicator with Built-In Amplifier Convenient one-hand operation Tension values can scaled to a wide variety of engineering units Automatic zero setting and Hold function with slide-switch Averaging Mode (0.5 sec interval)

TM-353 Analog Tension Indicator with Built-In Amplifier Zero adjustment compensates for all measurement positions Provides 0-1 VDC analog output for recording purposes Three amplification settings are user-selected to provide maximum display resolution

Downloads

125-13 Precision Tension Meter - Dimensional Drawing
