Product Description

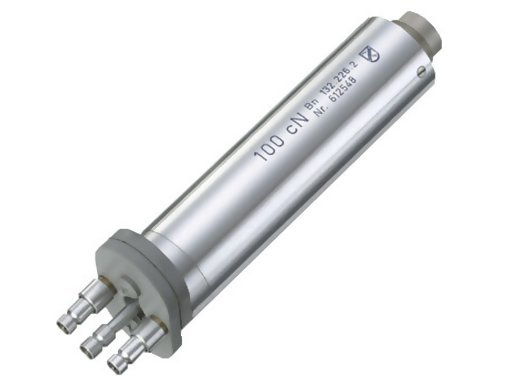

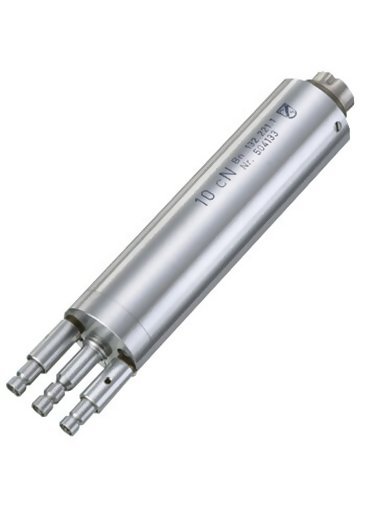

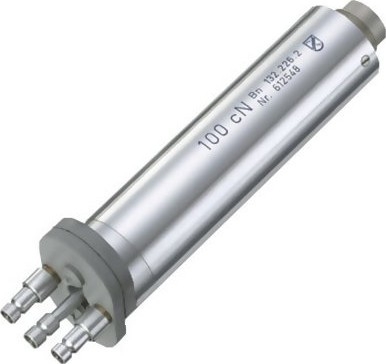

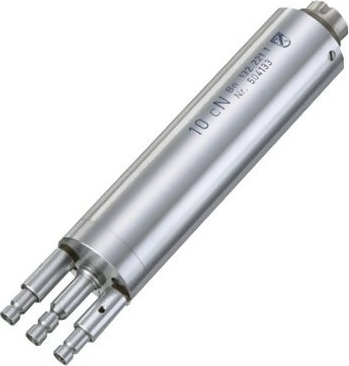

Precision Tension Meter
7 up to 300 g

The 132 series tension meters are equipped with easy-turning guides, running on ball bearings, were developed especially to measure tensile forces in fine, sensitive and elastic materials


line

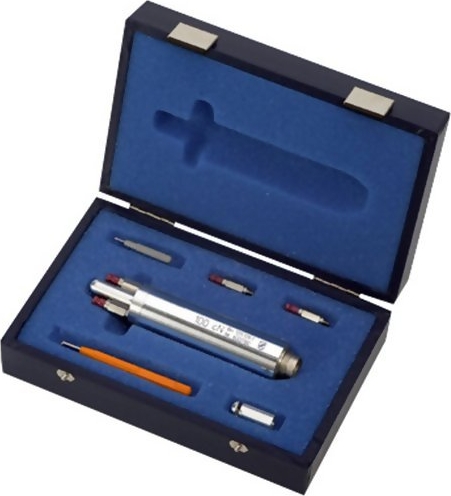

Kit Contents
line

  • 132 Precision Tension Meter
  • Case


line
Features
line

  • For measuring sensitive and elastic yarns, rubber threads, healds, hollow fibers, fine wires and magnetic tapes.
  • Very small deflection angle of 15°.
  • Minimum parasitic influences on the product being measured
  • Reproducible measuring results even when dealing with difficult products such as elastic strands and rubber thread.
  • For speeds up to 1200 m/min.
  • 3 ball-bearing aluminium rollers with V-groove, root diameter 2mm.
  • Minimum deflection of the product being measured


line
Ranges
line

ModelRange ModelRange
132-100 - 10g132-1000 - 100g
132-200 - 20g132-2000 - 200g
132-300 - 30g132-3000 - 300g


line
Related Products
line

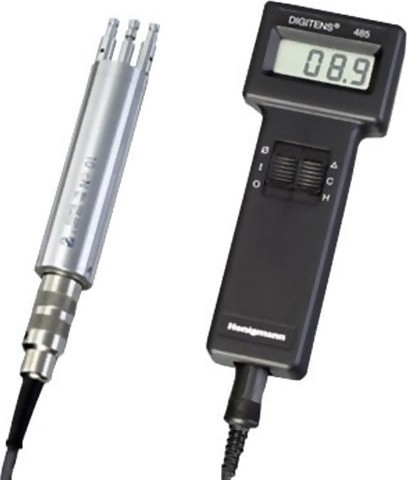

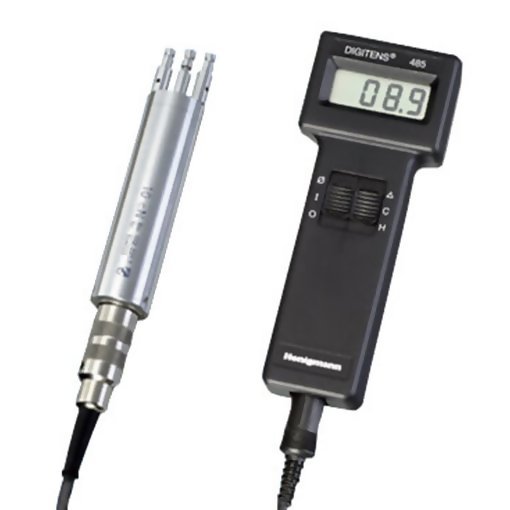

D-485
