Felt Tension Meter
Measuring Range: 0-120 pli
Measures the running tension of dryer felts, forming fabrics
Measuring Range: 0-120 pli or 0.5-200 N/cm
The Bareiss FTM Felt Tension Meter provides a fast and accurate method for measuring the running tension of dryer felts, forming fabrics and press felts used in the papermaking process. These elements can be referred to as a sieve, screen, or wire.
It is designed to be used by operators or service technicians to help set the appropriate tensions needed for the highest performance and lowest wear. It can be used while the material is running or stationary and can be used in any orientation.

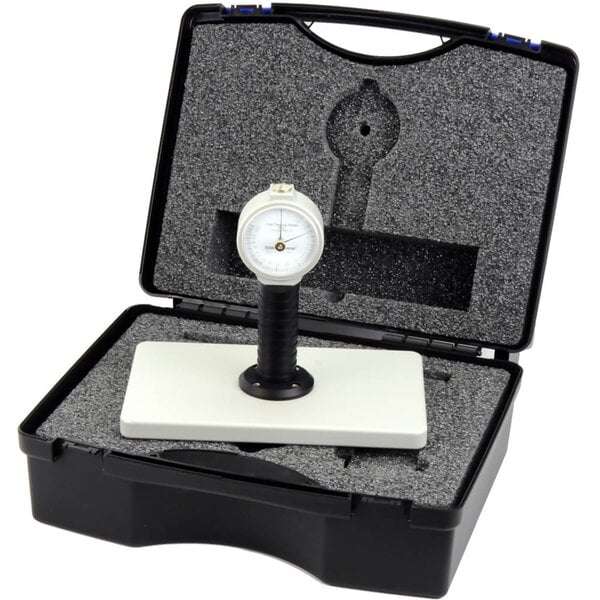

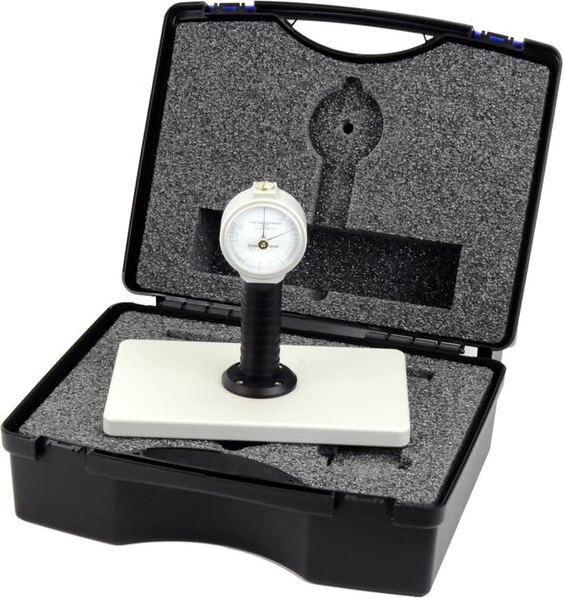

Kit Contents
- Bareiss FTM Felt Tension Meter
- Carrying Case
Features
- IP 64 Rated (splash proof)
- Memory Pointer holds the peak measurement

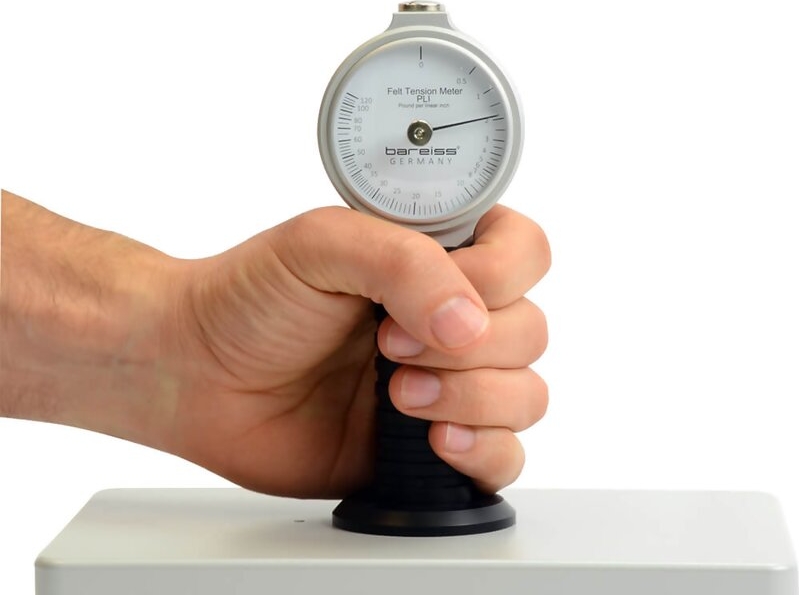

- One-hand Operation provides for operator safety
- Works in any orientation
- Optional units of measure offered is N/cm
Specifications
| Measuring Range | 0-120 pli (standard) | 0.5-200 N/cm (optional) |
| Dimensions | 9.1 x 5.5 x 8.3 in / 230 x 140 x 210mm |
| Weight | 2.56 lb / 1.16 kg |
