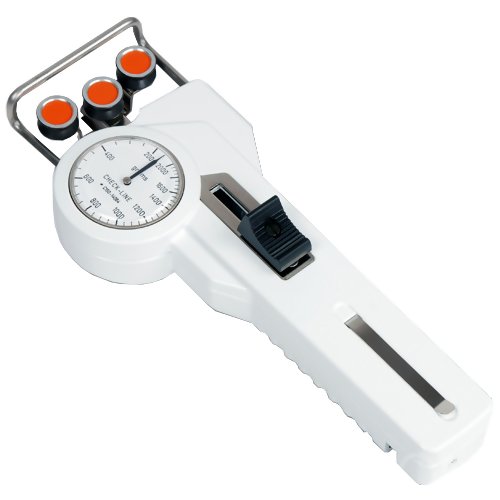

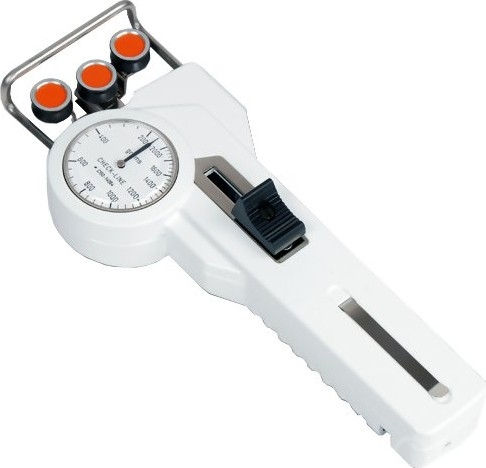

DX2 Tension Meter

See More Tension Meters, Mechanical

Ultra-Reliable, General Purpose

10 ranges, 5-50 g up to 5-50 kg

Handy Rugged Metal Housing

A precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2 ideal for the toughest production floor application.

Built-in mounting holes permit fixed installation for continuous in-line use.

Built-in material thickness compensator maximizes accuracy when using filaments of different diameters. (Standard on model DX2-SP and higher ranges)

line
Kit Contents
line

DX2 Tension Meter
Instruction manual

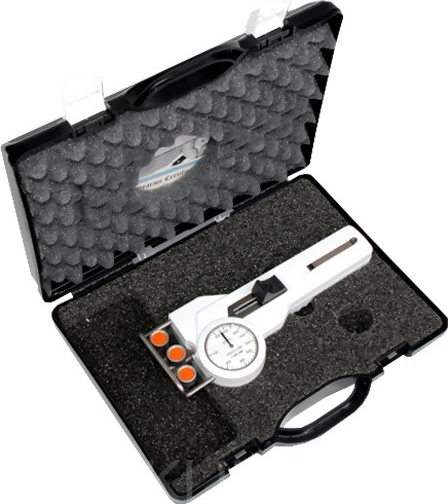

Carrying case

line
Features
line

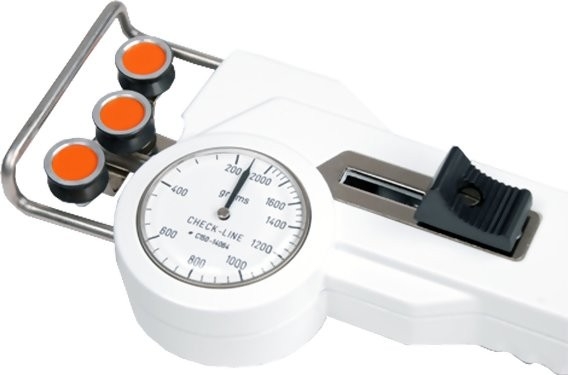

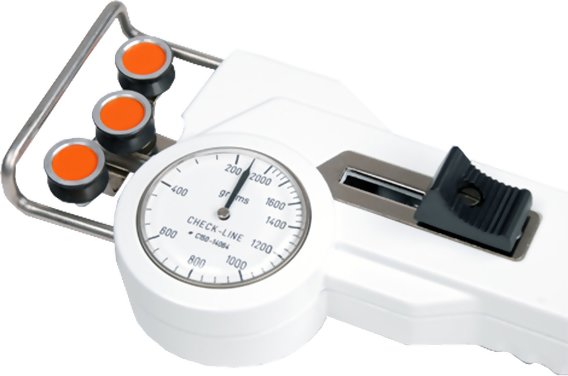

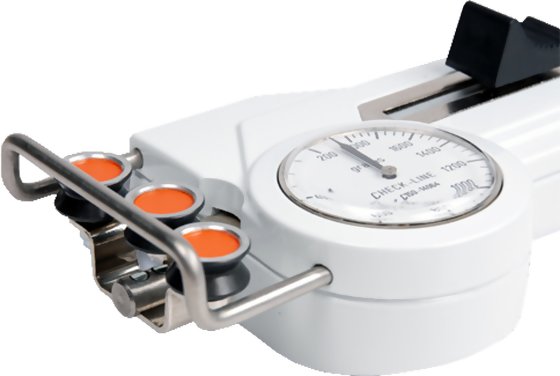

Thumb-operated, roller shifting mechanism and exclusive snare-guide automatically guides the moving filament into the V-grooves eliminating breaks and snags.
Front filament loading permits the operator to observe running material, rollers and dial face at all times.
DX2's are individually calibrated for highest accuracy.
NIST calibration available
DX2's hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min.
Finger Support: We recommend mounting a finger support for higher tension ranges (included)

line
Specifications
line

Accuracy	± 1% of full scale or ± 1 graduation mark on scale
Diameter of Scale	41 mm
Maximum Speed	2000 m/min (standard) 3500 m/min (K) 5000 m/min (HS)
Outer roller distance, c:c	DX2-5 to DX2-EX: 38 mm DX2-200 to DX2-1k: 100 mm DX2-2K: 150 mm DX2-3K to DX2-5K: 250 mm
Roller Material	Hard-coated aluminum (standard) Hardened steel (ST) Chromed Steel (w) Ceramic (CE) Plastic (PL)
Housing Material	Die-cast aluminum
Dimensions	225 x 90 x 44 mm (8.6" x 3.5" x 1.7")

line
Thread Guides
line

Model	Range	Outer Roller Spacing c:c	Calibration Material	Thickness Compensator
DX2-3	3-30 g	38 mm	PA: 0.12 mm Ø	NA
DX2-5	5-50 g	38 mm	PA: 0.12 mm Ø	NA
DX2-12	20-120 g	38 mm	PA: 0.12 mm Ø	NA
DX2-20	20-200 g	38 mm	PA: 0.12 mm Ø	NA
DX2-40	20-400 g	38 mm	PA: 0.20 mm Ø	NA
DX2-SP	50-1000 g	38 mm	PA: 0.30 mm Ø	Standard
DX2-EX	100-1000 g	38 mm	PA: 0.30 mm Ø	Standard
DX2-200	200-2000 g	100 mm	PA: 0.50 mm Ø	Standard
DX2-500	400-5000 g	100 mm	PA: 0.80 mm Ø	Standard
DX2-1K	2-10 Kg	100 mm	PA: 1.00 mm Ø	Standard
DX2L-2K	5-20 Kg	150 mm	PA: 1.50 mm Ø	Standard
DX2L-3K	5-30 Kg	250 mm		Standard
DX2L-5K	5-50 Kg	250 mm		Standard

line
Options
line

Air Damping (A)

An adjustable, precision air dashpot provides steady tension reading as tension fluctuate.

Lever (L)

A heavy duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 Kg or higher.
