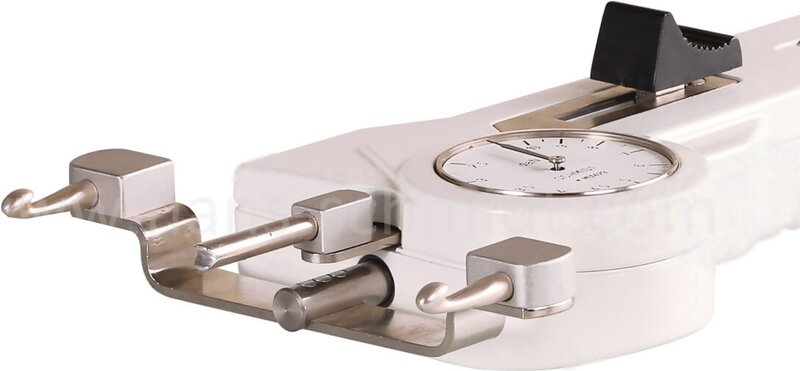

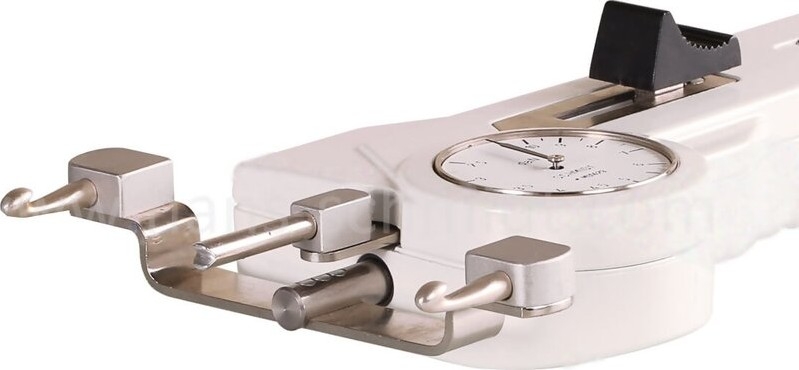

Tension meter with hooks instead of guide rollers

---

Special mechanical tension meter for applications where access space is limited or where filaments lie close together

---

3 Tension ranges from 400 - 5000 g to 5 - 20 kg

---

Special mechanical tension meter for applications where access space is limited or where filaments lie close together.

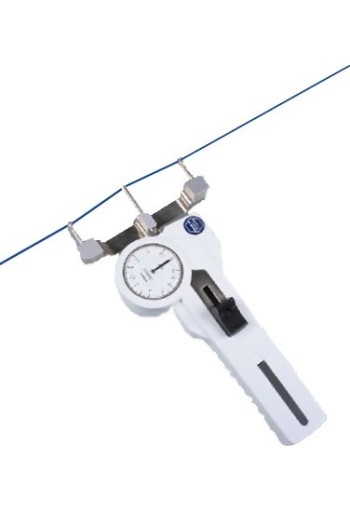

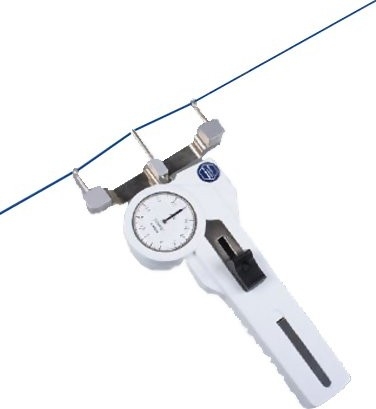

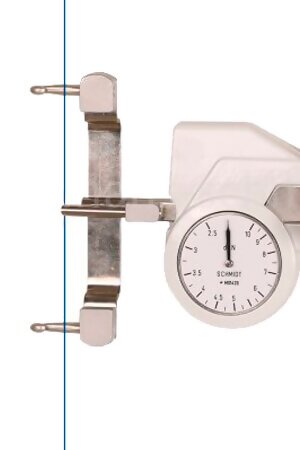

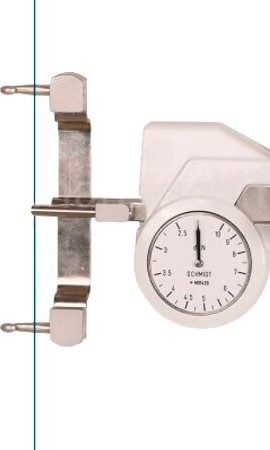

This hand-held unit is used for control measurements of pretensioned non running ropes and/or polyamide guitar strings.

Tension meter with hooks instead of guide rollers

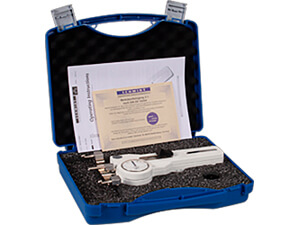

Kit Contents

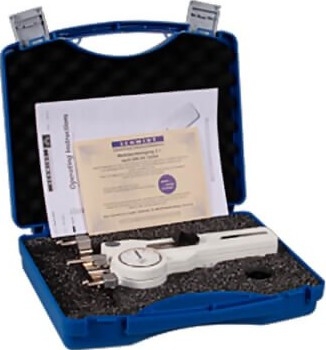

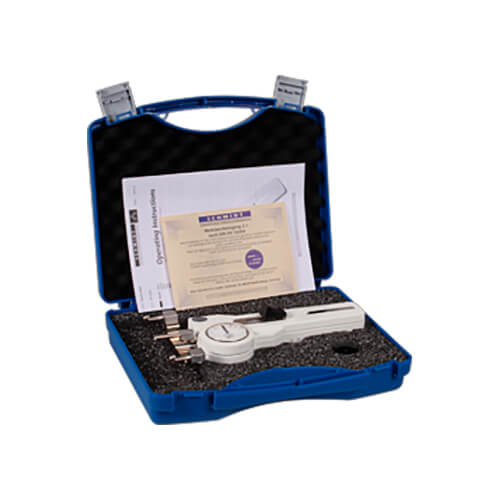

DX2H Tension Meter Certificate of compliance with the order 2.1 according EN 10204 free of charge Instruction manual Carrying case

Features

• For use in closed force systems
• Roller shifting mechanism ensure easy acquisition of the material
• Minimized bending of material
• Custom-built configurations and special calibration are available
• Special finger support located on the rear side reduces the effort to move the outer hooks

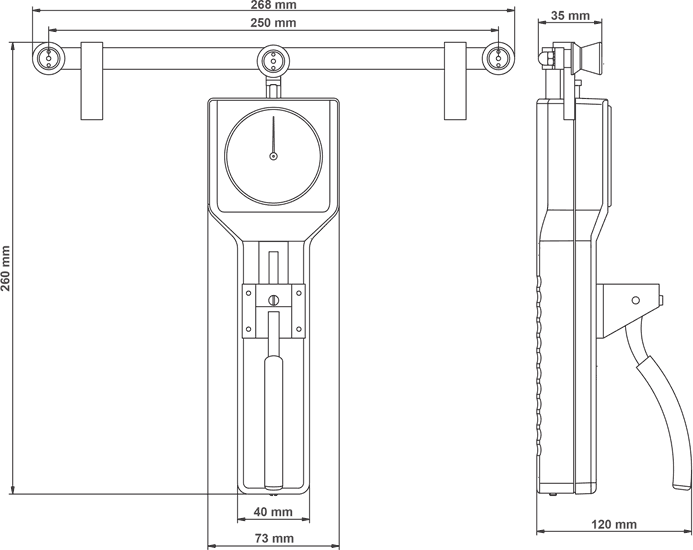

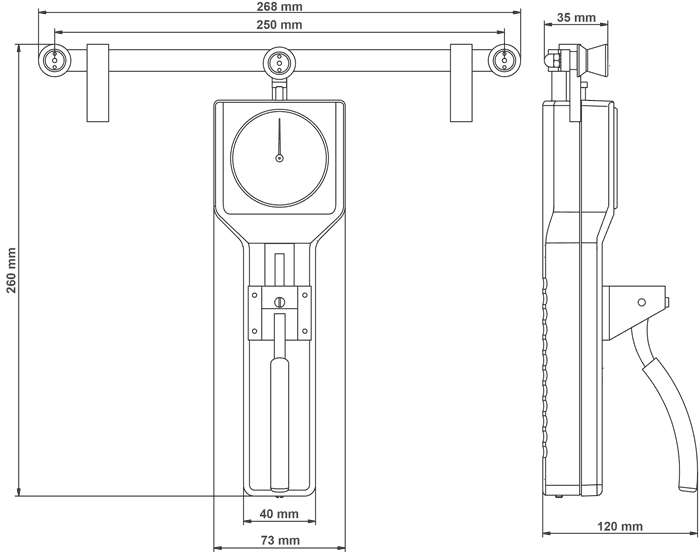

Specifications

Accuracy	±1 % full scale or ±1 graduation on scale
Scale diameter	41 mm
Temperature range	10 - 45 °C
Air humidity	85 % RH, max.
Housing material	Die-cast aluminium
Weight, net (gross)	DXH-5000 & DXH-10K approx. 470 g (1000 g) DXH-20K-L approx. 580 g (2000 g)

Ranges

DX2H-5000	400 g - 5000 g	116 mm
DX2H-10K	2.5 kg - 10 kg	116 mm
DX2H-20K-L	5 kg - 20 kg	116 mm
