Tension meter with hooks instead of guide rollers

---

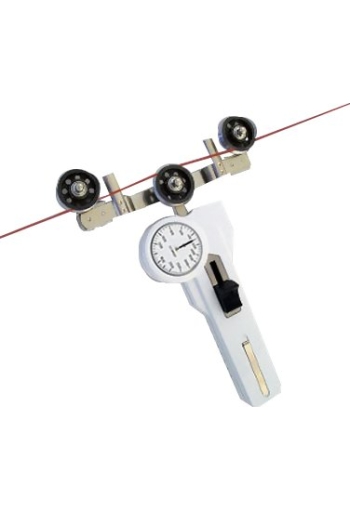

Tension meter with large rollers and a wide roller spacing for measuring optical fiber

---

Thumb-operated, roller shifting mechanism and exclusive snare-guide automatically guides the moving filament into the V-grooves eliminating breaks and snags

---

3 Tension Ranges from 200 - 2000 g to 2.5 - 10 kg

Mechanical tension meter with large rollers and a wide roller spacing for measuring optical fibres, cat cables, buffer tubes etc. up to 8 mm Ø

Hand-held unit with large guide rollers 29.5 mm groove diameter

Tension meter with special guides on the bracket assembly for easy thread

Finger Support: We recommend mounting a finger support for higher tension ranges

Note:This model does not include a material thickness compensator

Kit Contents

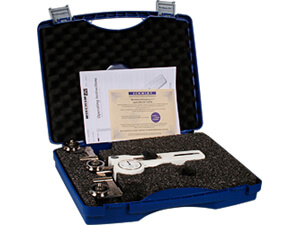

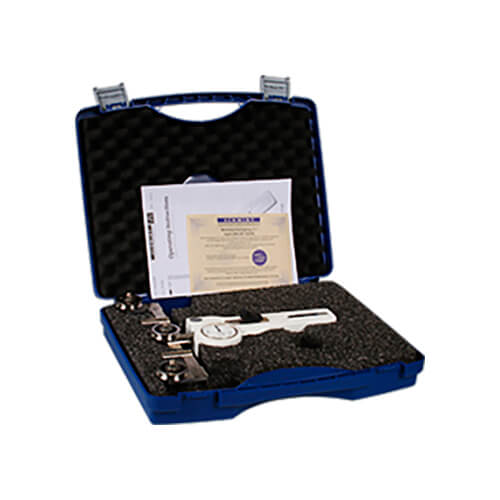

DXL Tension Meter With Large Rrollers And A Wide Roller Spacing Certificate of compliance with the order 2.1 according EN 10204 free of charge Instruction manual Carrying case

Features

• Thumb-operated, roller shifting mechanism and exclusive snare-guide automatically guides the moving filament into the V-grooves eliminating breaks and snags.
• NIST calibration available
• Large bending radius assures gentle handling of the material being measured
• Front filament loading permits the operator to observe running material, rollers and dial face at all times.
• The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment

Specifications

Accuracy	±1 % full scale or ±1 graduation on scale
Scale diameter	41 mm
Temperature range	10 - 45 °C
Air humidity	85 % RH, max.
Housing material	Die-cast aluminium
Housing dimensions	188 x 85 x 45 mm (LxWxH)
Weight, net (gross)	Approx. 640 g (1100 g)

Ranges

DXL-2000	200-2000 grams	235 mm
DXL-5000	400-5000 grams	235 mm
DXL-10K	2.5 - 10 kilograms	288 mm

Options

Air Damping (A) (for tension range from 20 - 400 g up to max. 400 - 5000 g) This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines. This assures steady tension readings on scale.

Memory Pointer (M) Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial.

Guide Rollers

Order Code	Line Speed Vmax...m/min	Roller Material
Standard	4000	Hardened-steel
Code R1	4000	Hardened-steel (radius R5)

Downloads

DXL Tension Meter With Large Rrollers and a Wide Roller Spacing - Dimensional Drawing
