DXN High Precision Tension Meter

See More Tension Meters, Mechanical

DXN High Precision Tension Meter

See More Tension Meters, Mechanical
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
High Precision
12 ranges, 5-50 g up to 5-50 Kg
Large linear dial face

12 ranges, 5-50 g to 5-50 Kg

A precision movement with high over-load capacity provides highest accuracy and long lasting calibration


line
Kit Contents
line

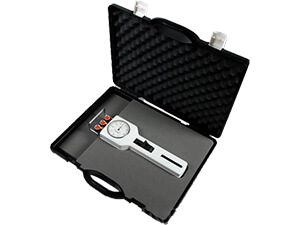

  • DXN High Precision Tension Meter

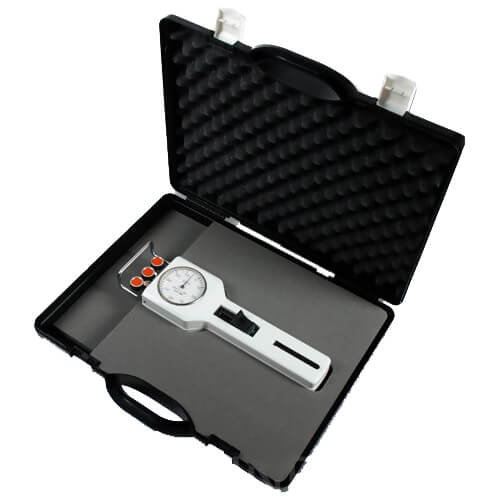

  • Carrying case


line
Features
line

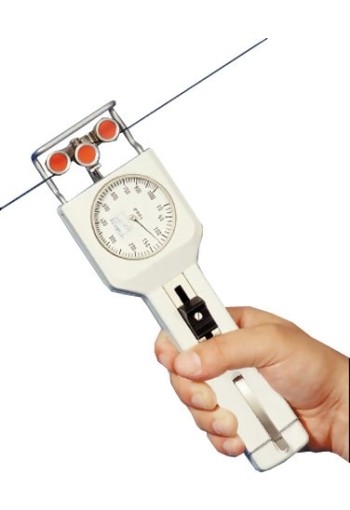

  • Large, linear scale for higher reading accuracy over the entire range.
  • Material thickness compensation on all high range models.
  • DXN's are individually calibrated for highest accuracy.
  • Choice of guide rollers for filament speeds up o 5000 m/min.
  • Rugged die-cast aluminum housing.
  • NIST calibration available


line
Specifications
line

Accuracy± 1% of Full Scale or ± 1 graduation mark on scale
Diameter54 mm (2.13")
Maximum Speed(standard) 2000 m/min
(optional) 3500 m/min (K)
(optional) 5000 m/min (U)
Outer roller distance, c:cDXN-30 to DXN-1000 EX - 38 mm
DXN-2000 to DXN-10K - 100 mm
DXN-20K - 200 mm
DXN-30K to DXN-50K - 250 mm
Roller MaterialHard-coated aluminum (standard)
Hardened steel (ST)
Ceramic (CE)
Phenolic (PH)
Housing materialDie-cast aluminum
Dimensions260 x 72 x 44 mm
(10.2" x 2.8" x 1.7")
Weight700 g (1.5 lbs.), approx


line
Ranges
line

ModelRange ModelRange
DXN-505-50 gDXN-2000200-2000 g
DXN-12010-120 gDXN-5000400-5000 g
DXN-20010-200 gDXN-10K*2-10 Kg
DXN-40010-400 gDXN-20K*5-20 Kg
DXN-100050-1000 gDXNL-30K**5-30 Kg
DXN-1000EX100-1000 gDXNL-50K**5-50 Kg
*10K and 20K models lever optional
**30K and 50K models include lever


line
Options
line

Air Damping (A): An adjustable, precision air dashpot provides steady tension readings for those applications where high tension fluctuations exist

Lever (L): A heavy-duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 K higher.

High Speed Rollers: (K) For speeds up to 3500 m/min (U) For speeds up to 5000 m/min.


line
Downloads
line

DXN High Precision Tension Meter - Instruction Manual
DXN High Precision Tension Meter - Data Sheet
